Valve Clearance Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION .)
  4. Remove the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION .)
  5. Remove the ventilation hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  6. Disconnect the camshaft position (CMP) sensor connector.
  7. Disconnect the oil control valve (OCV) connector.
  8. Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION .)
  9. Set the front mudguard (RH) out of the way. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  10. Remove the splash shield (RH).
  11. Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  12. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  13. Remove the engine front cover lower blind plug.
    Fig 1: Engine Front Cover Lower Blind Plug
    G06150065Courtesy of MAZDA MOTORS CORP.
  14. Remove the engine front cover upper blind plug.
  15. Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way. (ATX) (See DRIVE SHAFT REMOVAL/INSTALLATION .)
    Fig 2: Engine Front Cover Upper Blind Plug
    G07620321Courtesy of MAZDA MOTORS CORP.
  16. Remove the cylinder block lower blind plug, and install the SST  .
  17. Rotate the crankshaft in the direction of the engine rotation so that the No. 1 piston is at TDC of the compression stroke. (Until the counterweight contacts SST  and stops.)
    Fig 3: SST
    G07620322Courtesy of MAZDA MOTORS CORP.
  18. Loosen the timing chain using the following procedure.
    1. Insert a suitable bolt (M6 X 1.0, length 25-35 mm {0.99-1.3 in})  into the engine front cover upper blind plug and tighten it until it contacts the chain tensioner arm, and then rotate it back one turn. (Set the bolt slightly away from the chain tensioner arm so that it does not contact it.)
      Fig 4: Timing Chain Mounting Bolt With Torque Specifications
      G06150048Courtesy of MAZDA MOTORS CORP.
    2. Using the cast hexagon on the exhaust camshaft, apply force counterclockwise to facilitate unlocking the chain tensioner ratchet.
    3. Using a Hex bit socket (2.5 mm {0.098 in}) or T15 Tone bit socket, unlock the chain tensioner ratchet so that it can be lifted up.

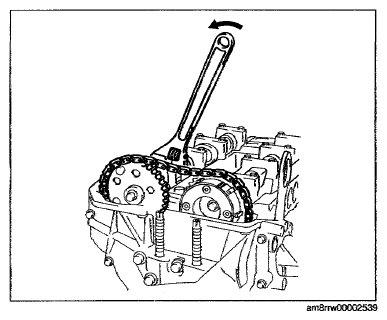

      Fig 5: Rotating Cast Hexagon Counterclockwise
      G07620324Courtesy of MAZDA MOTORS CORP.
      Fig 6: Unlocking Chain Tensioner Ratchet
      G06199771Courtesy of MAZDA MOTORS CORP.
    4. Using the cast hexagon on the exhaust camshaft, apply force in the direction of the engine rotation to increase tension on the chain.

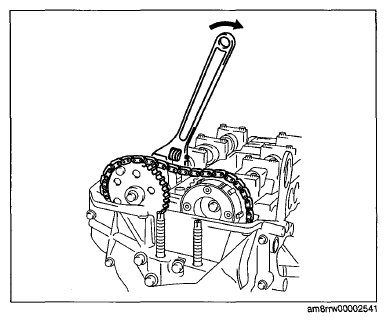

      Fig 7: Cast Hexagon Applied Force Direction
      G07620326Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • The chain tensioner rack is compressed using the chain tension generated by applying force to the exhaust camshaft in the direction of the engine rotation.
      NOTE:
      • The racket has not been unlocked if the bolt cannot be pressed in approx. 5 mm {0.2 in}.

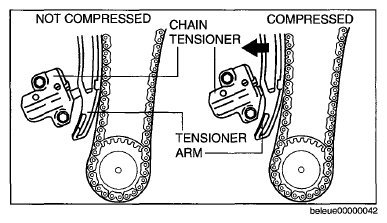

        Fig 8: Compressing Chain Tensioner Rack Using Chain Tension
        G07620327Courtesy of MAZDA MOTORS CORP.
    5. Screw in the bolt set in Step  1 approx. 5 mm {0.2 in} and secure the tensioner arm with the rack compressed.

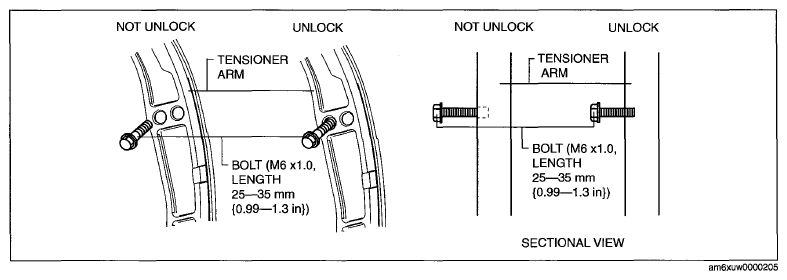

      Fig 9: Bolt Dimensions
      G07620328Courtesy of MAZDA MOTORS CORP.
      • If the tensioner arm cannot be secured, return the bolt to its original position and repeat the procedure from Step ( 3).
  19. Fix the exhaust camshaft using a wrench on the cast hexagon, and loosen the camshaft sprocket bolt.
    CAUTION:
    • Perform the work carefully so that the washer does not drop out.
      Fig 10: Fixing Exhaust Camshaft Using Wrench On Cast Hexagon
      G04859459Courtesy of MAZDA MOTORS CORP.
  20. Remove the exhaust camshaft sprocket bolt, exhaust camshaft sprocket, and washer as a single unit.
  21. Remove the OCV. (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION .)
    NOTE:
    • The camshaft caps are to be kept ordered for correct reassembly in their original positions. Do not mix the caps.
      Fig 11: Exhaust Camshaft Sprocket Bolt And Exhaust Camshaft Sprocket
      G06150055Courtesy of MAZDA MOTORS CORP.
  22. Loosen the camshaft cap bolts in two or three steps in the order shown in the illustration and remove the camshaft cap.
  23. Remove the camshafts for the intake and exhaust sides.
  24. Remove the tappet.
  25. Install an appropriate tappet based on the results of the valve clearance inspection.

    Selected tappet = Removed tappet thickness + Measured valve clearance - Standard valve clearance

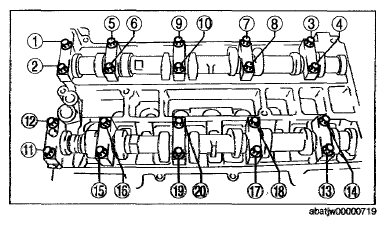

    Fig 12: Camshaft Cap Bolts Loosening Sequence
    G07620331Courtesy of MAZDA MOTORS CORP.

    Valve clearance [Engine cold]

    IN: 0.22-0.28 mm {0.003-0.011 in}

    EX: 0.27-0.33 mm {0.011-0.012 in}

  26. Verify that No. 1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST.  )

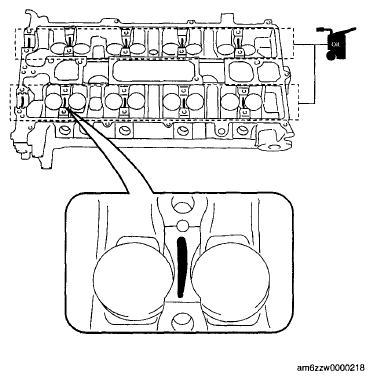

  27. Apply the gear oil (SAE No. 90 or equivalent) to each journal of the cylinder head as shown in the illustration.
  28. With No. 1 cylinder cam aligned at TDC of the compression stroke, install the variable valve timing actuator and the camshaft on the intake air side as a single unit.
    Fig 13: Variable Valve Timing Actuator
    G06199778Courtesy of MAZDA MOTORS CORP.

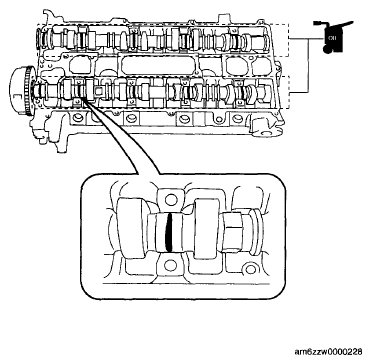

  29. Apply the gear oil (SAE No. 90 or equivalent) to each journal of the camshaft as shown in the illustration.
  30. Temporarily tighten the camshaft cap bolts evenly in 2-3 steps.
    Fig 14: Camshafts Journal
    G06199779Courtesy of MAZDA MOTORS CORP.
  31. Tighten the camshaft cap bolts in the order shown in the following two steps.

    Tightening procedure

    1. 5.0-9.0 N.m {51-91 kgf.cm, 45-79 in.lbf}
    2. 14-17 N.m {1.5-1.7 kgf.m, 11-12 ft.lbf
  32. Install the OCV. (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION .)
    CAUTION:
    • Install a washer to the fourth or fifth thread of the exhaust camshaft sprocket bolt being careful not to drop the washer.
    • Do not tighten the camshaft sprocket bolt at this stage. Verify the valve timing before performing the bolt tightening.

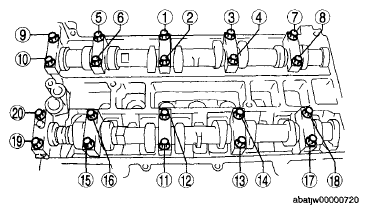

      Fig 15: Camshaft Cap Bolts Tightening Sequence
      G06199780Courtesy of MAZDA MOTORS CORP.
  33. Install the exhaust camshaft sprocket bolt, exhaust camshaft sprocket, and a new washer as a single unit.
    Fig 16: Exhaust Camshaft Sprocket Bolt, Exhaust Camshaft Sprocket And Washer
    G06199781Courtesy of MAZDA MOTORS CORP.
  34. Install the SST  on the camshaft as shown in the illustration.
  35. Remove the installation bolt for the engine front cover upper blind plug (M6 X 1.0 length 25-35mm {1.0-1.3 in})  , and apply tension to the timing chain.
    Fig 17: Installing SST On Camshaft
    G06199782Courtesy of MAZDA MOTORS CORP.
  36. Fix the exhaust camshaft using a wrench on the cast hexagon, and tighten the sprocket bolt.

    Tightening torque 69-75 N.m {7.1-7.6 kgf.m, 51-55 ft.lbf}

  37. Remove the SST  from the camshaft.
  38. Remove the SST  installed in the cylinder block lower blind plug hole.
  39. Rotate the crankshaft clockwise two turns and inspect the valve timing.
    • If not aligned, loosen the camshaft sprocket bolt and repeat the procedure from Step  34.
  40. Install the cylinder block lower blind plug.
    Fig 18: Fixing Exhaust Camshaft Using Wrench
    G06150062Courtesy of MAZDA MOTORS CORP.

    Tightening torque 18-22 N.m {1.9-2.2 kgf.m, 14-16 ft.lbf}

  41. Connect the drive shaft (RH) to joint shaft. (ATX) (See DRIVE SHAFT REMOVAL/INSTALLATION .)
    Fig 19: Cylinder Block Lower Blind Plug
    G06199784Courtesy of MAZDA MOTORS CORP.
  42. Apply the silicone sealant and install the engine front cover upper Wind plug.
    CAUTION:
    • install the engine front cover upper blind plug before the applied silicone sealant starts to harden.

    Tightening torque 8-11 N.m {82-117 kgf.cm, 71-101 in.lbf)

    Fig 20: Engine Front Cover Upper Blind Plug
    G06199785Courtesy of MAZDA MOTORS CORP.
  43. Install a new engine front cover lower blind plug.

    Tightening torque 10-14 N.m {102-142 kgf cm, 89-123 in.lbf}

    Fig 21: Engine Front Cover Lower Blind Plug
    G06150065Courtesy of MAZDA MOTORS CORP.
  44. Install the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  45. Install the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  46. Install the splash shield (RH).
  47. Install the front mudguard (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  48. Install the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION .)
  49. Connect the OCV connector.
  50. Connect the CMP sensor connector.
  51. Install the ventilation hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  52. Install the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION .)
  53. Install the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION .)
  54. Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  55. Connect the negative battery cable.
