Ignition Coil Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable.
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

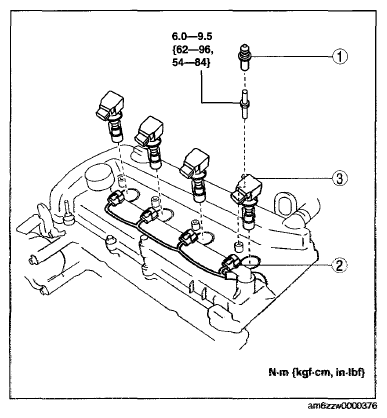

PARTS REFERENCE CHART
| 1 | Plug hole plate bracket |
| 2 | Connector |
| 3 | Ignition coil |
