Plug Hole Plate Removal/Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Lift off and remove the plug hole plate from the installation areas as shown in the illustration.
  1. Remove the plug hole plate in the order indicated in the illustration.
  2. Install the plug hole plate in the reverse order of removal.

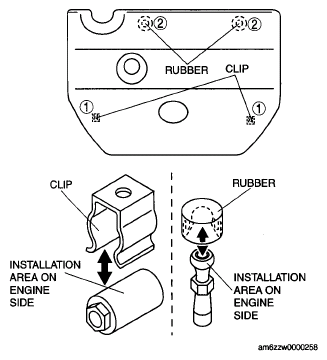

    Fig 1: Plug Hole Plate Removal Sequence
    G05543019Courtesy of MAZDA MOTORS CORP.
