Front Mudguard Removal/Installation

  1. Remove screws A and tab B, and set the front mudguard out of the way in the direction of the arrow shown in the illustration.

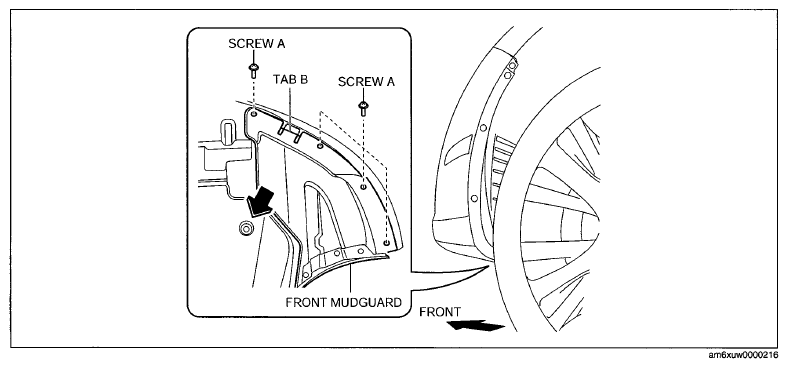

    Fig 1: Removing Front Mudguard Screws A And Tab B
    G07622225Courtesy of MAZDA MOTORS CORP.
  2. Remove fasteners C, E, F and screws D.

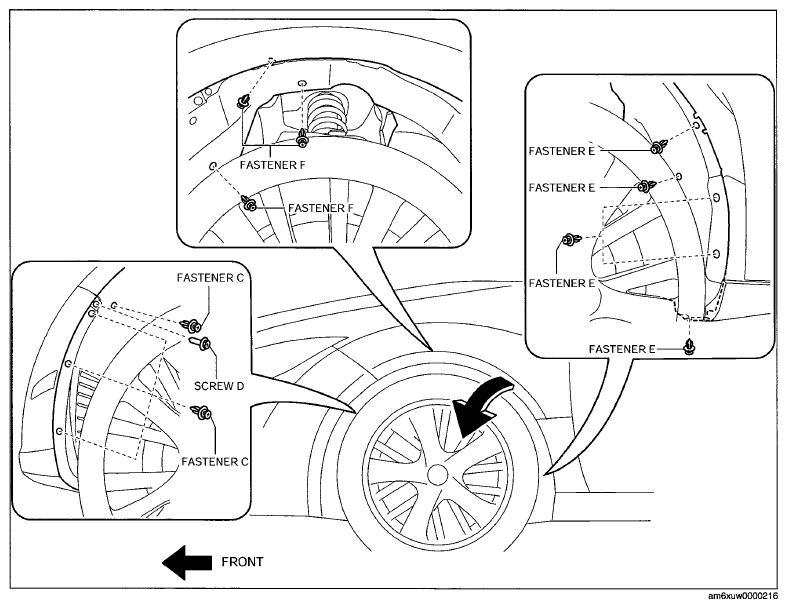

    Fig 2: Removing Front Mudguard Fasteners C, E, F And Screws D
    G07622226Courtesy of MAZDA MOTORS CORP.
  3. Remove the front mudguard in the direction of the arrow shown in the illustration.
  4. Install in the reverse order of removal.
