Removal [09/2023 - 12/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
  2. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    for T24A-FTS Gasoline Model:

    Refer to PROCEDURE - Step 3

    for T24A-FTS 1Motor-HEV Model:

    Refer to PROCEDURE - Step 2

  6. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [09/2023 - 12/2023]

  8. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

    Refer to PROCEDURE - Step 11

  9. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12

  10. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 9

  11. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 33

  12. REMOVE CENTER PILLAR LOWER GARNISH BELT HOLE COVER LH

    Refer to PROCEDURE - Step 34

  13. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  14. REMOVE DECK SIDE TRIM COVER LH

    Refer to PROCEDURE - Step 36

  15. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 13

  16. REMOVE DECK TRIM POCKET COVER
    Refer to PROCEDURE - Step 38
  17. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 39

  18. REMOVE ROPE HOOK
    Refer to PROCEDURE - Step 40
  19. REMOVE ROPE HOOK ASSEMBLY
    1. Use the same procedure as for the rope hook.
  20. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 42

  21. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX (w/ Woofer)

    Refer to PROCEDURE - Step 16

  22. REMOVE REAR WHEEL LH

    Refer to REMOVAL [09/2023 - ]

  23. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [09/2023 - 12/2023]

  24. REMOVE REAR BUMPER SIDE SEAL LH

    Refer to PROCEDURE - Step 36

  25. REMOVE REAR WHEEL HOUSE LINER LH

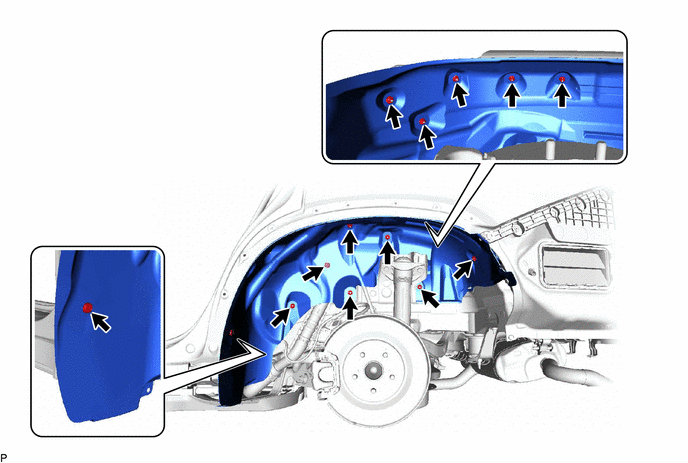

    1. GTY1228348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FUEL LID WITH MOTOR LOCK ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  27. REMOVE FUEL FILLER OUTER OPENING LID

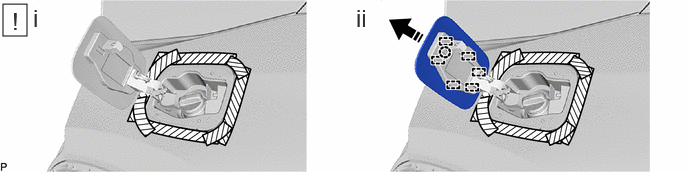

    1. GTY1236148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the fuel filler opening lid sub-assembly as shown in the illustration.
      2. Disengage the claw and 6 guides to remove the fuel filler outer opening lid as shown in the illustration.
  28. REMOVE FUEL TANK CAP ASSEMBLY

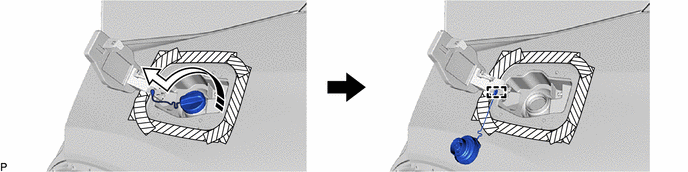

    1. GTY1228337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FUEL FILLER OPENING LID SUB-ASSEMBLY

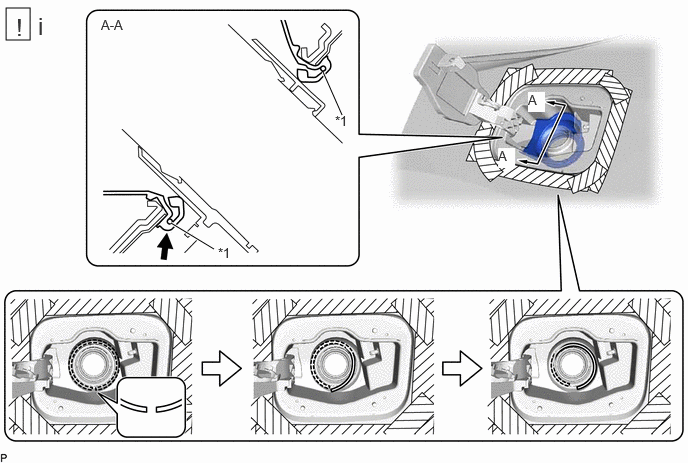

    1. GTY1232945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Inlet Box Ring - -
      Push - -
      1. Remove the fuel inlet box ring as shown in the illustration.

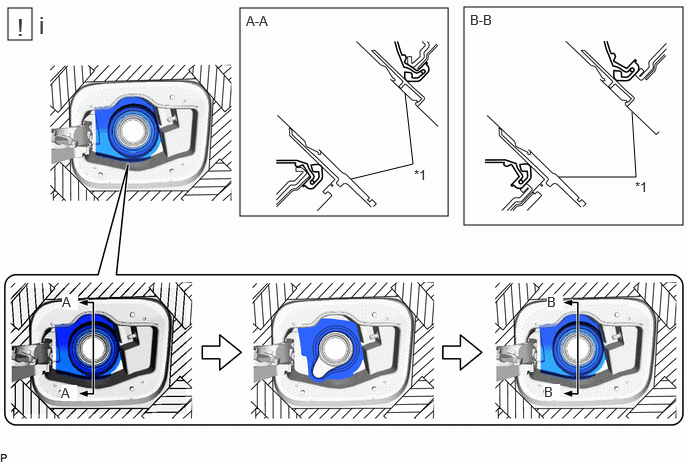

    2. GTY1235589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Tank Filler Pipe Assembly - -
      1. Disconnect the fuel filler opening lid sub-assembly from the fuel tank filler pipe assembly as shown in the illustration.

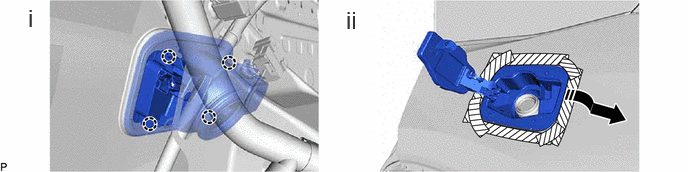

    3. GTY1229313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disengage the 4 claws.
      2. Remove the fuel filler opening lid sub-assembly as shown in the illustration.
