Removal [09/2023 - ]: Procedure

  1. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]

  2. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

    Refer to PROCEDURE - Step 11

  3. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12

  4. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 9 [12/2023 - ] , or refer to PROCEDURE - Step 9 [12/2023 - ]

  5. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 33

  6. REMOVE CENTER PILLAR LOWER GARNISH BELT HOLE COVER LH

    Refer to PROCEDURE - Step 34

  7. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 11 [12/2023 - ] , or refer to PROCEDURE - Step 11 [12/2023 - ]

  8. REMOVE DECK SIDE TRIM COVER LH

    Refer to PROCEDURE - Step 36

  9. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 13 [12/2023 - ] , or refer to PROCEDURE - Step 13 [12/2023 - ]

  10. REMOVE DECK TRIM POCKET COVER
    Refer to PROCEDURE - Step 38
  11. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 39

  12. REMOVE ROPE HOOK
    Refer to PROCEDURE - Step 40
  13. REMOVE ROPE HOOK ASSEMBLY
    1. Use the same procedure as for the rope hook.
  14. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 42

  15. REMOVE REAR WINDOW SIDE GARNISH LH

    Refer to PROCEDURE - Step 44

  16. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX

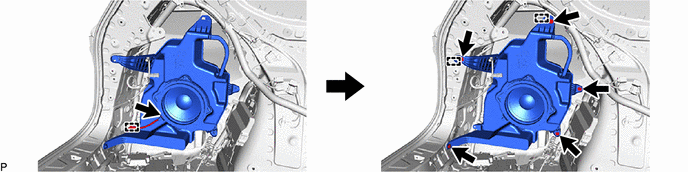

    1. GTY1233122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
