Removal [09/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:
    • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

      Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]

    • When replacing the battery, use a new battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.

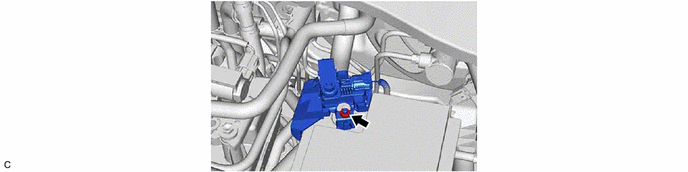

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. GTY1194908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

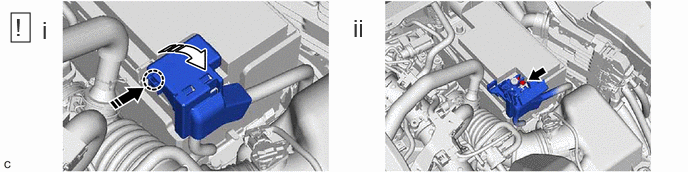

  3. DISCONNECT CABLE FROM POSITIVE BATTERY TERMINAL
    1. GTY1230570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Open
      1. Push the claw to release the lock, and then open the connector cover.
      2. Loosen the nut and disconnect the cable from the positive (+) battery terminal.
  4. REMOVE NO. 2 BATTERY CLAMP
    1. GTY1133219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

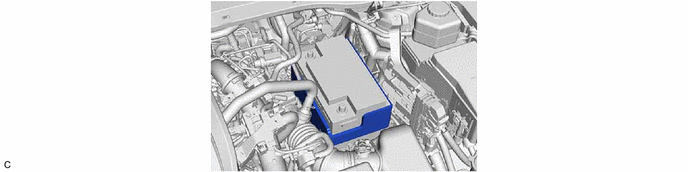

  5. REMOVE BATTERY INSULATOR
    1. GTY1236856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

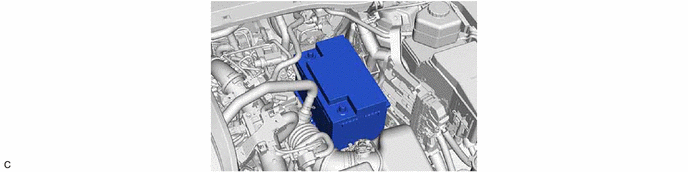

  6. REMOVE BATTERY
    1. GTY1236855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
