Disassembly [09/2023 - ]: Procedure

  1. REMOVE KICK DOOR CONTROL SENSOR ASSEMBLY (w/ Kick Sensor)

    w/o Towing Hitch:

    Refer to PROCEDURE - Step 2

  2. REMOVE KICK DOOR CONTROL SENSOR WITH BRACKET (w/ Kick Sensor)
    1. w/ Towing Hitch:

      Refer to PROCEDURE - Step 3
  3. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 2

  4. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 3

  5. REMOVE REAR SIDE ULTRASONIC SENSOR (w/ Advanced Park)

    Refer to PROCEDURE - Step 4

  6. REMOVE REAR NO. 2 ULTRASONIC SENSOR CLIP (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 5

  7. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    Refer to PROCEDURE - Step 6
  8. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    Refer to PROCEDURE - Step 7
  9. REMOVE REAR SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
    Refer to PROCEDURE - Step 8

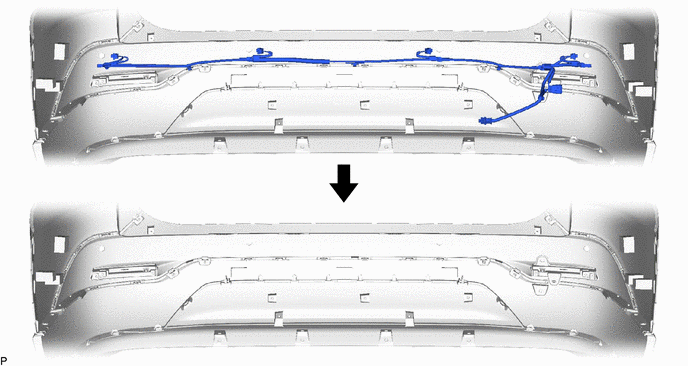

  10. REMOVE NO. 2 LUGGAGE ROOM WIRE

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1234843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

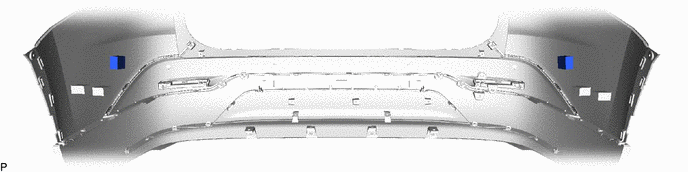

  11. REMOVE NO. 1 REAR BUMPER PAD
    1. GTY1234842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

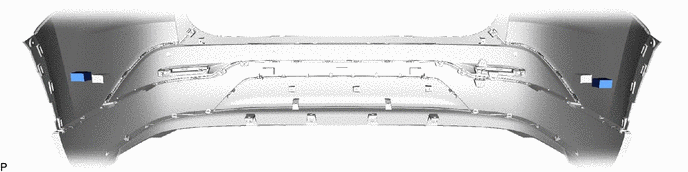

  12. REMOVE NO. 4 REAR BUMPER PAD
    1. GTY1234846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

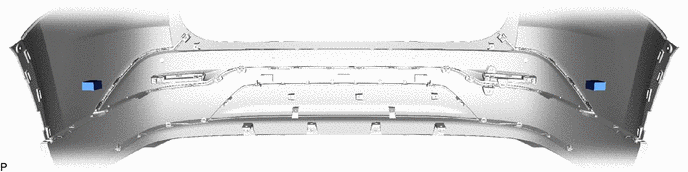

  13. REMOVE NO. 2 REAR BUMPER PAD
    1. GTY1240543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

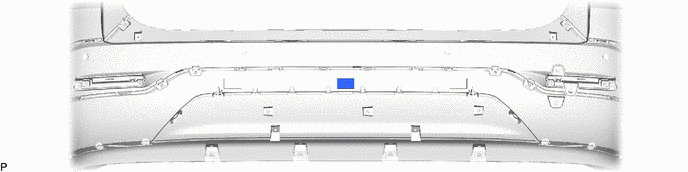

  14. REMOVE NO. 3 REAR BUMPER PAD
    1. for Type A:
      GTY1234812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

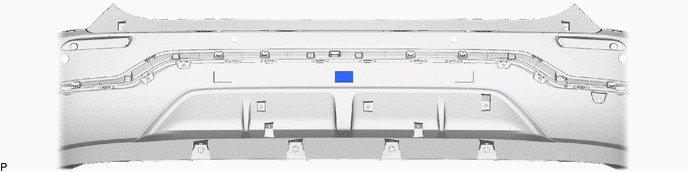

    2. for Type B:
      GTY1240536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

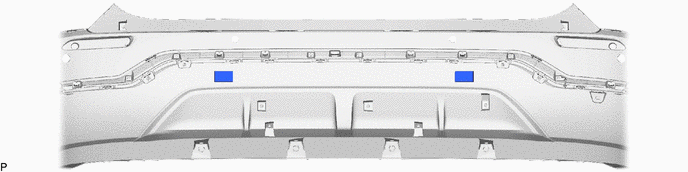

  15. REMOVE NO. 5 REAR BUMPER PAD

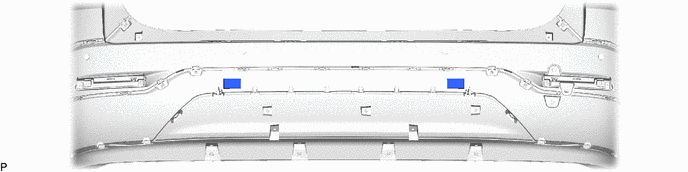

    1. for Type A:
      GTY1240538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Type B:
      GTY1234826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

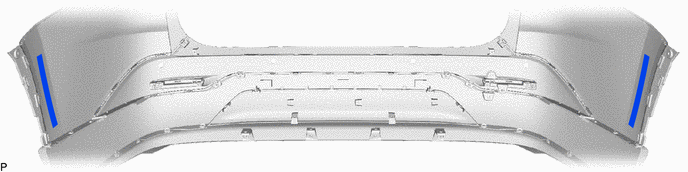

  16. REMOVE NO. 1 MOULDING TAPE
    1. GTY1234815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

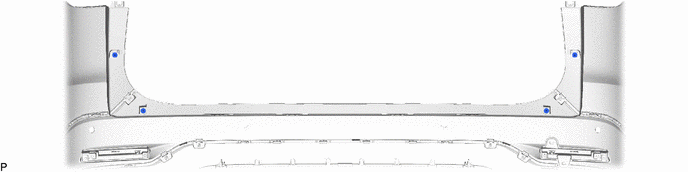

  17. REMOVE BACK DOOR GARNISH RETAINER
    1. GTY1234811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

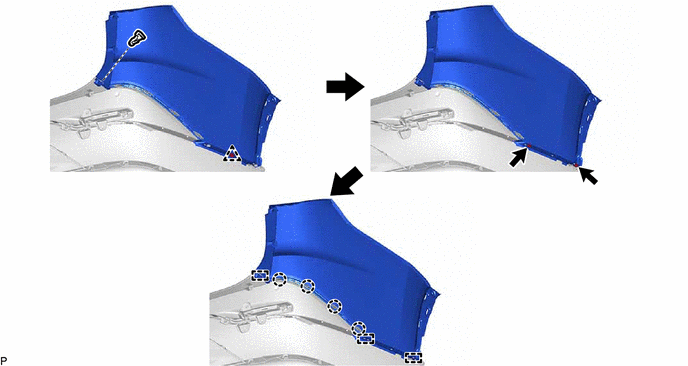

  18. REMOVE REAR BUMPER UPPER COVER LH

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1234810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR BUMPER UPPER COVER RH
    1. Use the same procedure as for the LH side.

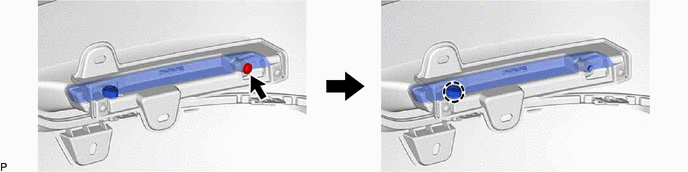

  20. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. for Type A:
      GTY1234807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

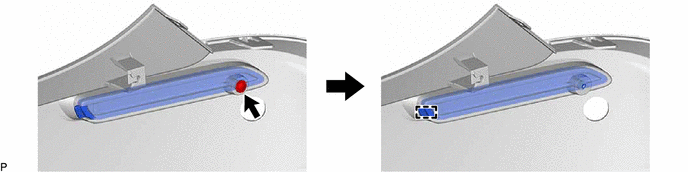

    2. for Type B:
      GTY1234824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REFLEX REFLECTOR ASSEMBLY RH
    1. Use the same procedure as for the LH side.

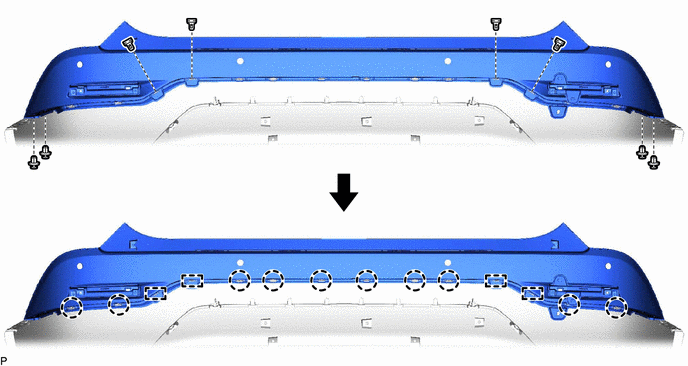

  22. REMOVE REAR BUMPER EXTENSION (except Sport Package)

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1234806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

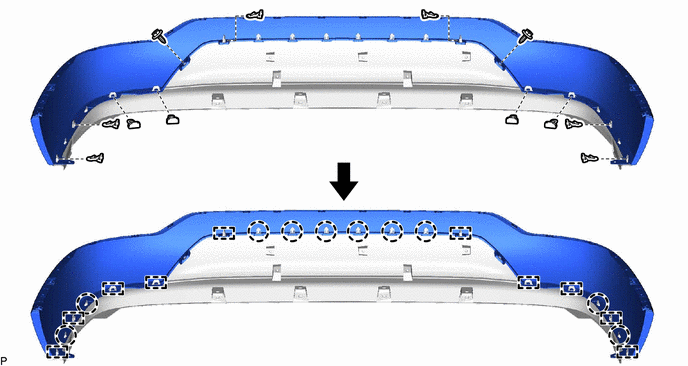

  23. REMOVE REAR BUMPER COVER (for Type A)
    1. GTY1234805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

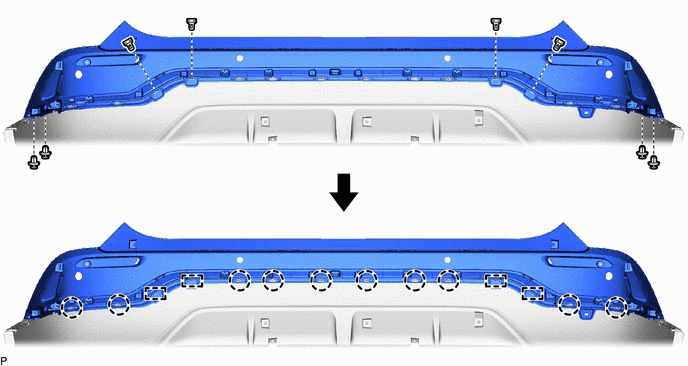

  24. REMOVE REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY (for Sport Package)

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1234823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

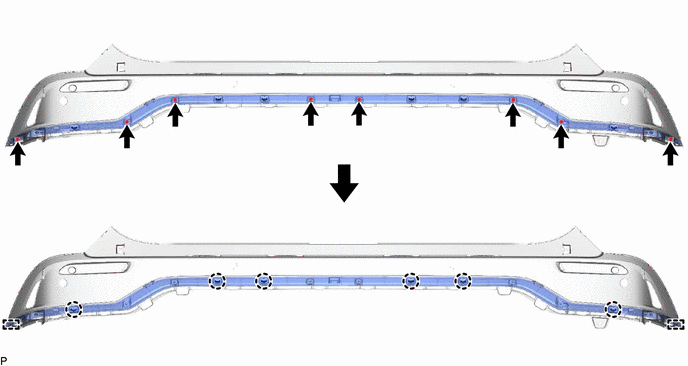

  25. REMOVE REAR BUMPER MOULDING (for Sport Package)
    1. GTY1234825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 2
  27. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  28. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE LH

    Refer to PROCEDURE - Step 4

  29. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE RH
    1. Use the same procedure as for the LH side.
  30. REMOVE BLIND SPOT MONITOR SENSOR LH
    Refer to PROCEDURE - Step 3
  31. REMOVE BLIND SPOT MONITOR SENSOR RH
    1. Use the same procedure described for the LH side.

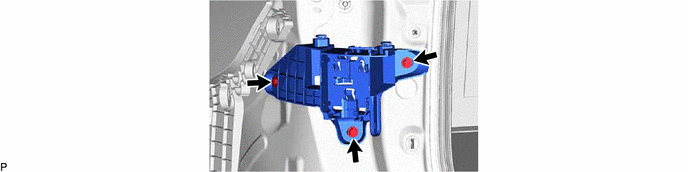

  32. REMOVE REAR BUMPER UPPER RETAINER LH

    HINT:

    Perform this procedure only when replacement of the rear bumper upper retainer is necessary.

    1. GTY1234804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE REAR BUMPER UPPER RETAINER RH
    1. Use the same procedure as for the LH side.

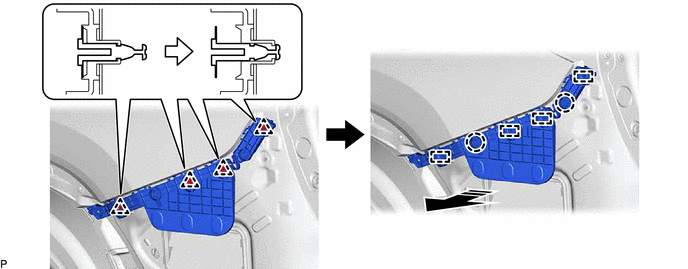

  34. REMOVE REAR BUMPER SIDE RETAINER LH

    HINT:

    Perform this procedure only when replacement of the rear bumper side retainer LH is necessary.

    1. GTY1239453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  35. REMOVE REAR BUMPER SIDE RETAINER RH
    1. Use the same procedure as for the LH side.

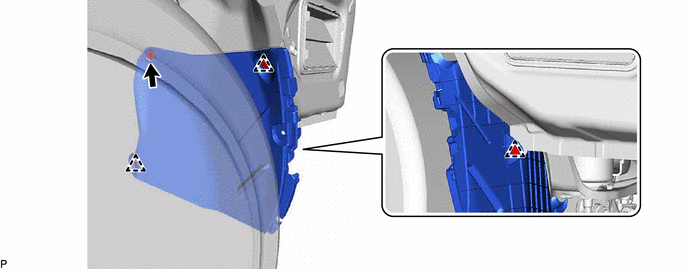

  36. REMOVE REAR BUMPER SIDE SEAL LH

    HINT:

    Perform this procedure only when replacement of the rear bumper side seal LH is necessary.

    1. GTY1234808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR BUMPER SIDE SEAL RH
    1. Use the same procedure as for the LH side.

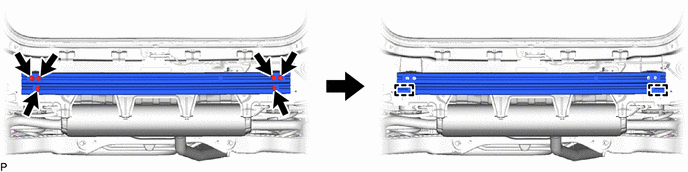

  38. REMOVE REAR BUMPER REINFORCEMENT

    HINT:

    Perform this procedure only when replacement of the rear bumper reinforcement is necessary.

    1. GTY1202495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

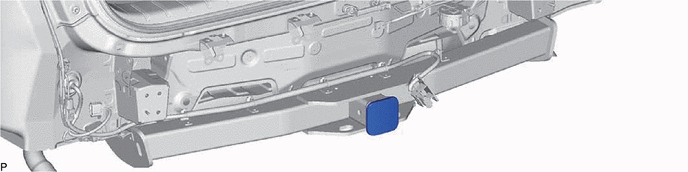

  39. REMOVE RECEIVER HITCH CAP (w/ Towing Hitch)
    1. GTY1195884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

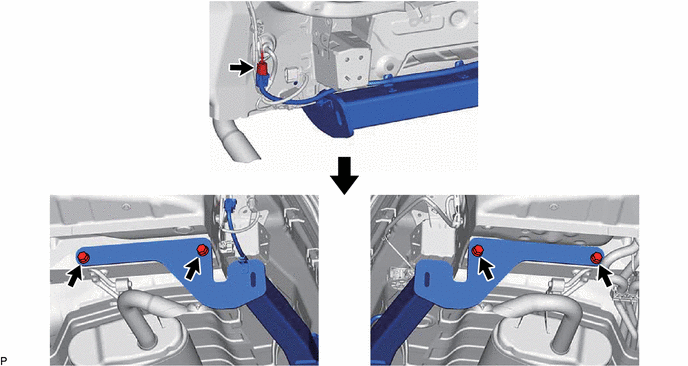

  40. REMOVE RECEIVER HITCH BRACKET SUB-ASSEMBLY (w/ Towing Hitch)
    1. w/o Activity Mount:
      GTY1195882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

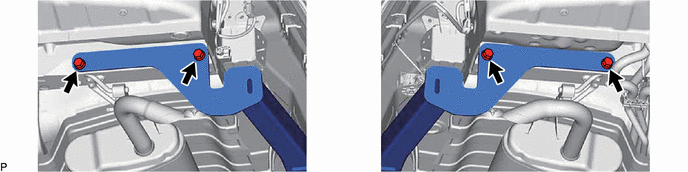

    2. w/ Activity Mount:
      GTY1196826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
