Removal [09/2023 - ]: Procedure

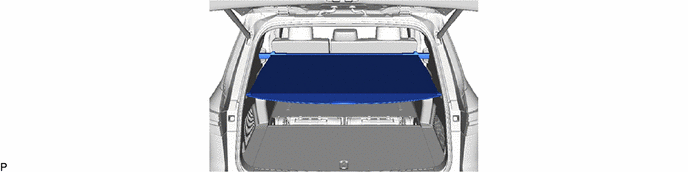

  1. REMOVE TONNEAU COVER ASSEMBLY
    1. GTY1228234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

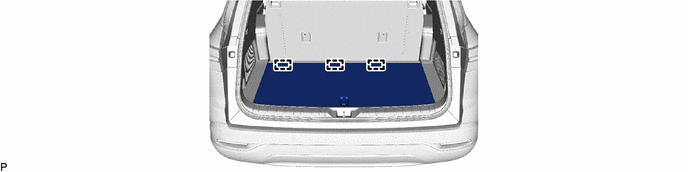

  2. REMOVE DECK BOARD ASSEMBLY
    1. GTY1228237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

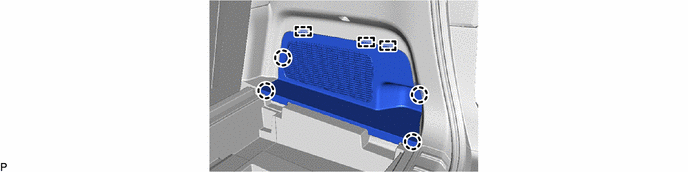

  3. REMOVE BATTERY SERVICE HOLE COVER
    1. GTY1239168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR DECK FLOOR BOX

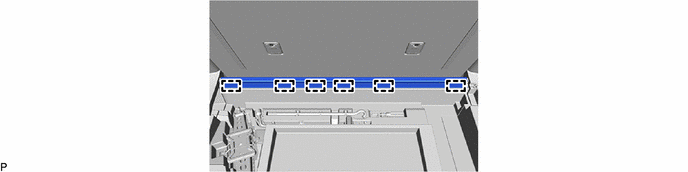

    1. GTY1228232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

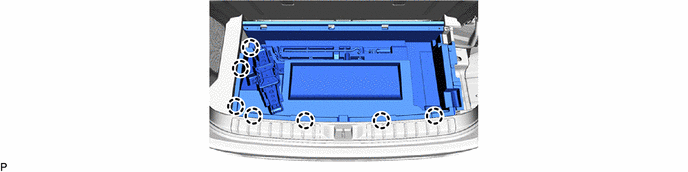

    2. GTY1228224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]

  6. REMOVE FRONT SEAT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  7. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

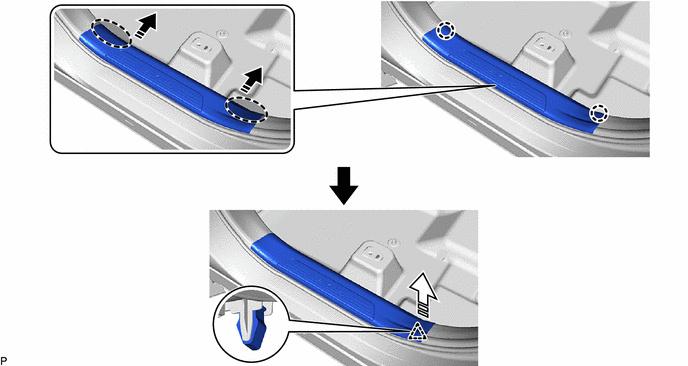

    1. GTY1228578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -

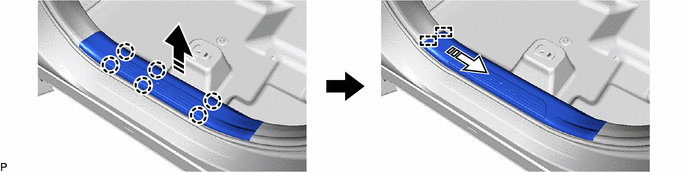

    2. GTY1230934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

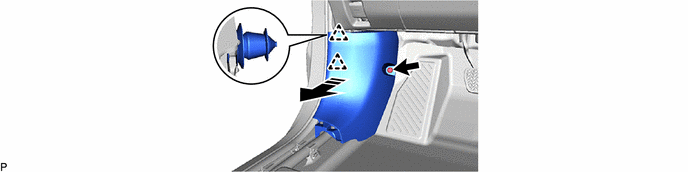

  8. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. GTY1233708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  9. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 3

  10. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

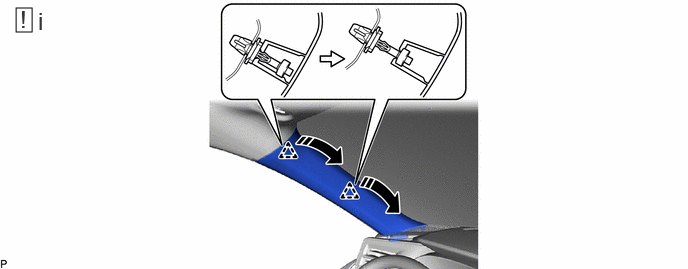

    1. GTY1236155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull in this Direction - -
      1. Pull the upper part of the front pillar garnish assembly LH toward the inside of the cabin as shown in the illustration to disengage the front pillar garnish assembly LH from the base of the 2 front pillar garnish clips.

        HINT:

        Let the front pillar garnish assembly LH hang from the 2 front pillar garnish clips.

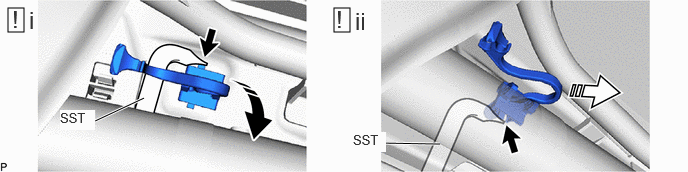

    2. GTY1239592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull in this Direction Pull in this Direction
      1. Pull down the front pillar garnish clip while pushing the side of the release lever with SST as shown in the illustration.
        • SST: 09813-00020
      2. While pulling the front pillar garnish clip, push the side of the release lever with SST as shown in the illustration and then separate the front pillar garnish clip from the vehicle body.

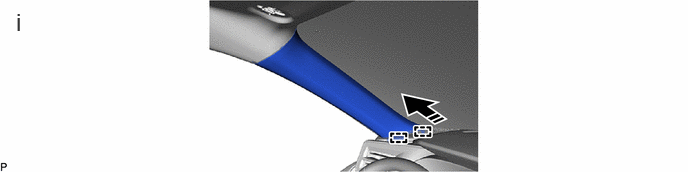

    3. GTY1232890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disengage the 2 guides to remove the front pillar garnish assembly LH as shown in the illustration.

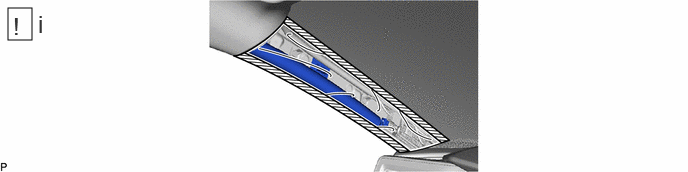

    4. GTY1233526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Protect the curtain shield airbag assembly LH.

        1. Cover the curtain shield airbag assembly LH with a protective cover, such as a cloth, and secure the edges of the cover with tape as shown in the illustration.

        NOTE:

        Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish assembly LH is removed.

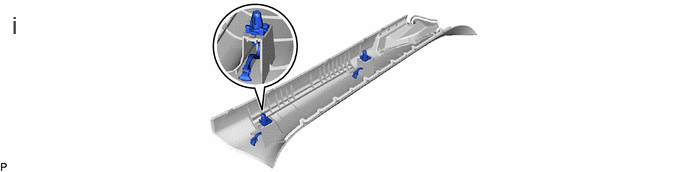

    5. GTY1240799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 front pillar garnish clips from the front pillar garnish assembly LH.

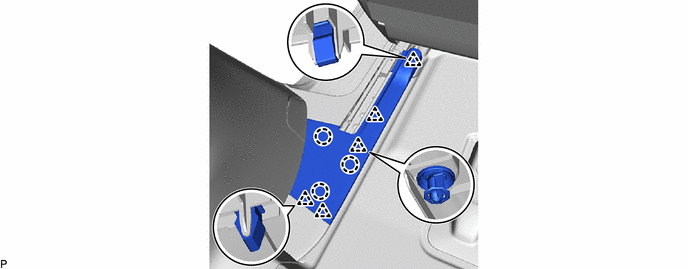

  11. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH
    1. GTY1228219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR DOOR SCUFF PLATE LH

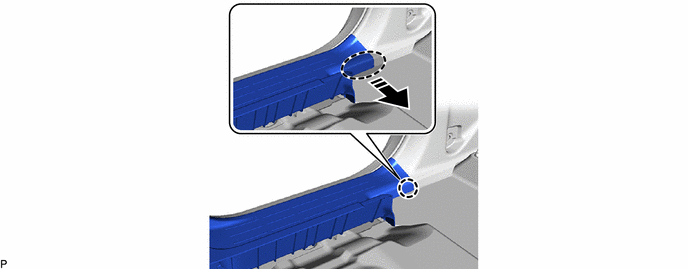

    1. GTY1229441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction

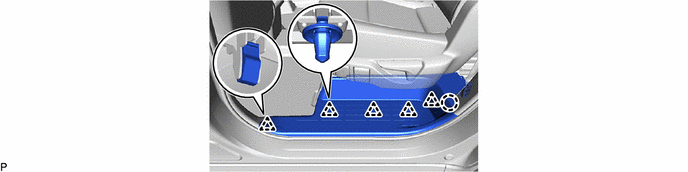

    2. GTY1228206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 3

  14. REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)

    Refer to PROCEDURE - Step 10 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 10 [12/2023 - ]

  15. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 11 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 11 [12/2023 - ]

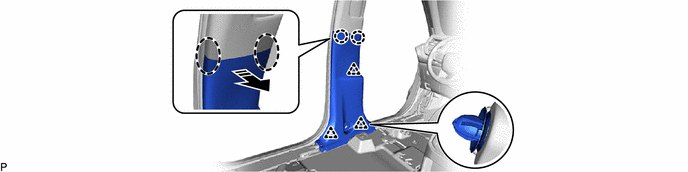

  16. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. GTY1231412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  17. REMOVE CENTER PILLAR GARNISH ASSEMBLY LH

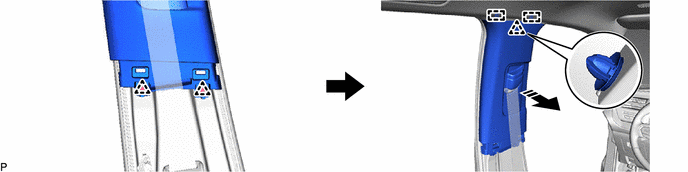

    1. GTY1234191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  18. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  19. REMOVE COWL SIDE TRIM BOARD RH
    1. Use the same procedure as for the LH side.
  20. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure as for the LH side.
  21. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  22. REMOVE REAR OUTER SEAT TRACK BRACKET COVER RH
    1. Use the same procedure as for the LH side.
  23. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure as for the LH side.
  24. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure as for the LH side.
  25. REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)
    1. Use the same procedure as for the LH side.
  26. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  27. REMOVE CENTER PILLAR LOWER GARNISH RH
    1. Use the same procedure as for the LH side.
  28. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  29. REMOVE REAR NO. 1 SEAT ASSEMBLY (for Captain Seat Type)

    Refer to REMOVAL [09/2023 - ]

  30. REMOVE REAR NO. 1 SEAT ASSEMBLY (for 60/40 Split Seat Type LH Side)

    Refer to REMOVAL [09/2023 - ]

  31. REMOVE REAR NO. 1 SEAT ASSEMBLY (for 60/40 Split Seat Type RH Side)

    Refer to REMOVAL [09/2023 - ]

  32. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]

  33. REMOVE REAR FLOOR FINISH PLATE

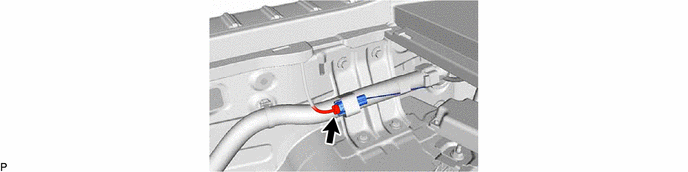

    1. w/ Illumination:
      GTY1239160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

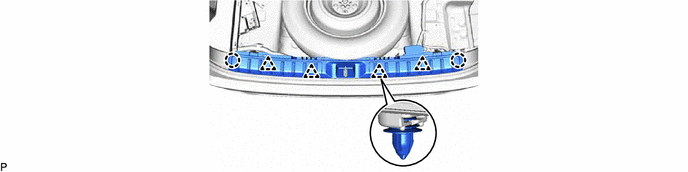

    2. GTY1228203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE CENTER PILLAR LOWER GARNISH BELT HOLE COVER LH

    Refer to PROCEDURE - Step 10 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 10 [12/2023 - ]

  35. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 11 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 11 [12/2023 - ]

  36. REMOVE DECK SIDE TRIM COVER LH

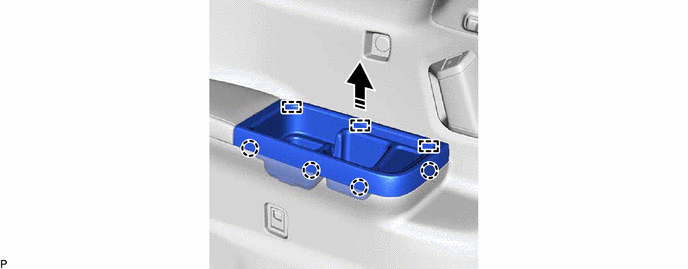

    1. GTY1230550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

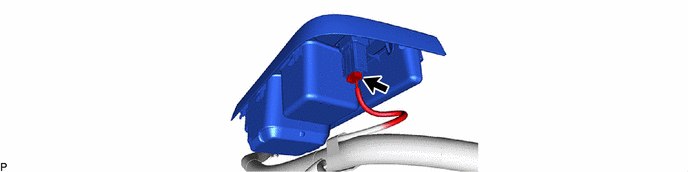

    2. w/ Rear Power Seat System:
      GTY1228257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 13 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 13 [12/2023 - ]

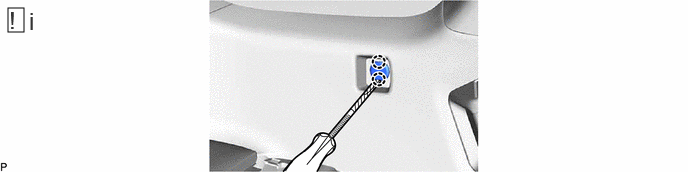

  38. REMOVE DECK TRIM POCKET COVER (for LH Side)
    1. GTY1227895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the deck trim pocket cover.
  39. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

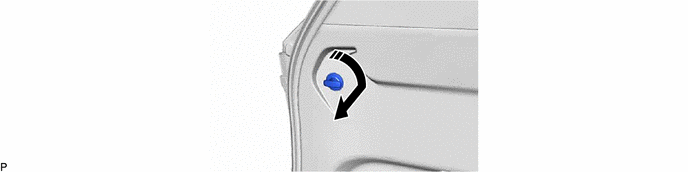

    1. GTY1229550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

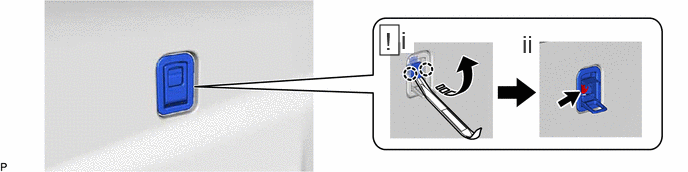

  40. REMOVE ROPE HOOK (for LH Side)
    1. GTY1239907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a moulding remover, disengage the 2 claws and open the cover as shown in the illustration.
      2. Remove the bolt and rope hook.
  41. REMOVE ROPE HOOK ASSEMBLY (for LH Side)
    1. Use the same procedure as for the rope hook.
  42. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

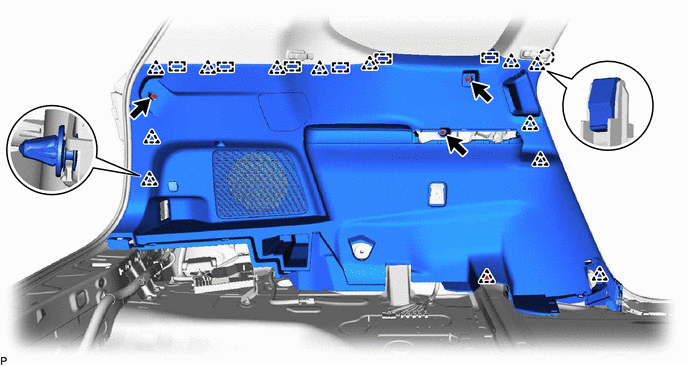

    1. GTY1239211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

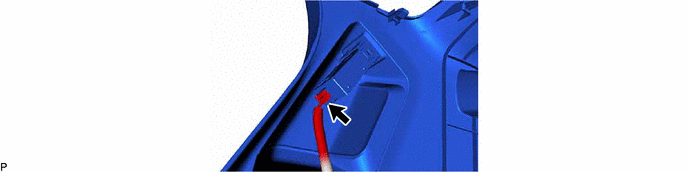

    2. GTY1228437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

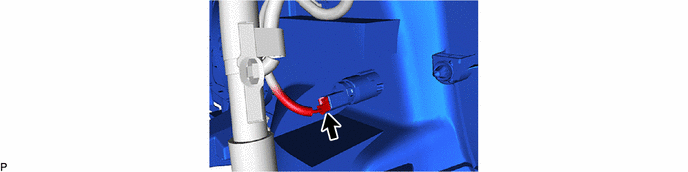

    3. w/o Voltage Inverter:
      GTY1228438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

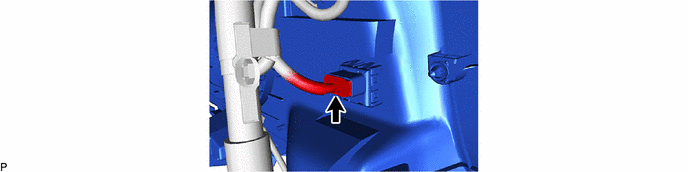

    4. w/ Voltage Inverter:
      GTY1229292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

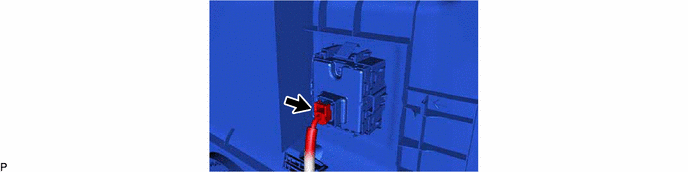

    5. w/ Rear Power Seat System:
      GTY1230320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

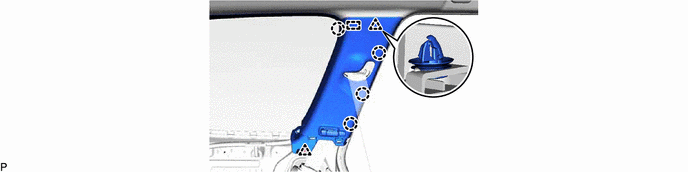

  43. REMOVE ROOF SIDE INNER GARNISH LH
    1. GTY1239210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE REAR WINDOW SIDE GARNISH LH

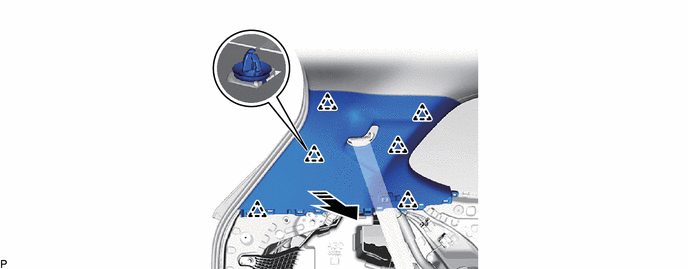

    1. GTY1230577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  45. REMOVE REAR ROOF SIDE RAIL GARNISH LH

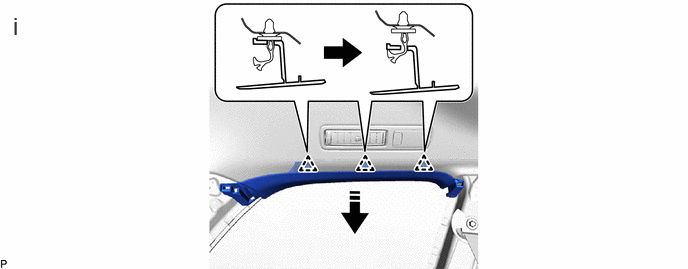

    1. GTY1233349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disengage the 3 clips to disconnect the rear roof side rail garnish LH as shown in the illustration.

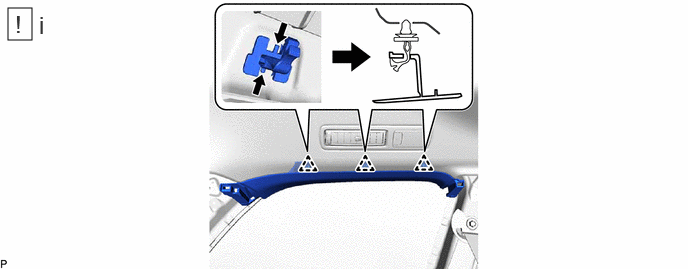

    2. GTY1240904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. While pushing the tabs of the roof side inner garnish clip as shown in the illustration, disengage it.

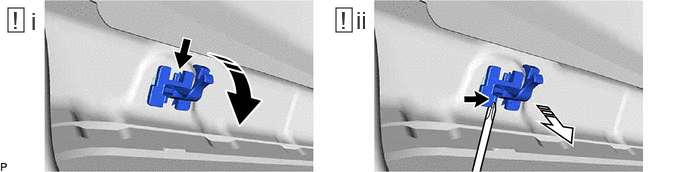

    3. When the roof side inner garnish clip cannot be disengaged easily:
      GTY1229946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull in this Direction Move in this Direction
      1. While pushing the tab of the roof side inner garnish clip shown in the illustration with your finger, move the roof side garnish clip in the direction shown in the illustration.
      2. While pulling the roof side inner garnish clip as shown in the illustration, push the tab of the roof side garnish clip shown in the illustration with a screwdriver and disengage the roof side garnish clip.

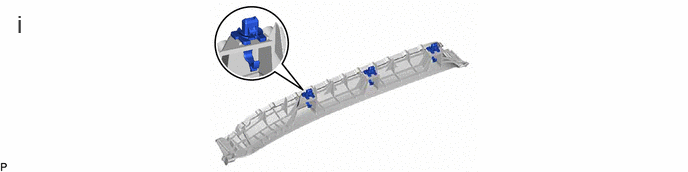

    4. GTY1198428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 roof side inner garnish clips from the rear roof side rail garnish LH.
  46. REMOVE CENTER PILLAR LOWER GARNISH BELT HOLE COVER RH
    1. Use the same procedure as for the LH side.
  47. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  48. REMOVE DECK SIDE TRIM COVER RH
    1. Use the same procedure as for the LH side.
  49. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  50. REMOVE DECK TRIM POCKET COVER (for RH Side)
    1. Use the same procedure as for the LH side.
  51. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
    1. Use the same procedure as for the LH side.
  52. REMOVE ROPE HOOK (for RH Side)
    1. Use the same procedure as for the LH side.
  53. REMOVE ROPE HOOK ASSEMBLY (for RH Side)
    1. Use the same procedure as for the LH side.
  54. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

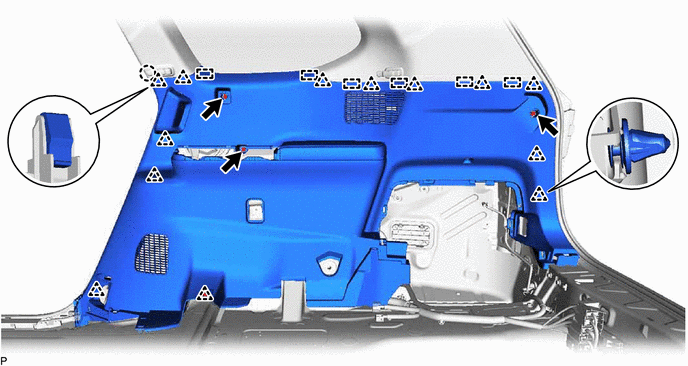

    1. GTY1228496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

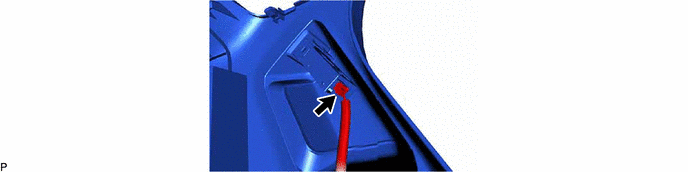

    2. GTY1228497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

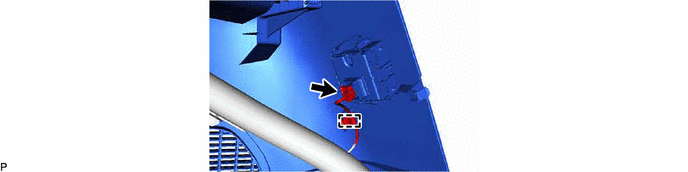

    3. w/ Rear Power Seat System:
      GTY1230321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. REMOVE ROOF SIDE INNER GARNISH RH
    1. Use the same procedure as for the LH side.
  56. REMOVE REAR WINDOW SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  57. REMOVE REAR ROOF SIDE RAIL GARNISH RH
    1. Use the same procedure as for the LH side.
  58. REMOVE COOLER PLATE

    Refer to PROCEDURE - Step 21

  59. REMOVE NO. 2 ROOF SIDE AIR DUCT

    Refer to PROCEDURE - Step 22

  60. REMOVE VISOR BRACKET COVER LH

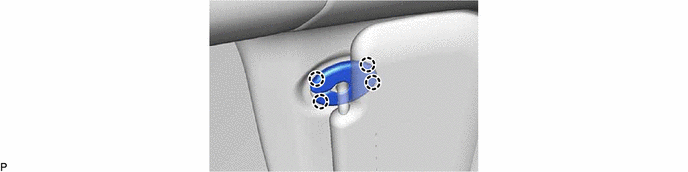

    1. GTY1228492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

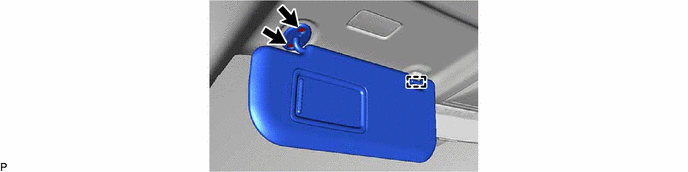

  61. REMOVE VISOR ASSEMBLY LH
    1. GTY1228493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE VISOR BRACKET COVER RH
    1. Use the same procedure as for the LH side.
  63. REMOVE VISOR ASSEMBLY RH
    1. Use the same procedure as for the LH side.

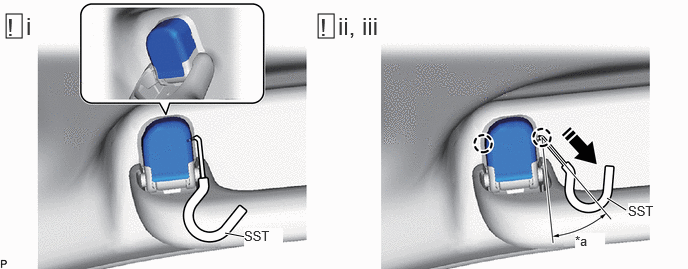

  64. REMOVE ASSIST GRIP COVER LH
    1. GTY1237456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45° - -
      Remove in this Direction - -
      1. Insert SST into the cutout of the assist grip cover as shown in the illustration.
        • SST: 09813-00010
        NOTE:

        To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

      2. Pull SST as shown in the illustration to disengage the claw.
        NOTE:

        To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

        HINT:

        Use the same procedure for the claw on the other side of the assist grip cover.

      3. Remove the assist grip cover.
    2. Use the same procedure for all assist grip covers.
  65. REMOVE ASSIST GRIP COVER RH
    1. Use the same procedure as for the LH side.
  66. REMOVE ASSIST GRIP

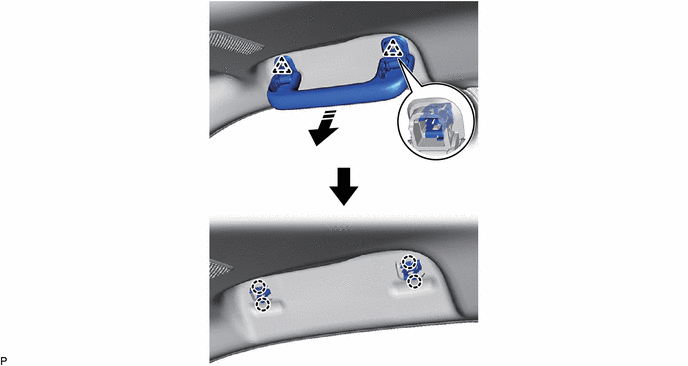

    1. GTY1228716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  67. REMOVE REAR ASSIST GRIP LH
    1. Use the same procedure as for the assist grip.
  68. REMOVE REAR ASSIST GRIP RH
    1. Use the same procedure as for the assist grip.
  69. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  70. REMOVE VANITY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  71. REMOVE NO. 2 FORWARD RECOGNITION COVER
    Refer to PROCEDURE - Step 1
  72. REMOVE NO. 1 FORWARD RECOGNITION COVER
    Refer to PROCEDURE - Step 2
  73. REMOVE RAIN SENSOR

    Refer to REMOVAL [09/2023 - ]

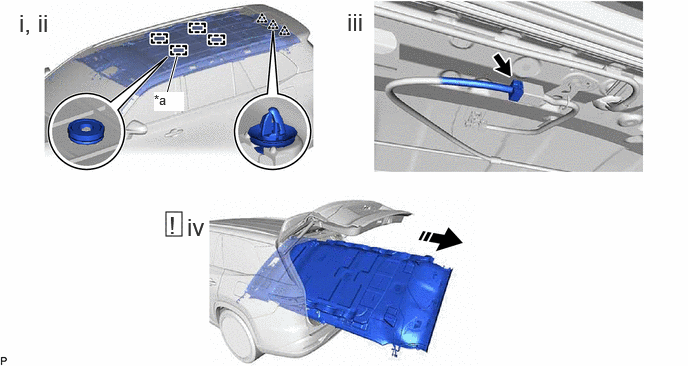

  74. REMOVE ROOF HEADLINING ASSEMBLY

    HINT:

    As the illustration shown is an example, the actual details may differ.

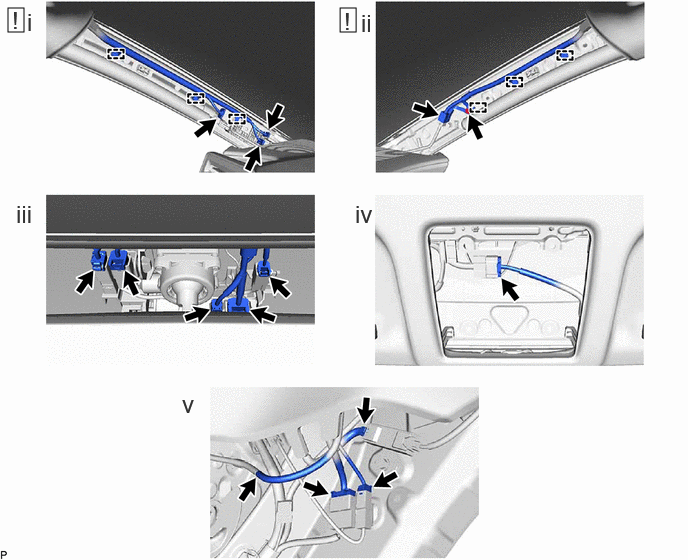

    1. GTY1235136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. For Front Pillar LH Side:

        1. Remove the protective cover.

        2. Disconnect each connector.

        3. Disengage the 3 clamps.

        4. Disconnect the washer hose assembly.

        5. Install the protective cover.

      2. For Front Pillar RH Side:

        1. Remove the protective cover.

        2. Disconnect the connector.

        3. Disengage the 2 clamps and guide.

        4. Remove the bolt.

        5. Install the protective cover.

      3. For Windshield Glass Side:

        1. Disconnect each connector.

      4. For Panoramic Moon Roof Map Light Side:

        1. Disconnect the connector.

      5. For Rear Pillar LH Side:

        1. Disconnect each connector.

        2. Disconnect the washer hose assembly.

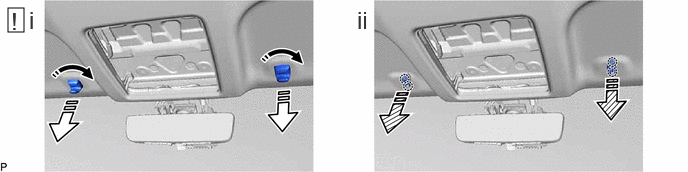

    2. GTY1233730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Rotation Direction Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Turn each visor holder approximately 45° and remove them as indicated by the arrows, in the order shown in the illustration.
      2. Disengage the 4 claws as shown in the illustration to remove the base of each visor holder.
    3. For Normal Roof:
      GTY1235159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Magnet plate - -
      Remove in this Direction - -
      1. Disengage the 3 clips.
      2. Separate the 4 magnet plates.
      3. Disconnect the connector.
      4. Remove the roof headlining assembly from the vehicle through the back door as shown in the illustration.
        NOTE:

        Do not damage the roof headlining assembly or vehicle interior.

    4. For Panoramic Moon Roof:

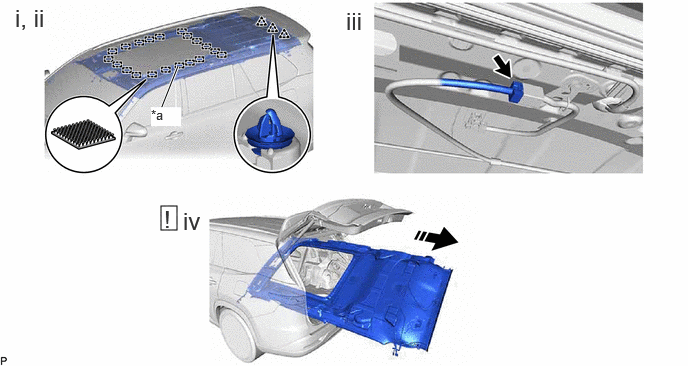

      GTY1238355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener - -
      Remove in this Direction - -
      1. Disengage the 3 clips.
      2. Disengage the 20 fasteners.
      3. Disconnect the connector.
      4. Remove the roof headlining assembly from the vehicle through the back door as shown in the illustration.
        NOTE:

        Do not damage the roof headlining assembly or vehicle interior.

scientia non olet · About LEMON Manuals
