Removal [08/2023 - ]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    for A25A-FXS HEV Model: Refer to PROCEDURE - Step 7 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 7 [10/2024 - ]

    for A25A-FXS PHEV Model: Refer to PROCEDURE - Step 7

    for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 7

    for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 9

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    for A25A-FXS HEV Model: Refer to PROCEDURE - Step 8 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 8 [10/2024 - ]

    for A25A-FXS PHEV Model: Refer to PROCEDURE - Step 8

    for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 8

    for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 10

  4. REMOVE NO. 1 ENGINE UNDER COVER

    for A25A-FXS HEV Model: Refer to PROCEDURE - Step 9 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 9 [10/2024 - ]

    for A25A-FXS PHEV Model: Refer to PROCEDURE - Step 9

    for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 9

    for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 11

  5. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    for A25A-FXS HEV Model: Refer to PROCEDURE - Step 10 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 10 [10/2024 - ]

    for A25A-FXS PHEV Model: Refer to PROCEDURE - Step 10

    for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 10

    for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 12

  6. REMOVE FRONT FLOOR COVER LH (for LH Side)
    for A25A-FXS HEV Model: Refer to PROCEDURE - Step 4
    for A25A-FXS PHEV Model: Refer to PROCEDURE - Step 35
    for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 4
    for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 4
  7. REMOVE FRONT FENDER APRON SEAL LH (for LH Side)

    for A25A-FXS HEV Model: Refer to PROCEDURE - Step 11 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 11 [10/2024 - ]

    for A25A-FXS PHEV Model: Refer to PROCEDURE - Step 11

    for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 11

    for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 13

  8. REMOVE FRONT FLOOR COVER RH (for RH Side)
    for A25A-FXS HEV Model: Refer to PROCEDURE - Step 36 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 34 [10/2024 - ]
    for A25A-FXS PHEV Model: Refer to PROCEDURE - Step 36
    for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 47
    for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 17
  9. REMOVE FRONT FENDER APRON SEAL RH (for RH Side)

    for A25A-FXS HEV Model: Refer to PROCEDURE - Step 12 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 12 [10/2024 - ]

    for A25A-FXS PHEV Model: Refer to PROCEDURE - Step 12

    for T24A-FTS 1Motor-HEV Model: Refer to PROCEDURE - Step 12

    for T24A-FTS Gasoline Model: Refer to PROCEDURE - Step 14

  10. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

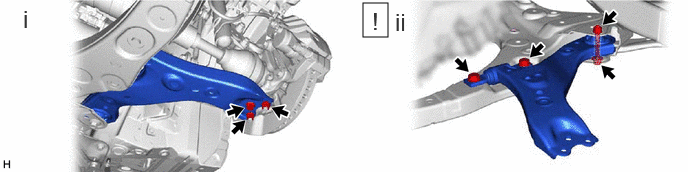

    1. GTY1062854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and 2 nuts and separate the front lower No. 1 suspension arm sub-assembly from the front lower ball joint assembly.
      2. Remove the 3 bolts, nut and front lower No. 1 suspension arm sub-assembly from the front frame assembly.
        NOTE:

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  11. REMOVE FRONT LOWER ARM BUSHING STOPPER
    1. GTY977952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
