Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  2. DRAIN FUEL
  3. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 1 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 1 [08/2023 - ]

  4. REMOVE FRONT FLOOR COVER LH
    1. GTY1131518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip (A), 2 bolts (B) and 6 screws (C).
      2. Turn the 4 clips (D) and remove the front floor cover LH from the vehicle body.
        NOTE:

        If the 4 clips are not turned when the front floor cover LH is removed, the front floor cover LH or stud bolt may be damaged.

        HINT:

        Do not remove the clips from the front floor cover LH.

  5. REMOVE NO. 1 FLOOR UNDER COVER
    1. GTY1130242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT FUEL TANK WIRE
    1. GTY1132840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. GTY1131886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank vent hose sub-assembly from the fuel vapor containment valve (close tank with bolt valve assembly).

        Refer to PRECAUTION [10/2022 - 08/2023] , or refer to PRECAUTION [08/2023 - ]

  8. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

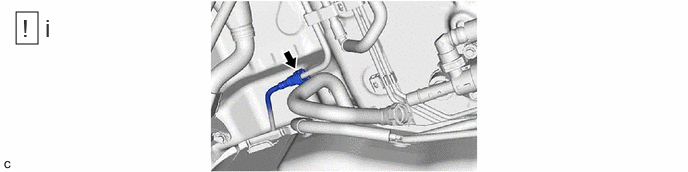

    1. GTY1132453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank main tube sub-assembly from the fuel pipe.

        Refer to PRECAUTION [10/2022 - 08/2023] , or refer to PRECAUTION [08/2023 - ]

  9. DISCONNECT FUEL TANK BREATHER TUBE
    1. GTY1132039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank breather tube from the fuel tank breather tube sub-assembly.

        Refer to PRECAUTION [10/2022 - 08/2023] , or refer to PRECAUTION [08/2023 - ]

  10. DISCONNECT FUEL TANK FILLER PIPE ASSEMBLY
    1. GTY1131217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank filler pipe assembly from the fuel tank assembly.

        Refer to PRECAUTION [10/2022 - 08/2023] , or refer to PRECAUTION [08/2023 - ]

  11. DISCONNECT REAR MAIN MUFFLER HEAT INSULATOR SUB-ASSEMBLY
    1. GTY1130472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FUEL TANK ASSEMBLY
    WARNING:

    The fuel tank assembly is very heavy. Be sure to follow the procedure described in the appropriate service information , or the fuel tank assembly may fall off the engine lifter.

    GTY563885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. GTY1133445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Support the fuel tank assembly using an engine lifter.

        HINT:

        Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.

      2. Remove the 5 bolts, fuel tank band sub-assembly and No. 1 fuel tank band sub-assembly LH.
      3. Lower the engine lifter to remove the fuel tank assembly.
        NOTE:
        • Be careful not to drop the fuel tank assembly.
        • When removing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.
  13. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. GTY1131616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. GTY1133287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tank evaporation tube sub-assembly from the fuel tank vent hose sub-assembly.

        Refer to PRECAUTION [10/2022 - 08/2023] , or refer to PRECAUTION [08/2023 - ]

      2. Disengage the clamp.
      3. Disengage the 2 clamps and remove the fuel tank vent hose sub-assembly from the fuel tank assembly.
  15. REMOVE NO. 1 FUEL TUBE CLAMP
    1. GTY1131619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FUEL TANK WIRE
    1. GTY1130065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 2 FUEL TANK PROTECTOR
    1. GTY1132837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
    1. GTY1132835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 6 FUEL TANK CUSHION

    HINT:

    Perform this procedure only when replacement of the No. 6 fuel tank cushion is necessary.

    1. GTY1132836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 2 FUEL TANK CUSHION

    HINT:

    Perform this procedure only when replacement of the No. 2 fuel tank cushion is necessary.

    1. GTY1129697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
