Installation [10/2022 - ]: Procedure

  1. INSTALL WIRE HARNESS CLAMP BRACKET

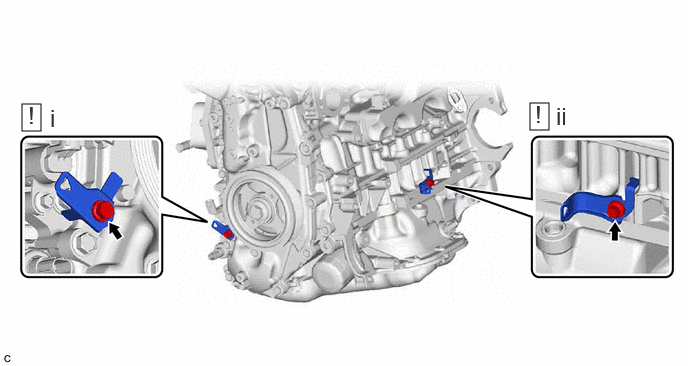

    1. GTY1078813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, install the wire harness clamp bracket to the No. 2 timing chain cover assembly with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      2. Using an 8 mm socket wrench, install the wire harness clamp bracket to the crankshaft bearing cap with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL CRANKSHAFT POSITION SENSOR
    Refer to PROCEDURE - Step 1
  3. INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    Refer to PROCEDURE - Step 1
  4. INSTALL KNOCK CONTROL SENSOR
    Refer to PROCEDURE - Step 1
  5. INSTALL ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side)
    Refer to PROCEDURE - Step 1
  6. INSTALL HEATER WATER HOSE BRACKET

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  7. INSTALL WATER BY-PASS GASKET
    1. GTY1077731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw - -
      1. Install a new water by-pass gasket to the water by-pass pipe sub-assembly.
        NOTE:

        Make sure that the claws of the water by-pass gasket are toward the water by-pass pipe sub-assembly side.

  8. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  9. INSTALL WATER BY-PASS HOSE
  10. INSTALL EXHAUST PIPE HEAT INSULATOR
    Refer to PROCEDURE - Step 5
  11. INSTALL NO. 2 MANIFOLD STAY

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  12. INSTALL WATER INLET HOUSING

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  13. INSTALL WIRE HARNESS

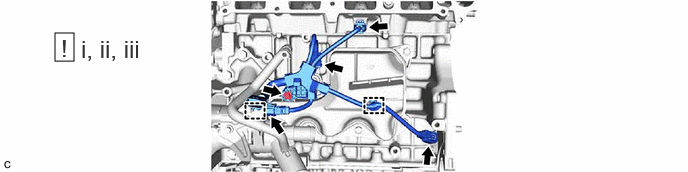

    1. GTY1078586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, install the wire harness with bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      2. Engage the 2 clamps.
      3. Connect the 4 connectors.
  14. INSTALL IGNITION COIL ASSEMBLY
    Refer to PROCEDURE - Step 2
  15. INSTALL PORT FUEL INJECTOR ASSEMBLY
    Refer to PROCEDURE - Step 1
  16. INSTALL NO. 5 ENGINE WIRE
  17. INSTALL INJECTOR VIBRATION INSULATOR
  18. INSTALL FUEL DELIVERY SPACER
  19. INSTALL FUEL DELIVERY PIPE
    Refer to PROCEDURE - Step 5
  20. INSTALL NO. 2 WATER BY-PASS PIPE

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  21. INSTALL FUEL PUMP LIFTER ASSEMBLY
    Refer to PROCEDURE - Step 1
  22. INSTALL FUEL PUMP SPACER GASKET
  23. TEMPORARILY INSTALL FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
    Refer to PROCEDURE - Step 3
  24. TEMPORARILY INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 4
  25. INSTALL FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
    Refer to PROCEDURE - Step 5
  26. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 6
  27. CONNECT FUEL TUBE SUB-ASSEMBLY

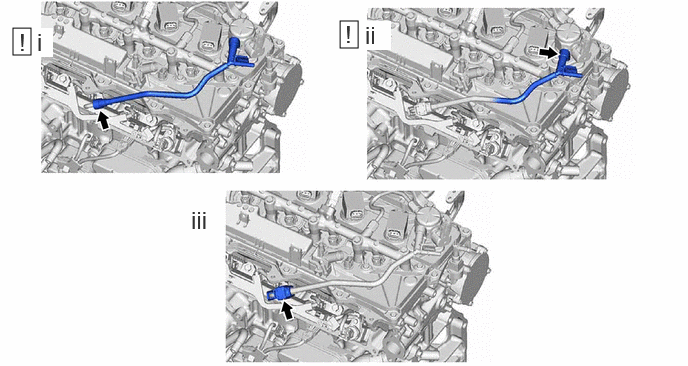

    1. GTY1077675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the fuel tube sub-assembly to the fuel delivery pipe.

        Refer to PRECAUTION [10/2022 - ]

      2. Connect the fuel tube sub-assembly to the fuel (engine room side) pump assembly.

        Refer to PRECAUTION [10/2022 - ]

      3. Install the EFI fuel pipe clamp (fuel delivery pipe side) to the fuel tube connector.
  28. CONNECT WATER OUTLET STAY

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  29. TEMPORARILY INSTALL TURBOCHARGER SUB-ASSEMBLY

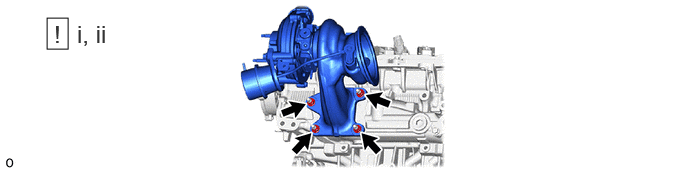

    1. GTY1132443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new exhaust manifold to head gasket.
      2. Temporarily install the turbocharger sub-assembly to the cylinder head sub-assembly by tightening 4 new nuts by 2 or 3 threads.
  30. INSTALL NO. 1 TURBO OIL OUTLET GASKET
    1. GTY1078833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw - -
      1. Install a new No. 1 turbo oil outlet gasket to the No. 1 turbo oil pipe.
        NOTE:

        Make sure that the claws of the No. 1 turbo oil outlet gasket are toward the No. 1 turbo oil pipe side.

  31. INSTALL NO. 1 TURBO OIL PIPE

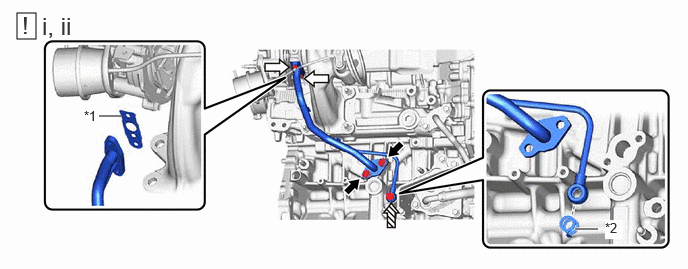

    1. GTY1130115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Turbo Oil Inlet Gasket *2 Gasket
      Bolt Nut
      Oil Pipe Union Bolt - -
      1. Install a new turbo oil inlet gasket and gasket.

        HINT:

        Face the straight part of the turbo oil inlet gasket toward the outside of the engine.

      2. Temporarily install the No. 1 turbo oil pipe to the turbocharger sub-assembly and cylinder block sub-assembly by tightening the oil pipe union bolt, 2 bolts and 2 nuts by 2 or 3 threads.

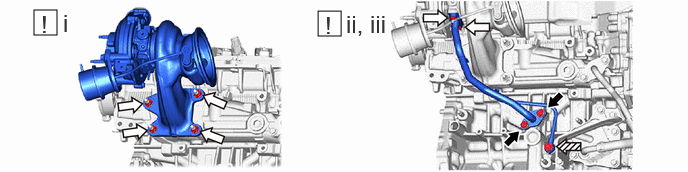

    2. GTY1131566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      Oil Pipe Union Bolt - -
      1. Temporarily install the turbocharger sub-assembly to the cylinder head sub-assembly by tightening the 4 nuts until the turbocharger sub-assembly is seated.
      2. Temporarily install the No. 1 turbo oil pipe to the turbocharger sub-assembly by tightening the 2 nuts until the No. 1 turbo oil pipe is seated.
      3. Temporarily install the No. 1 turbo oil pipe to the cylinder block sub-assembly by tightening the 2 bolts and oil pipe union bolt until the No. 1 turbo oil pipe is seated.

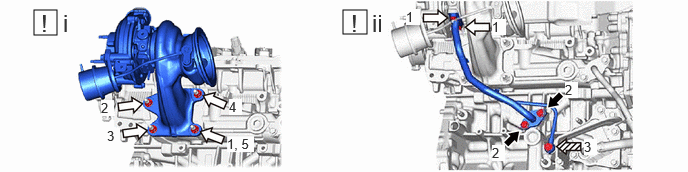

    3. GTY1131565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      Oil Pipe Union Bolt - -
      1. Uniformly tighten the 4 nuts in the order shown in the illustration.

        Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      2. Uniformly tighten the 2 bolts, oil pipe union bolt and 2 nuts in the order shown in the illustration.

        Bolt

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

        Oil Pipe Union Bolt

        Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

        Nut

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  32. INSTALL MANIFOLD STAY

    Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  33. INSTALL NO. 1 HEAT INSULATOR BRACKET

    Refer to PROCEDURE - Step 6

  34. CONNECT NO. 3 TURBO WATER HOSE
    Refer to PROCEDURE - Step 8
  35. CONNECT NO. 2 TURBO WATER HOSE
    Refer to PROCEDURE - Step 7
  36. INSTALL NO. 1 TURBO INSULATOR

    Refer to PROCEDURE - Step 9

  37. INSTALL COMPRESSOR INLET ELBOW SUB-ASSEMBLY
    Refer to PROCEDURE - Step 12
  38. INSTALL VACUUM REGULATING VALVE ASSEMBLY
    Refer to PROCEDURE - Step 1
  39. INSTALL CONVERTER WITH CATALYST ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]

  40. INSTALL WATER OUTLET GASKET
    1. GTY1078960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw - -
      1. Install a new water outlet gasket to the front water by-pass joint.
        NOTE:

        Make sure that the claws of the water outlet gasket are toward the front water by-pass joint side.

  41. INSTALL FRONT WATER BY-PASS JOINT

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  42. INSTALL WATER CONTROL VALVE

    Refer to PROCEDURE - Step 1

  43. INSTALL INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY
    Refer to PROCEDURE - Step 4
  44. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

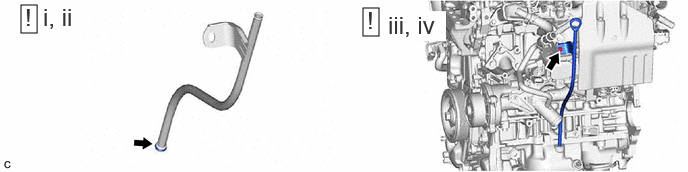

    1. GTY1077687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply a light coat of engine oil to a new O-ring.
      2. Install the O-ring to the engine oil level dipstick guide.
      3. Using an 8 mm socket wrench, install the engine oil level dipstick guide to the intake manifold with intercooler assembly with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      4. Install the engine oil level dipstick.
  45. CONNECT NO. 5 WATER BY-PASS HOSE
  46. CONNECT NO. 4 WATER BY-PASS HOSE
    Refer to PROCEDURE - Step 7
  47. CONNECT NO. 4 TURBO WATER HOSE
    Refer to PROCEDURE - Step 9
  48. CONNECT NO. 3 WATER BY-PASS HOSE
    Refer to PROCEDURE - Step 11
  49. CONNECT NO. 1 TURBO WATER HOSE
    Refer to PROCEDURE - Step 13
  50. CONNECT NO. 2 FUEL VAPOR FEED HOSE
  51. INSTALL AIR TUBE ASSEMBLY
    Refer to PROCEDURE - Step 15
  52. CONNECT NO. 1 VENTILATION PRESSURE SENSOR HOSE
  53. INSTALL PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 16

  54. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  55. INSTALL DRIVE SHAFT BEARING BRACKET
    1. GTY1254786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the drive shaft bearing bracket to the cylinder block sub-assembly with the 3 bolts.

        Torque: 63.7 N.m (650 kgf/cm, 47 ft.lbf)

        NOTE:

        Make sure that there is no oil on the threads of the bolts.
