Installation [10/2022 - ]: Procedure

Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

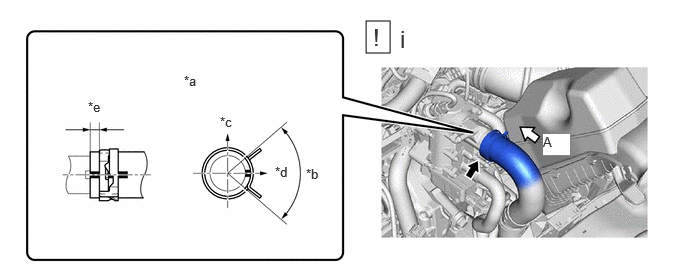

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	View A	*b	120°
   *c	Upper Side	*d	LH Side
   *e	2 to 7 mm (0.0787 to 0.276 in.)	-	-

   1. Connect the water by-pass hose assembly to the water control valve and slide the clip to secure it.
      NOTE:

      • Make sure to slide the water by-pass hose assembly until it contacts the hose stopper of the water control valve.
      • Make sure that the tabs of the clip are within the area shown in the illustration.

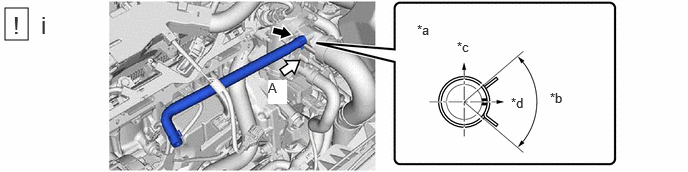

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	View A	*b	90°
   *c	Upper Side	*d	Front Side

   1. Connect the No. 3 water by-pass hose to the water control valve and slide the clip to secure it.
      NOTE:

      • Make sure to slide the No. 3 water by-pass hose until it contacts the hose stopper of the water control valve.
      • Make sure that the tabs of the clip are within the area shown in the illustration.

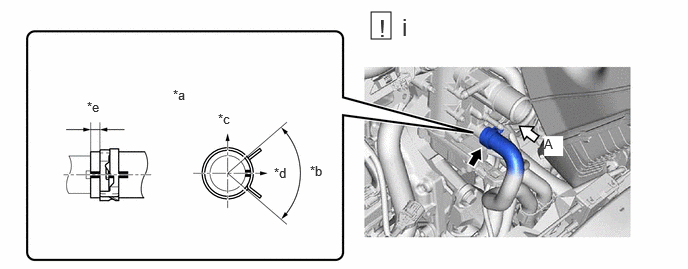

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	View A	*b	120°
   *c	Upper Side	*d	LH Side
   *e	2 to 7 mm (0.0787 to 0.276 in.)	-	-

   1. Connect the No. 1 radiator hose to the water control valve and slide the clip to secure it.
      NOTE:

      • Make sure to slide the No. 1 radiator hose until it contacts the hose stopper of the water control valve.
      • Make sure that the tabs of the clip are within the area shown in the illustration.

Refer to INSTALLATION [10/2022 - ]

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 1

for 1Motor-HEV Model: Refer to PROCEDURE - Step 79

for Gasoline Model: Refer to PROCEDURE - Step 85
