Installation [10/2022 - ]: Procedure
- INSTALL VACUUM REGULATING VALVE ASSEMBLY

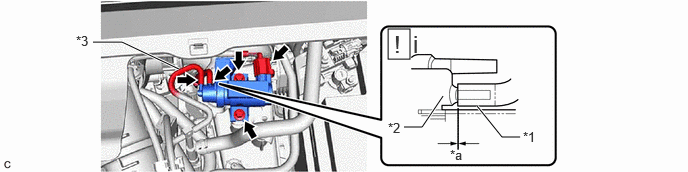

*1 Vacuum Transmitting Hose Assembly *2 Vacuum Regulating Valve Assembly *3 No. 2 Vacuum Transmitting Hose Assembly - - *a 0 to 1 mm (0 to 0.0393 in.) - - - Connect the vacuum transmitting hose assembly and No. 2 vacuum transmitting hose to the vacuum regulating valve.NOTE:
- Make sure to slide the vacuum transmitting hose assembly until it contacts the hose stopper of the vacuum regulating valve assembly.
- Make sure the tip of the hose is within the area shown in the figure.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Connect the vacuum transmitting hose assembly and No. 2 vacuum transmitting hose to the vacuum regulating valve.
