Removal [11/2017 - ]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH

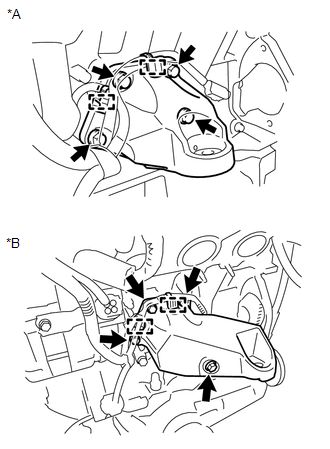

    1. Disengage the 2 clamps.
      GTY831926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
    2. Remove the 4 bolts and front No. 1 engine mounting bracket LH.
  3. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH

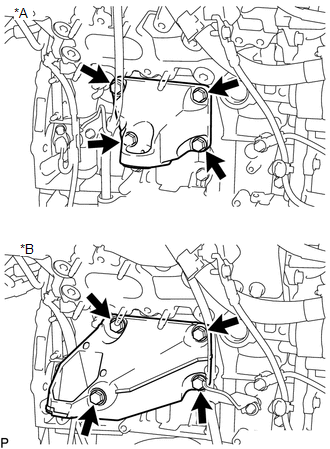

    1. Remove the 4 bolts and front No. 1 engine mounting bracket RH.
      GTY790491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
  4. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 5

  5. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 7

  6. REMOVE OIL FILTER BRACKET (for AWD)

    Refer to PROCEDURE - Step 4

  7. REMOVE COMPRESSOR AND MAGNETIC CLUTCH
  8. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET

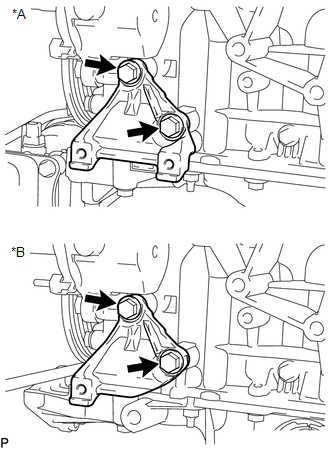

    1. Remove the 2 bolts and No. 1 compressor mounting bracket.
      GTY795846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
  9. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Remove the bolt and No. 2 idler pulley sub-assembly.
      GTY812760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    1. Remove the 2 bolts and V-ribbed belt tensioner assembly.
      GTY825743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE ENGINE WIRE
    1. Remove the engine wire from the engine assembly.
  12. REMOVE NO. 6 WATER BY-PASS HOSE
    1. Slide the 2 clips and remove the No. 6 water by-pass hose from the water outlet and cylinder head sub-assembly.
      GTY664446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 WATER BY-PASS HOSE
    1. Slide the 2 clips and remove the No. 2 water by-pass hose.
      GTY664444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 3 WATER BY-PASS HOSE

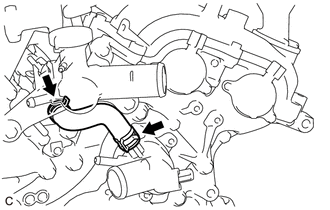

    1. Slide the 2 clips and remove the No. 3 water by-pass hose.
      GTY830084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 WATER BY-PASS HOSE ASSEMBLY
    1. Slide the 2 clips and remove the No. 2 water by-pass hose assembly.
      GTY812751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps.
  16. REMOVE WATER BY-PASS HOSE
    1. Slide the 2 clips and remove the water by-pass hose.
      GTY683963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE WATER INLET CAP (for 2WD)
    1. Slide the clip and remove the water inlet cap.
      GTY664550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 2 WATER BY-PASS PIPE
    1. Remove the bolt.
      GTY835520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the 2 clips and remove the No. 2 water by-pass pipe.
  19. REMOVE NO. 10 WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 10 water by-pass hose from the rear water by-pass joint.
      GTY812749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 11 WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 11 water by-pass hose from the No. 1 water outlet pipe.
      GTY812750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE WIRE HARNESS CLAMP BRACKET

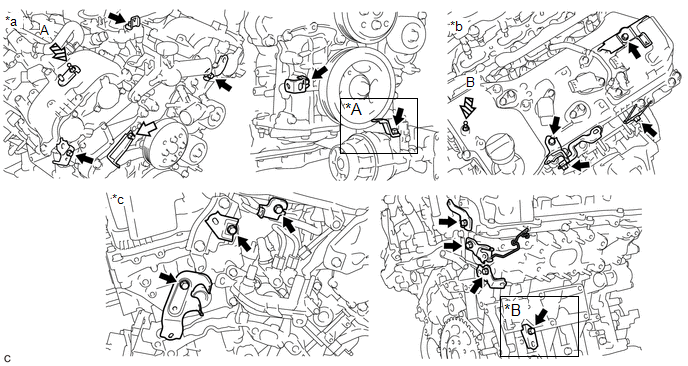

    GTY785226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for 2WD *B for AWD
    *a Front Side *b Upper Side
    *c Rear Side - -
    Bolt Nut
    V-bank Cover Bracket - -
    1. Remove the V-bank cover bracket (A) and wire harness clamp bracket.
    2. Remove the V-bank cover bracket (B).
    3. Remove the nut and wire harness clamp bracket.
    4. for 2WD
      1. Remove the 15 bolts and 15 wire harness clamp brackets.
    5. for AWD
      1. Remove the 15 bolts and 15 wire harness clamp brackets.
  22. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 4

  23. REMOVE FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 9

  24. REMOVE FUEL INJECTOR ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 10

  25. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 13

  26. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  27. REMOVE FUEL PUMP ASSEMBLY

    Refer to PROCEDURE - Step 9

  28. REMOVE NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  29. REMOVE FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  30. REMOVE FUEL DELIVERY PIPE RH

    Refer to PROCEDURE - Step 4

  31. REMOVE FUEL INJECTOR ASSEMBLY (for Direct Injection)

    Refer to PROCEDURE - Step 5

  32. REMOVE FUEL INJECTOR SEAL

    Refer to PROCEDURE - Step 6

  33. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 6

  34. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 5

  35. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 2
