Removal [11/2017 - ]: Procedure

  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1 [11/2017 - 10/2018] , or refer to PROCEDURE - Step 1 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [11/2017 - 10/2018] , or refer to PROCEDURE - Step 2 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 19

  4. DRAIN ENGINE OIL

    See step  1 [11/2017 - 11/2021], or see step  1 [11/2021 - ]

  5. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch assembly connector.

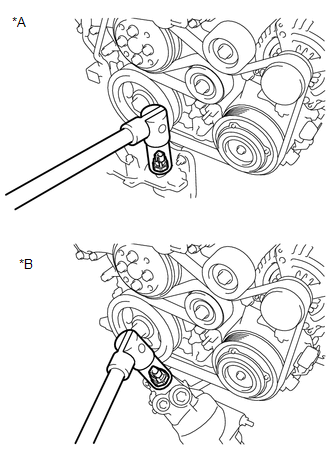

    2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY830976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
