Removal [11/2017 - ]: Procedure

Refer to PROCEDURE - Step 1 [11/2017 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]

Refer to REMOVAL [11/2017 - ]

Refer to REMOVAL [11/2017 - ]

1. Remove the nut, bolt and oil filter bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 18

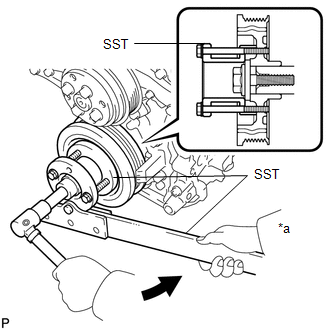

1. Using SST, loosen the crankshaft pulley bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   	Turn

   • SST: 09213-70011
     1. 09213-70020
   • SST: 09330-00021
2. Tighten the crankshaft pulley bolt to 2 or 3 threads of the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   	Turn

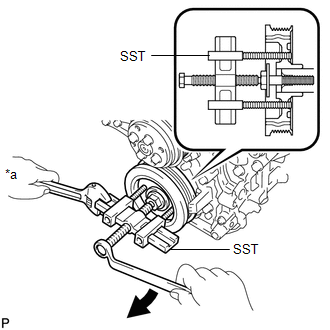

3. Using SST, remove the crankshaft pulley bolt and crankshaft pulley.
   • SST: 09950-50013
     1. 09951-05010
     2. 09952-05010
     3. 09953-05020
     4. 09954-05021

   HINT:

   Apply grease to the threads and tip of SST (center bolt) prior to use.

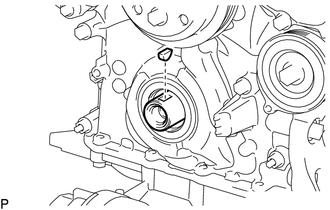

1. Remove the crankshaft timing gear key of the key groove.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain case oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
