Removal [12/2023 - ]: Procedure

  1. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)
    Refer to PROCEDURE - Step 2
  2. REMOVE INSTRUMENT SIDE PANEL LH
    Refer to PROCEDURE - Step 12
  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 14

  4. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION
  5. REMOVE NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION
    1. Use the same procedure described for the No. 2 instrument finish panel cushion.
  6. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 15

  7. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  8. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
  10. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 25

  11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    Refer to PROCEDURE - Step 26
  12. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 24

  13. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
    Refer to PROCEDURE - Step 10

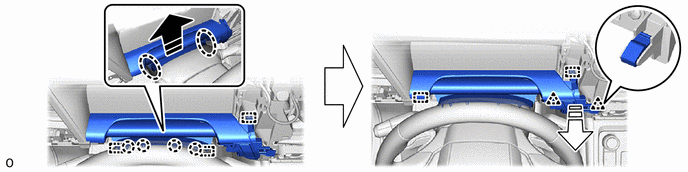

  14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. GTY1212308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  15. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 29

  16. REMOVE COMBINATION METER ASSEMBLY

    HINT:

    The illustrations are representative examples, and details may differ.

    1. GTY1217252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
