Removal [12/2023 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

1. Use the same procedure described for the lower No. 2 instrument panel pad subassembly.

HINT:

The illustrations are representative examples, and details may differ.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hands Here		Remove in this Direction (1)
   	Remove in this Direction (2)	-	-

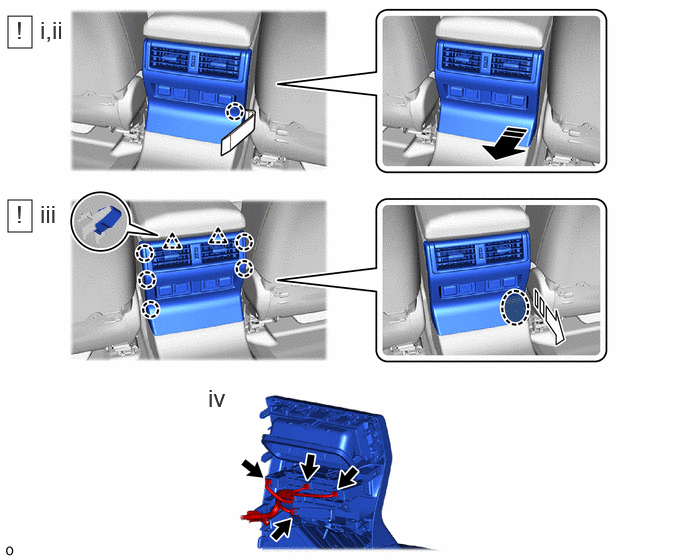

   1. Insert moulding remover D in the position shown in the illustration.
   2. Place your hand in the gap as shown in the illustration, detach the claw.
   3. Place your hand as shown in the illustration, detach the claw and clip and remove the rear console end panel sub-assembly.
   4. Disconnect the each connectors and detach the clamp.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Place Hands Here

   Remove in this Direction (1)

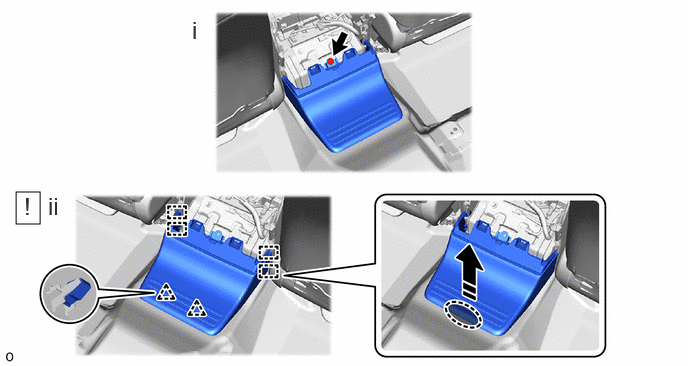

   1. Remove the bolt.
   2. Place your hand as shown in the illustration, detach the clip and guide and remove the rear No. 2 console end panel sub-assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

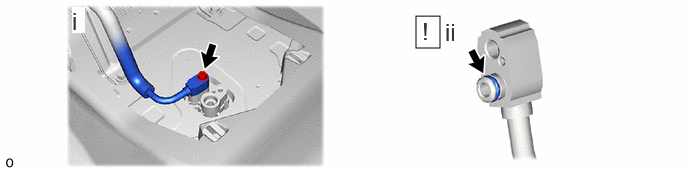

   1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose.
   2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

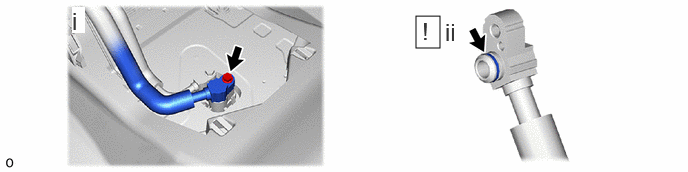

   1. Remove the bolt and disconnect the liquid hose A.
   2. Remove the O-ring from the liquid hose A.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the connector.
   2. Remove the 6 bolts.
   3. Remove the 2 screws and cooling box assembly.
