Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    Refer to PRECAUTION [11/2021 - ]
  2. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column)
    Refer to PROCEDURE - Step 2 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 2 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]
  3. STEERING WHEEL POSITION (for Manual Tilt and Manual Telescopic Steering Column)
    Refer to PROCEDURE - Step 2
  4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
    Refer to PROCEDURE - Step 2
  5. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  6. REMOVE STEERING WHEEL ASSEMBLY
    Refer to PROCEDURE - Step 4
    NOTE:

    If matchmarks were not placed when removing parts related to steering operation, perform automatic rack centering.
  7. REMOVE LOWER STEERING COLUMN COVER
    1. for Power Tilt and Power Telescopic Steering Column:

      Refer to PROCEDURE - Step 5 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 5 [03/2024 - ]

    2. for Manual Tilt and Manual Telescopic Steering Column:

      Refer to PROCEDURE - Step 4 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 4 [03/2024 - ]
  8. REMOVE UPPER STEERING COLUMN COVER
    1. for Power Tilt and Power Telescopic Steering Column:

      Refer to PROCEDURE - Step 6 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 6 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 6 [03/2024 - ]

    2. for Manual Tilt and Manual Telescopic Steering Column:

      Refer to PROCEDURE - Step 5 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 5 [03/2024 - ]

  9. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
    Refer to PROCEDURE - Step 5
  10. REMOVE TURN SIGNAL SWITCH
    Refer to PROCEDURE - Step 5
  11. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [11/2021 - 03/2022] , or refer to REMOVAL [03/2022 - 03/2024] , or refer to REMOVAL [03/2024 - ]

  12. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

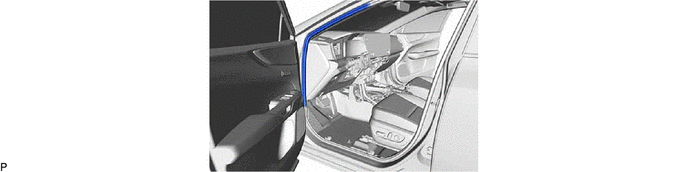

    1. GTY1052693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 INSTRUMENT SIDE PANEL

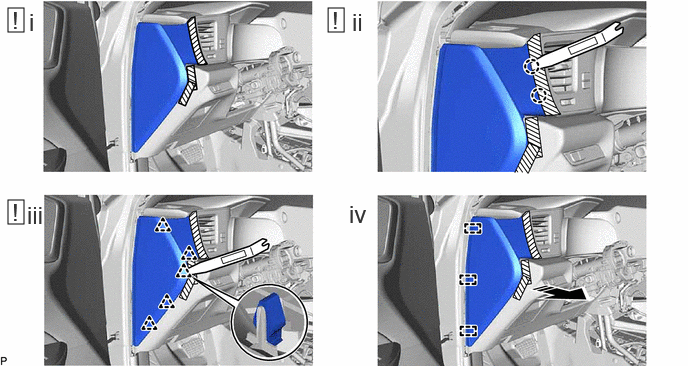

    1. GTY1052618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 2 claws as shown in the illustration.
      3. Using a moulding remover, disengage the 5 clips as shown in the illustration.
      4. Disengage the 3 guides to remove the No. 1 instrument side panel as shown in the illustration.
  14. REMOVE LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY

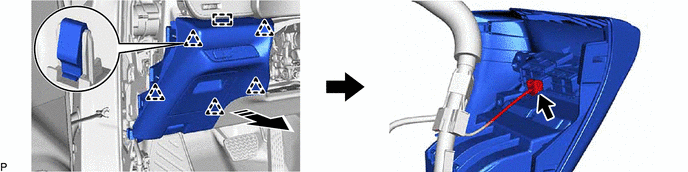

    1. GTY1053462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  15. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. GTY1054540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    Refer to PROCEDURE - Step 11
  17. REMOVE METER HOOD SUB-ASSEMBLY

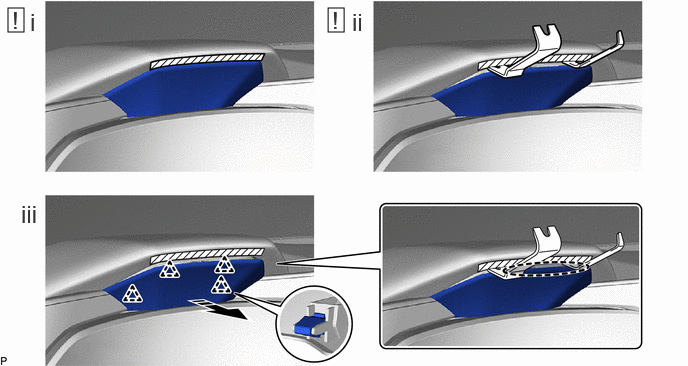

    1. GTY1052709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Apply protective tape to the area shown in the illustration.
      2. Insert the 2 moulding removers as shown in the illustration.
      3. Disengage the 4 clips to remove the meter hood sub-assembly as shown in the illustration.
  18. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

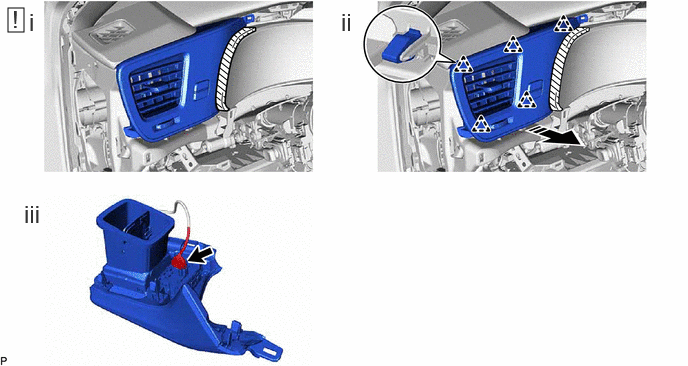

    1. GTY1053974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Disengage the 5 clips to remove the No. 1 instrument panel register assembly as shown in the illustration.
      3. Disconnect the connector.
  19. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

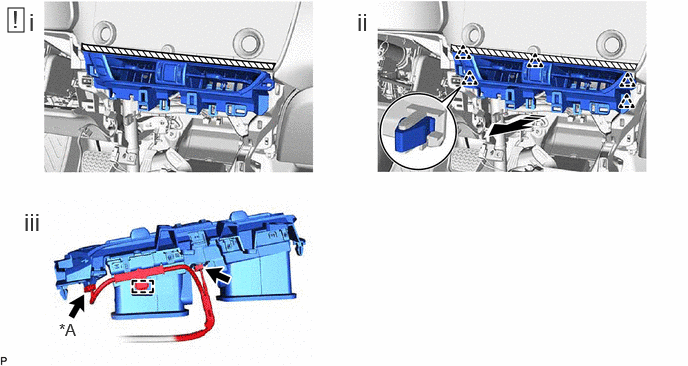

    1. GTY1052982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Panoramic View Monitor System - -
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Disengage the 5 clips to remove the center instrument panel register assembly as shown in the illustration.
      3. Disconnect each connector and disengage the clamp.
  20. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
    Refer to PROCEDURE - Step 4
  21. REMOVE COMBINATION METER ASSEMBLY WITH INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  22. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 13

  23. REMOVE COWL SIDE TRIM BOARD RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 15

  24. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

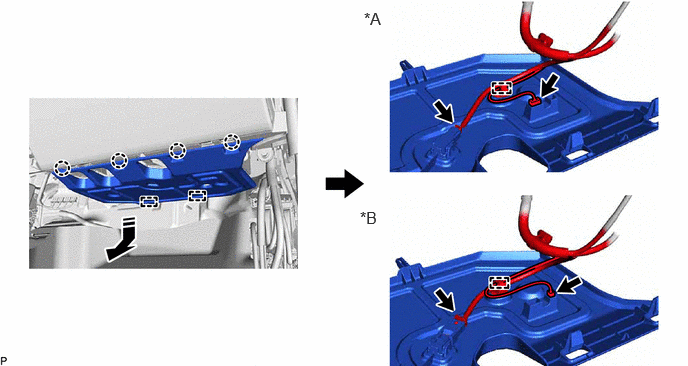

    1. GTY1053403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Mono-color *B for Multicolor
      Remove in this Direction - -
  25. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

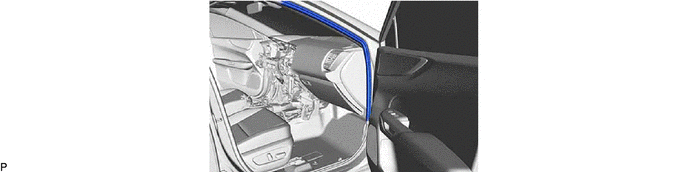

    1. GTY1053719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE NO. 2 INSTRUMENT SIDE PANEL

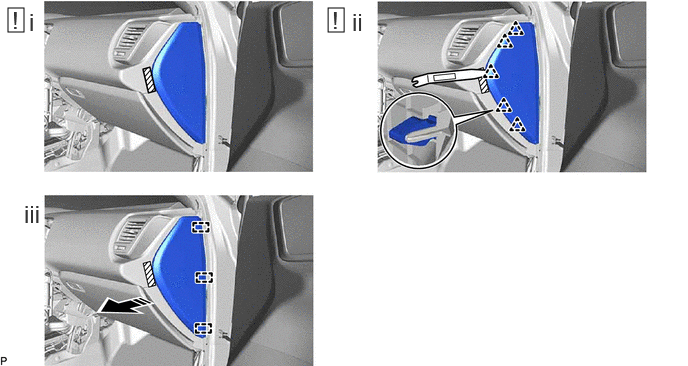

    1. GTY1053927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 5 clips as shown in the illustration.
      3. Disengage the 3 guides to remove the No. 2 instrument side panel as shown in the illustration.
  27. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

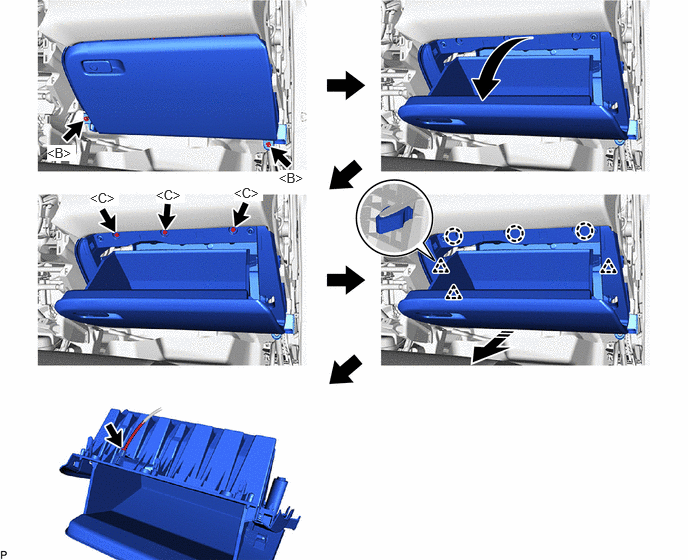

    1. GTY1052607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  28. REMOVE FRONT PILLAR GARNISH LH
    Refer to PROCEDURE - Step 19
  29. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

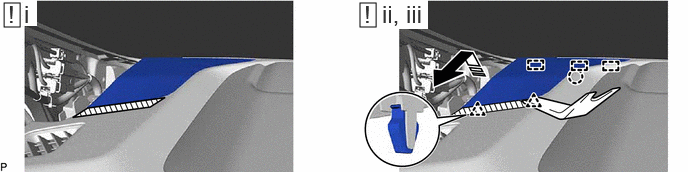

    1. GTY1053757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 2 clips and claw as shown in the illustration.
      3. Disengage the 3 guides to remove the No. 1 instrument panel speaker panel sub-assembly as shown in the illustration.
  30. REMOVE FRONT PILLAR GARNISH RH
    1. Use the same procedure as for the LH side.
  31. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

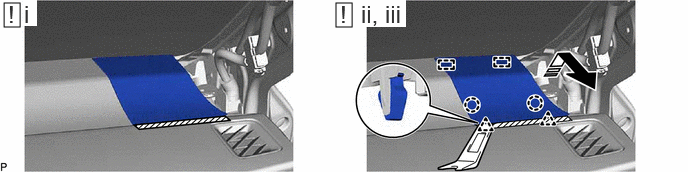

    1. GTY1053892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 2 clips and 2 claws as shown in the illustration.
      3. Disengage the 2 guides to remove the No. 2 instrument panel speaker panel sub-assembly as shown in the illustration.
  32. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
    1. Use the same procedure as for the LH side and RH side.

      Refer to PROCEDURE - Step 4

  33. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH

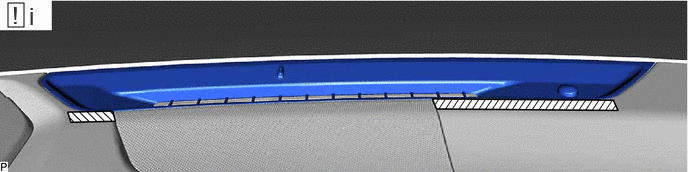

    1. GTY1053830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape to the area shown in the illustration.

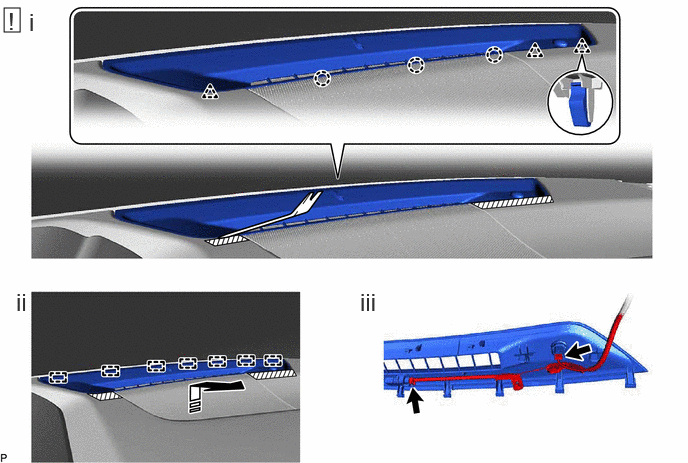

    2. GTY1052959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a moulding remover, disengage the 3 clips and 3 claws as shown in the illustration.
      2. Disengage the 7 guides to remove the No. 1 defroster nozzle garnish as shown in the illustration.
      3. Disconnect the 2 connectors.
  34. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

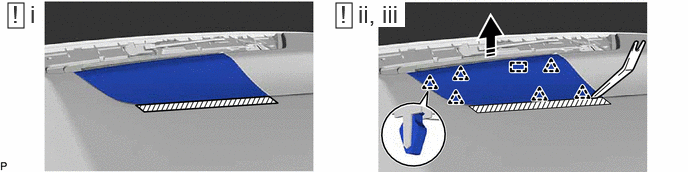

    1. GTY1053508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 6 clips as shown in the illustration.
      3. Disengage the guide to remove the No. 1 speaker opening cover assembly as shown in the illustration.
  35. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 7

  36. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Headup Display)

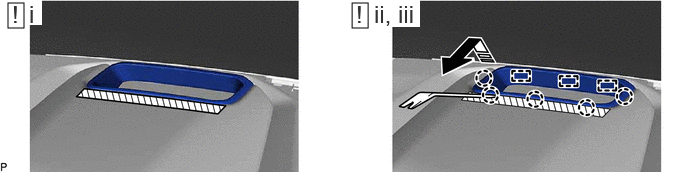

    1. GTY1052816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 5 claws as shown in the illustration.
      3. Disengage the 3 guides to remove the instrument cluster finish panel assembly as shown in the illustration.
  37. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

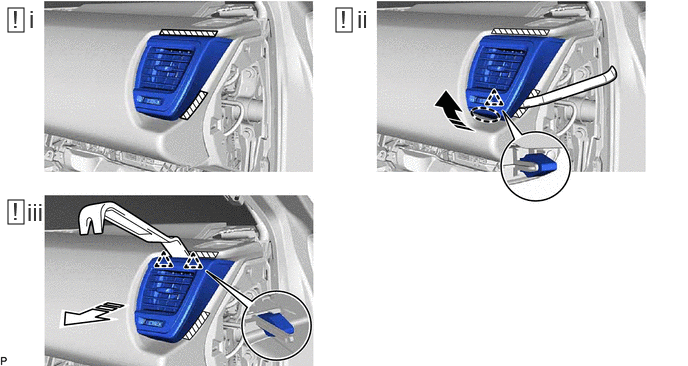

    1. GTY1053713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the clip as shown in the illustration.
      3. Using a moulding remover, disengage the 2 clips to remove the No. 2 instrument panel register assembly as shown in the illustration.
  38. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

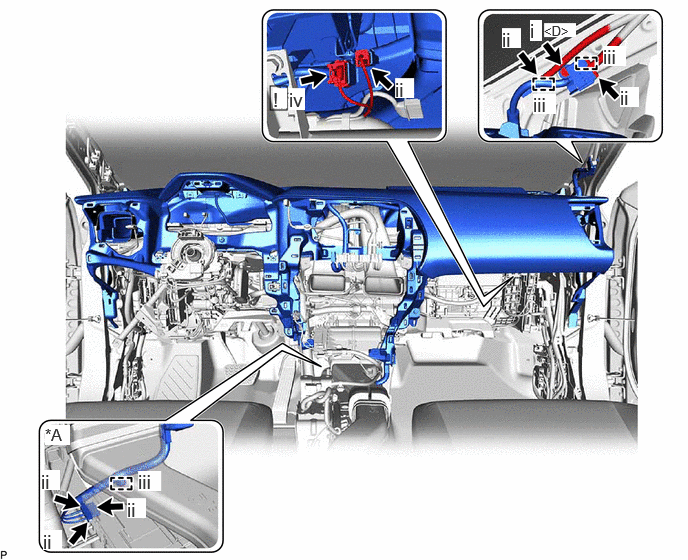

    1. GTY1057308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Telematics Transceiver - -
      1. Remove the bolt <D>.
      2. Disconnect each connector.
      3. Disengage the guide and each clamp.
      4. Disconnect the airbag connector.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector.

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2021 - ]

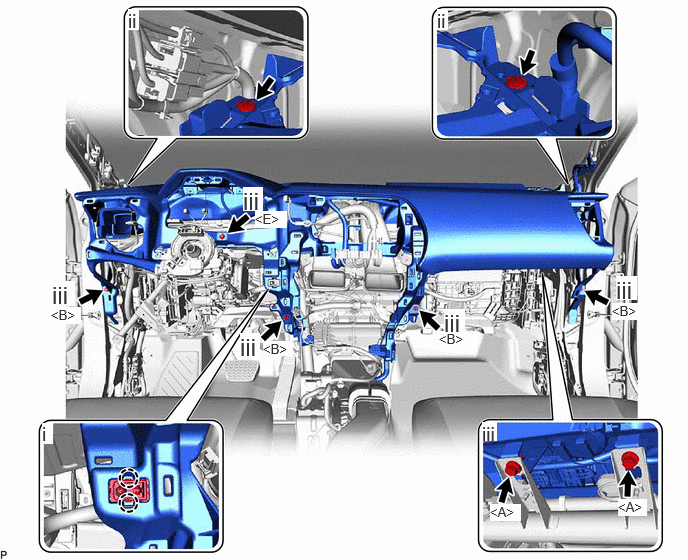

    2. GTY1052601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 claws to disconnect the cooler (room temp. sensor) thermistor.
      2. Remove the 2 clips.
      3. Remove the 2 bolts <A>, 4 bolts <B> and nut <E>.

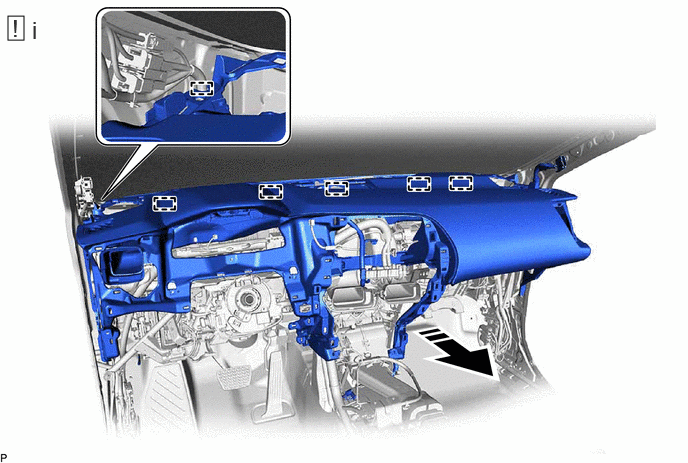

    3. GTY1053376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disengage the 5 guides and clamp as shown in the illustration to remove the instrument panel safety pad sub-assembly.
        NOTE:
        • Do not damage the instrument panel safety pad sub-assembly.
        • Do not allow the wire harnesses to interfere with the surrounding parts.
  39. REMOVE GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the glove compartment door lock cylinder assembly is necessary.

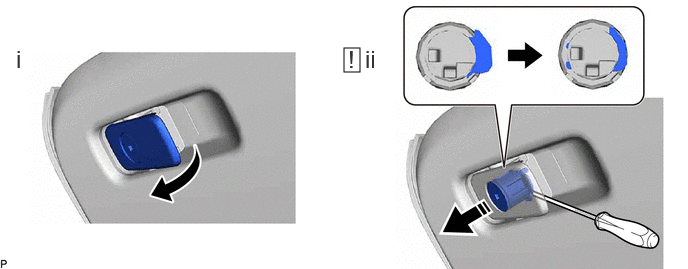

    1. GTY1053192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Move the glove compartment door lever as shown in the illustration.
      2. Using a screwdriver, press the cylinder lock plate to release it and pull out the glove compartment door lock cylinder assembly from the glove compartment door lever to remove it as shown in the illustration.
