Removal [11/2021 - ]: Procedure
- PRECAUTION
- for 14 Inch Display:
Refer to PRECAUTION [11/2021 - ]
- for 9.8 Inch Display:
Refer to PRECAUTION [11/2021 - ]
- for 14 Inch Display:
- REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to REMOVAL [11/2021 - ]
- REMOVE METER HOOD SUB-ASSEMBLY
Refer to PROCEDURE - Step 17 - REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
HINT:
The illustration shown is an example only. The illustration may differ from the actual parts according to the model.

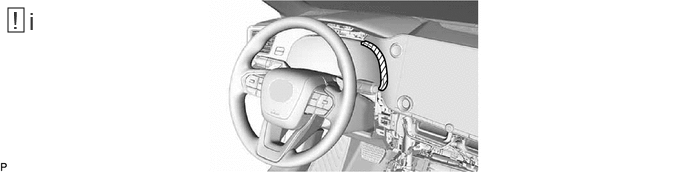

- Apply protective tape to the area shown in the illustration.

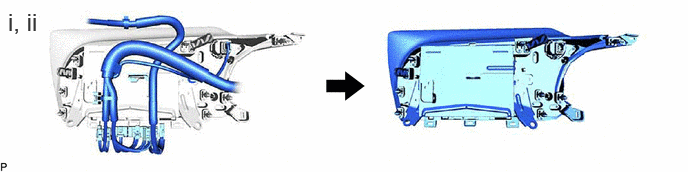

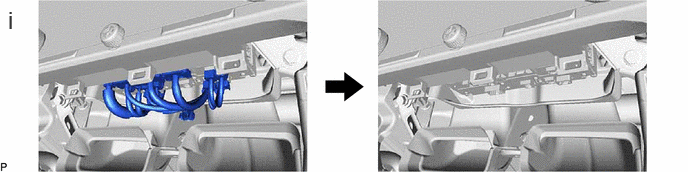

- Disconnect each connector.

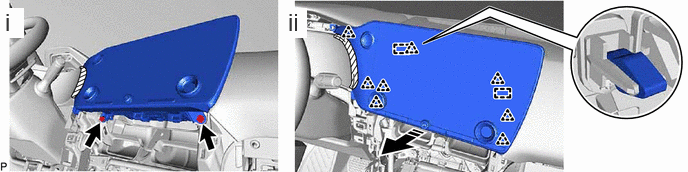

Remove in this Direction - - - Remove the 2 bolts.
- Disengage the 8 clips and 2 guides to separate the radio and display receiver assembly with bracket as shown in the illustration.
- Disengage each clamp.
- Disconnect each connector to remove the radio and display receiver assembly with bracket.
- REMOVE ENGINE SWITCH (for Gasoline Model)
- for A25A-FKS:
Refer to PROCEDURE - Step 2
- for T24A-FTS:
Refer to PROCEDURE - Step 2
- for A25A-FKS:
- REMOVE POWER SWITCH (for HEV Model)
Refer to PROCEDURE - Step 2

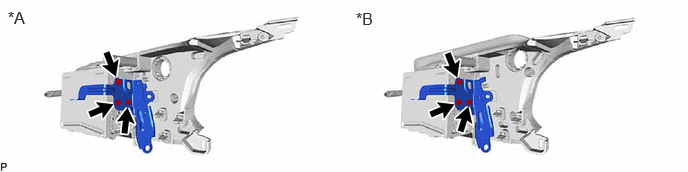

- REMOVE NO. 1 RADIO RECEIVER BRACKET

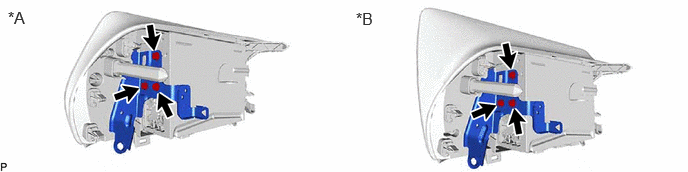

- REMOVE NO. 2 RADIO RECEIVER BRACKET
