Removal [11/2021 - ]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP (for Side)

    Refer to PROCEDURE - Step 12

  2. REMOVE FRONT PILLAR GARNISH (for Side)
    Refer to PROCEDURE - Step 19
  3. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)
    Refer to PROCEDURE - Step 29

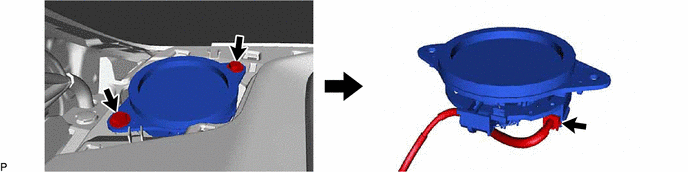

  4. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for Side)
    1. GTY1070130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH (for Center)
    Refer to PROCEDURE - Step 33
  6. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)
    Refer to PROCEDURE - Step 34

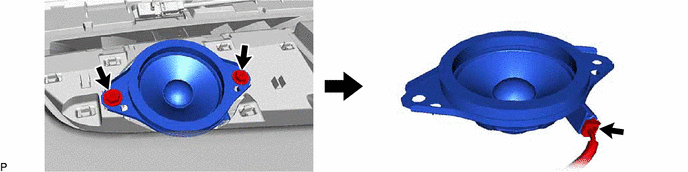

  7. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for Center)
    1. GTY1070420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
