Removal [11/2021 - ]: Procedure

  1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column)
    Refer to CUSTOMIZE PARAMETERS [11/2021 - ]
  2. STEERING WHEEL POSITION

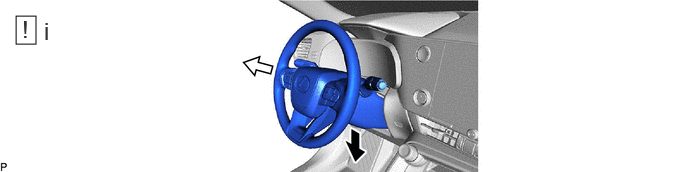

    1. GTY1070743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lower Extend
      1. Release the tilt and telescopic switch or lever and fully extend and lower the steering column sub-assembly.
  3. REMOVE LOWER STEERING COLUMN COVER
    NOTE:

    Removing the lower steering column cover in the incorrect order will cause the parts to break.

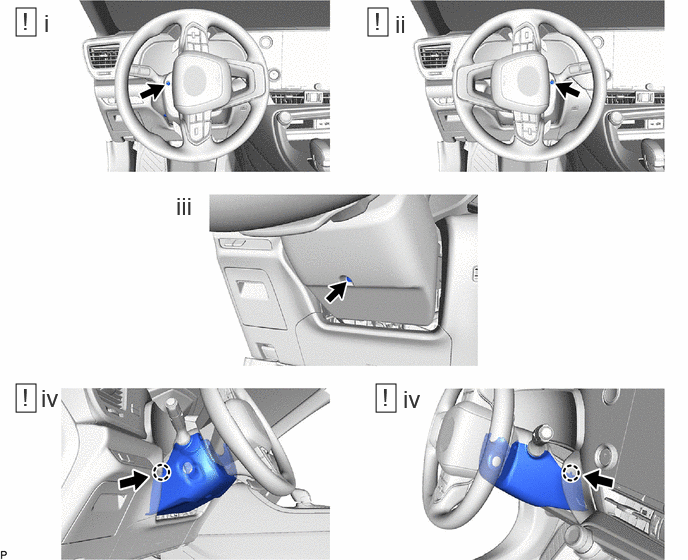

    1. GTY1070835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push - -
      1. Turn the steering wheel assembly to the left and remove the screw.
      2. Turn the steering wheel assembly to the right and remove the screw.
      3. Remove the screw.
      4. Push the lower steering column cover and disengage the 2 claws as shown in the illustration to remove the lower steering column cover.
  4. REMOVE UPPER STEERING COLUMN COVER

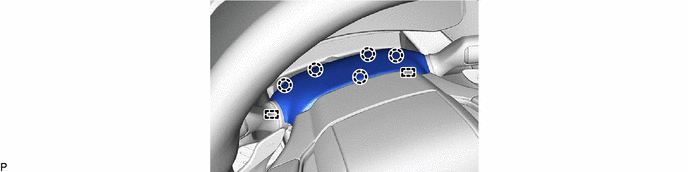

    1. GTY1071128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

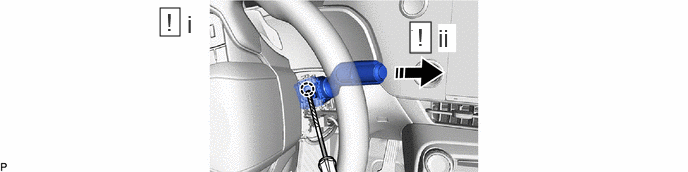

    1. GTY1070878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Turn the steering wheel assembly to the right.
      2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.
        NOTE:

        If the claw is pulled with excessive force, it may break.
