Removal [11/2021 - ]: Procedure

  1. PRECAUTION (w/ Headup Display)
    1. for 14 Inch Display:

      Refer to PRECAUTION [11/2021 - ]

    2. for 9.8 Inch Display:

      Refer to PRECAUTION [11/2021 - ]
  2. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTING (for Power Tilt and Power Telescopic Steering Column)
    Refer to PROCEDURE - Step 2 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 2 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]
  3. STEERING WHEEL POSITION (for Manual Tilt and Manual Telescopic Steering Column)
    Refer to PROCEDURE - Step 2
  4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    Refer to PROCEDURE - Step 2 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 2 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]
  5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    Refer to PROCEDURE - Step 3 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 3 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 3 [03/2024 - ]
  6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. for UA81F:

      Refer to PROCEDURE - Step 1

    2. for UB80E / UB80F:

      Refer to PROCEDURE - Step 1

    3. for P810:

      Refer to PROCEDURE - Step 1

  7. REMOVE SHIFTING HOLE COVER ASSEMBLY

    Refer to PROCEDURE - Step 5 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 5 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 5 [03/2024 - ]

  8. REMOVE CONSOLE BOX HOLE COVER

    Refer to PROCEDURE - Step 6 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 6 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 6 [03/2024 - ]

  9. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 7 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 7 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 7 [03/2024 - ]

  10. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 8 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 8 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 8 [03/2024 - ]

  11. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 9 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 9 [03/2024 - ]

  12. REMOVE CONSOLE PANEL

    Refer to PROCEDURE - Step 11 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 11 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 11 [03/2024 - ]

  13. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 13

  14. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 15

  15. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 15 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 15 [03/2024 - ]

  16. REMOVE INSTRUMENT PANEL FINISH PANEL
    Refer to PROCEDURE - Step 16 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 16 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 16 [03/2024 - ]
  17. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 12

  18. REMOVE NO. 1 INSTRUMENT SIDE PANEL
    Refer to PROCEDURE - Step 13
  19. REMOVE LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  20. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  21. REMOVE METER HOOD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 17
  22. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    Refer to PROCEDURE - Step 18
  23. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
    Refer to PROCEDURE - Step 19
  24. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
    Refer to PROCEDURE - Step 4

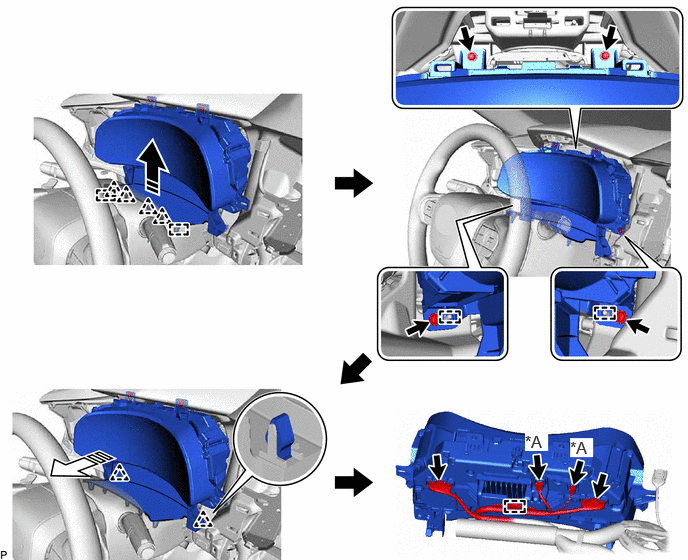

  25. REMOVE COMBINATION METER ASSEMBLY WITH INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. GTY1069904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Headup Display - -
      Remove in this Direction (1) Remove in this Direction (2)

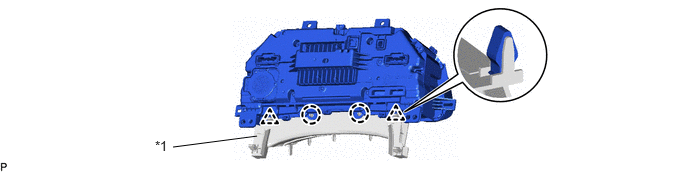

  26. REMOVE COMBINATION METER ASSEMBLY
    1. GTY1068977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Instrument Cluster Finish Panel Sub-assembly - -
