Home >> Lexus >> 2022 >> NX 450h+ Base >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim - Service Information (2 Of 2) >> Roof Headlining >> Removal [11/2021 - 03/2024] >> Procedure

Removal [11/2021 - 03/2024]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY
    1. GTY1052819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE DECK BOARD ASSEMBLY
    1. GTY1052949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BATTERY SERVICE COVER PLATE
    1. GTY1052952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [11/2021 - ]

  5. REMOVE FRONT SEAT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  6. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  7. REMOVE REAR DECK FLOOR BOX
    1. GTY1052968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR FLOOR BOARD REAR RH
    1. GTY1057126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE JUNCTION BLOCK SERVICE COVER
    1. GTY1052955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR FLOOR BOARD REAR LH
    1. GTY1052956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT DECK FLOOR BOX
    1. GTY1053852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE DECK BOARD SET SUPPORT
    1. GTY1052890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE DOOR SCUFF PLATE ASSEMBLY LH
    1. GTY1055209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
  14. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  15. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. GTY1054614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  16. REMOVE COWL SIDE TRIM BOARD RH
    1. Use the same procedure as for the cowl side trim sub-assembly LH.
  17. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 3

  18. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure as for the LH side.
  19. REMOVE FRONT PILLAR GARNISH LH

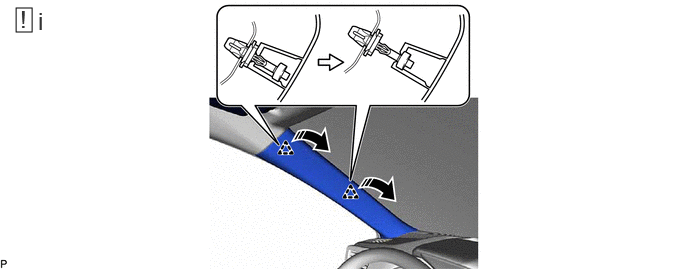

    1. GTY1056789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull in this Direction - -
      1. Pull the upper part of the front pillar garnish LH toward the inside of the cabin as shown in the illustration to disengage the front pillar garnish LH from the base of the 2 front pillar garnish clips.

        HINT:

        Let the front pillar garnish LH hang from the 2 front pillar garnish clips.

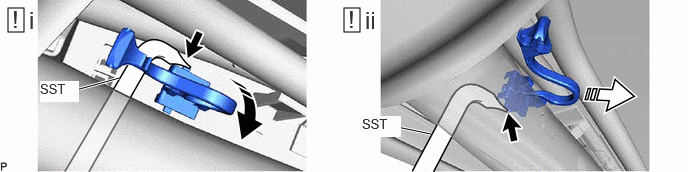

    2. GTY1056808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull in this Direction Pull in this Direction
      1. Pull down the front pillar garnish clip while pushing the side of the release lever with SST as shown in the illustration.
        • SST: 09813-00020
      2. While pulling the front pillar garnish clip, push the side of the release lever with SST as shown in the illustration and then separate the front pillar garnish clip from the vehicle body.
    3. GTY1056941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disengage the 2 guides to remove the front pillar garnish LH as shown in the illustration.
    4. GTY1056986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Protect the curtain shield airbag assembly LH.

        1. Cover the curtain shield airbag assembly LH with a protective cover, such as a cloth, and secure the edges of the cover with tape as shown in the illustration.

        NOTE:

        Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish LH is removed.

    5. GTY1056369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 front pillar garnish clips from the front pillar garnish LH.
  20. REMOVE FRONT PILLAR GARNISH RH
    1. Use the same procedure as for the LH side.
  21. REMOVE REAR DOOR SCUFF PLATE LH
    1. GTY1054429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    2. GTY1054228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    3. GTY1054939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  22. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure as for the LH side.
  23. REMOVE NO. 3 BATTERY SERVICE COVER BOARD
    1. GTY1053409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  24. REMOVE NO. 2 BATTERY SERVICE COVER BOARD
    1. Use the same procedure as for the No. 3 battery service cover board.
  25. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 2

  26. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure as for the LH side.
  27. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Use the same procedure for the LH side and RH side.

      Refer to PROCEDURE - Step 8

  28. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 9

  29. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  30. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. GTY1055427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  31. REMOVE CENTER PILLAR LOWER GARNISH RH
    1. Use the same procedure as for the LH side.
  32. REMOVE CENTER PILLER GARNISH ASSEMBLY LH
    1. GTY1054120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  33. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  34. REMOVE REAR FLOOR FINISH PLATE
    1. GTY1052886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 1 SIDE TRIM BASE COVER LH

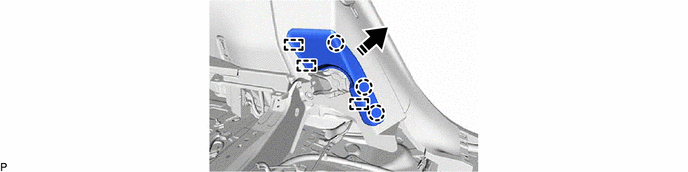

    1. GTY1056842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  36. REMOVE NO. 1 SIDE TRIM BASE COVER RH
    1. Use the same procedure as for the LH side.
  37. REMOVE REAR SEAT SIDE GARNISH LH
    1. GTY1056621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
  38. REMOVE REAR SEAT SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  39. REMOVE ROPE HOOK ASSEMBLY
    1. GTY1053866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and open the cover.
      2. Remove the bolt and rope hook assembly.
      3. Use the same procedure for the LH side and RH side.
  40. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

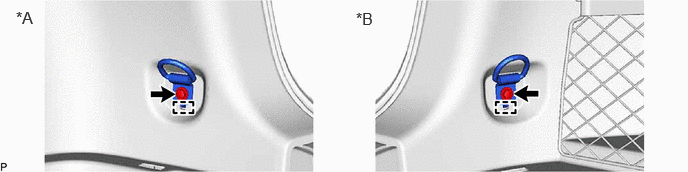

    1. GTY1054007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for RH Side *B for LH Side
  41. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
    1. GTY1054488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Rotation Direction Remove in this Direction
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and turn the No. 1 luggage compartment trim hook as shown in the illustration.
      2. Disengage the claw and guide to remove the No. 1 luggage compartment trim hook as shown in the illustration.
      3. Use the same procedure for the LH side and RH side.
  42. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

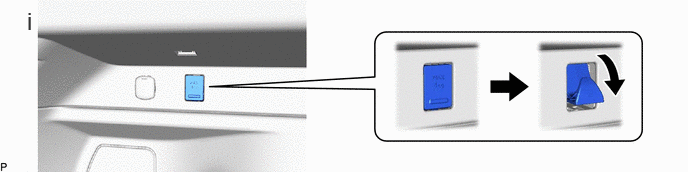

    1. GTY1056295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Lower the No. 1 deck side trim hook as shown in the illustration.
    2. GTY1052903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the clip as shown in the illustration.
    3. GTY1053292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 3 clips, 5 claws and 3 guides to remove the deck trim side panel assembly LH.
    4. GTY1056082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
    5. GTY1055052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
  43. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. GTY1052755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Lower the No. 1 deck side trim hook as shown in the illustration.
    2. GTY1052904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the clip as shown in the illustration.
    3. GTY1052665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 3 clips, 5 claws and 3 guides to remove the deck trim side panel assembly RH.
    4. GTY1056139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
  44. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. GTY1056069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1054519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  45. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  46. REMOVE INTEGRATION CONTROL SUPPLY

    Refer to REMOVAL [11/2021 - ]

  47. REMOVE NO. 2 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 18

  48. REMOVE NO. 1 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 19

  49. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

    Refer to PROCEDURE - Step 5

  50. REMOVE LOWER CONSOLE BOX MOUNTING BRACKET

    Refer to PROCEDURE - Step 6

  51. REMOVE VISOR BRACKET COVER LH
    1. GTY1054094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE VISOR ASSEMBLY LH
    1. GTY1055294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE VISOR BRACKET COVER RH
    1. Use the same procedure as for the LH side.
  54. REMOVE VISOR ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  55. REMOVE ASSIST GRIP COVER
    1. GTY1056992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45° - -
      Remove in this Direction - -
      1. Insert SST into the cutout of the assist grip cover as shown in the illustration.
        • SST: 09813-00010
        NOTE:

        To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

      2. Pull SST as shown in the illustration to disengage the claw.
        NOTE:

        To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

        HINT:

        Use the same procedure for the claw on the other side of the assist grip cover.

      3. Remove the assist grip cover.
      4. Use the same procedure for all assist grip covers.
  56. REMOVE ASSIST GRIP
    1. GTY1053627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
      Remove in this Direction - -
  57. REMOVE REAR ASSIST GRIP LH
    1. Use the same procedure as for the assist grip.
  58. REMOVE REAR ASSIST GRIP RH
    1. Use the same procedure as for the assist grip.
  59. REMOVE FRONT ROOF HEADLINING TRIM
    1. GTY1059367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a moulding remover, disengage the claw as shown in the illustration.
    2. GTY1052851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Disengage the 3 claws as shown in the illustration.
    3. GTY1053828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disengage the guide to remove the front roof headlining trim as shown in the illustration.
  60. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  61. REMOVE VANITY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  62. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  63. REMOVE NO. 2 FORWARD RECOGNITION COVER
    Refer to PROCEDURE - Step 2
  64. REMOVE NO. 1 FORWARD RECOGNITION COVER
    Refer to PROCEDURE - Step 3
  65. REMOVE RAIN SENSOR

    Refer to REMOVAL [11/2021 - ]

  66. REMOVE ROOF HEADLINING ASSEMBLY

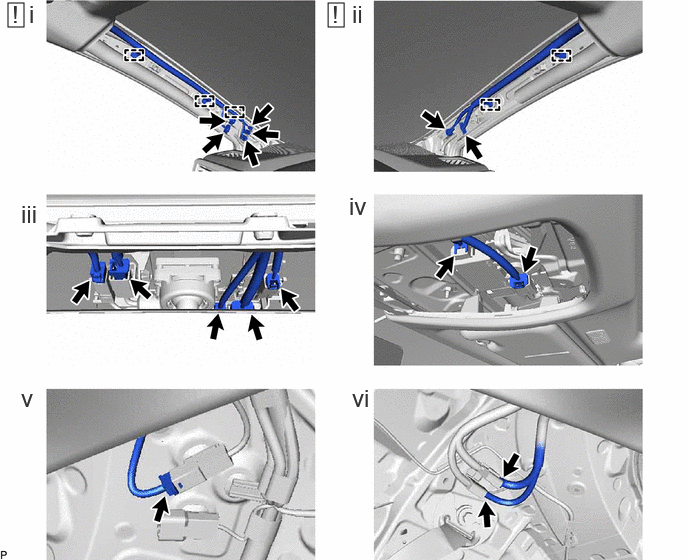

    1. GTY1055719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      As the illustration shown is an example, the actual details may differ.

      1. for Front Pillar LH Side:

        1. Remove the protective cover.

        2. Disconnect each connector.

        3. Disengage the 3 clamps.

        4. Install the protective cover.

      2. for Front Pillar RH Side:

        1. Remove the protective cover.

        2. Disconnect 2 connectors.

        3. Disengage the 2 clamps.

        4. Install the protective cover.

      3. for Windshield Glass Side:

        1. Disconnect each connector.

      4. for Map Light Side:

        1. Disconnect each connector.

      5. for Rear Pillar LH Side with Digital Inner Mirror:

        1. Disconnect the connector.

      6. for Rear Pillar RH Side:

        1. Disconnect each connector.

    2. Fig 1: Visor Holders With Removal Procedure
      GTY1056952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Rotation Direction Remove in this Direction
      1. Turn each visor holders approximately 45° and remove them as indicated by the arrows, in the order shown in the illustration.
      2. Disengage the 4 claws as shown in the illustration to remove the base of each visor holder.
    3. GTY1055645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener *b Guide
      Remove in this Direction - -
      1. Disengage the 3 clips.
      2. Disengage the 6 fasteners and guide to remove the roof headlining assembly.
      3. Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.
        NOTE:

        Do not damage the roof headlining assembly or vehicle interior.

scientia non olet · About LEMON Manuals
