Home >> Lexus >> 2022 >> NX 450h+ Base >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System (Int) - Service Information >> Room Light >> Removal [11/2021 - ] >> Procedure

Removal [11/2021 - ]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. GTY1069946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front Move in this Direction
      1. Using the moulding remover as shown in the illustration, raise the roof headlining assembly until the clip of the No. 1 room light assembly can be seen.
        NOTE:

        Be careful not to damage the roof headlining assembly.

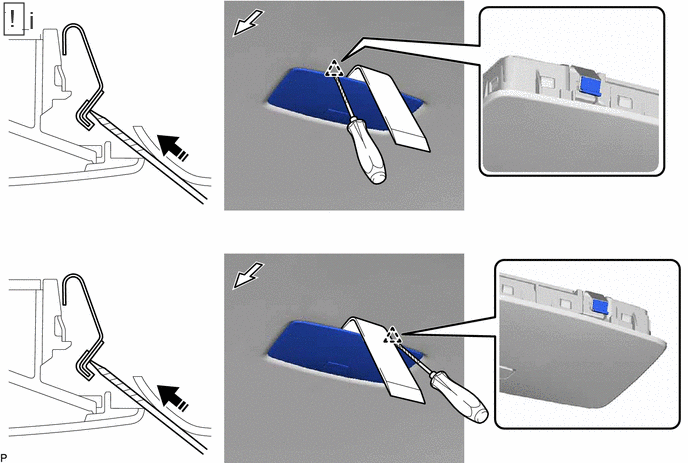

    2. GTY1068634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front Push in this Direction
      1. While continuing to hold the moulding remover, disengage the 2 clips using a screwdriver wrapped with protective tape.
        NOTE:

        Be careful not to damage the roof headlining assembly.

    3. GTY1069260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front Remove in this Direction
      1. Disengage the 2 guides as shown in the illustration
      2. Disconnect the connector to remove the No. 1 room light assembly.
