Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    Refer to PRECAUTION [11/2021 - ]
  2. REMOVE INTEGRATION CONTROL SUPPLY

    Refer to REMOVAL [11/2021 - ]

  3. REMOVE NO. 2 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 18

  4. REMOVE NO. 1 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 19

  5. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

    Refer to PROCEDURE - Step 5

  6. REMOVE LOWER CONSOLE BOX MOUNTING BRACKET

    HINT:

    The illustration shown is an example only. The illustration may differ from the actual parts according to the model.

    1. GTY1069477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1069479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. GTY1069469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

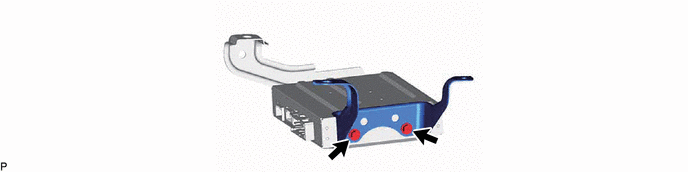

  8. REMOVE NO. 1 AMPLIFIER BRACKET
    1. GTY1072364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 AMPLIFIER BRACKET
    1. GTY1072927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
