Removal [12/2021 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
    • for HFC-134a (R134a):

      See step  2

    • for HFO-1234yf (R1234yf):

      See step  2

  3. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
    Refer to PROCEDURE - Step 1
  4. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  5. REMOVE WHEEL ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  6. REMOVE QUARTER PANEL REAR MUDGUARD RH
    1. Use the same procedure described for the LH side.

      Refer to REMOVAL [12/2021 - ]

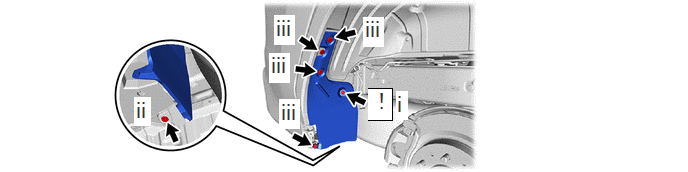

  7. REMOVE REAR BUMPER SIDE SEAL RH
    1. GTY1070818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 4 mm hexagon socket wrench, remove the screw.
      2. Remove the grommet.
      3. Remove the 4 clips and rear bumper side seal RH.

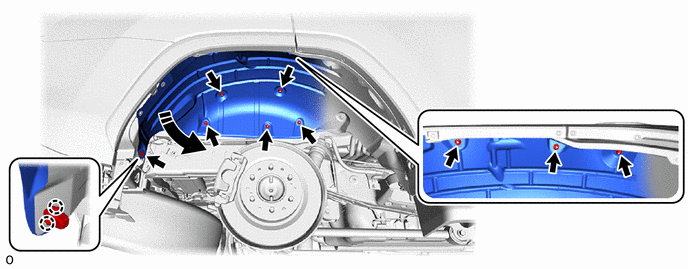

  8. REMOVE REAR WHEEL HOUSE LINER RH
    1. GTY1070031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  9. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (for 7-Passenger)
    1. Use the same procedure described for the LH side.

      Refer to REMOVAL [12/2021 - ]

  10. REMOVE TONNEAU COVER ASSEMBLY (except 7-Passenger, w/ Tonneau Cover)

    Refer to PROCEDURE - Step 4

  11. REMOVE ROPE HOOK ASSEMBLY (except 7-Passenger)
    Refer to PROCEDURE - Step 11
  12. REMOVE REAR DECK TRIM COVER (except 7-Passenger)
    Refer to PROCEDURE - Step 12
  13. REMOVE DECK BOARD ASSEMBLY (except 7-Passenger)

    Refer to PROCEDURE - Step 13

  14. REMOVE REAR FLOOR BOARD REAR LH (except 7-Passenger)

    Refer to PROCEDURE - Step 14

  15. REMOVE REAR FLOOR BOARD REAR RH (except 7-Passenger)
    1. Use the same procedure described for the LH side.
  16. REMOVE REAR DECK FLOOR BOX (except 7-Passenger)

    Refer to PROCEDURE - Step 16

  17. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (except 7-Passenger)

    Refer to PROCEDURE - Step 17

  18. REMOVE REAR NO. 1 SEAT ASSEMBLY RH (for 4-Passenger)
    1. Use the same procedure described for the LH side.

      Refer to REMOVAL [12/2021 - ]

  19. REMOVE OUTER LAP BELT ANCHOR COVER (except 4-Passenger)

    Refer to PROCEDURE - Step 15

  20. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR) (except 4-Passenger)
    1. Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 16

  21. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR) (for 7-Passenger)
    1. Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 17

  22. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 24

  23. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (except 4-Passenger)
    Refer to PROCEDURE - Step 38
  24. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 39

  25. REMOVE QUARTER TRIM PANEL ASSEMBLY RH

    Refer to PROCEDURE - Step 41

  26. REMOVE INNER ROOF SIDE GARNISH RH

    Refer to PROCEDURE - Step 45

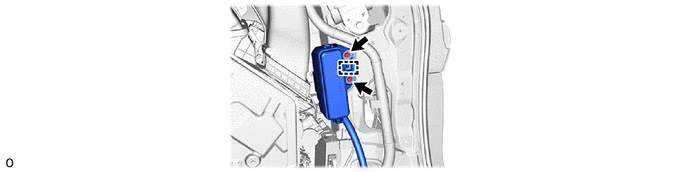

  27. DISCONNECT FLOOR WIRE
    1. GTY1071021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

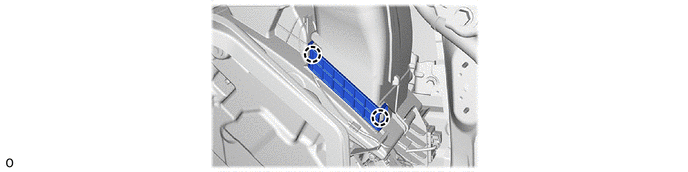

  28. REMOVE COOLER PLATE
    1. GTY1071436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR NO. 9 SIDE AIR DUCT

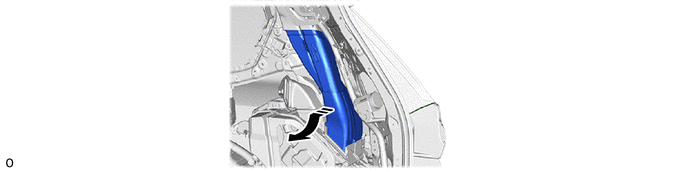

    1. GTY1070217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  30. DISCONNECT INLET HEATER WATER HOSE H

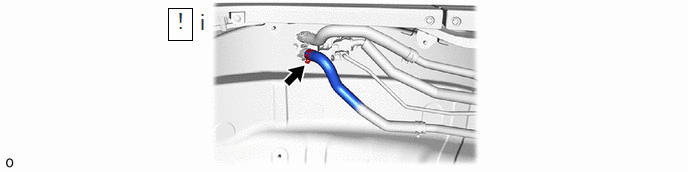

    1. GTY1070489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, grip the claws of the clip and slide the clip to disconnect the inlet heater water hose H.
        NOTE:
        • Do not apply excessive force to the inlet heater water hose H.
        • Prepare a drain pan or cloth in case the coolant leaks.

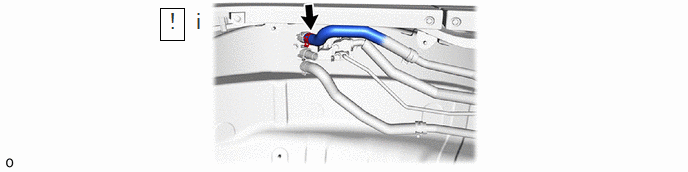

  31. DISCONNECT OUTLET HEATER WATER HOSE G
    1. GTY1071479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, grip the claws of the clip and slide the clip to disconnect the outlet heater water hose G.
        NOTE:
        • Do not apply excessive force to the outlet heater water hose G.
        • Prepare a drain pan or cloth in case the coolant leaks.

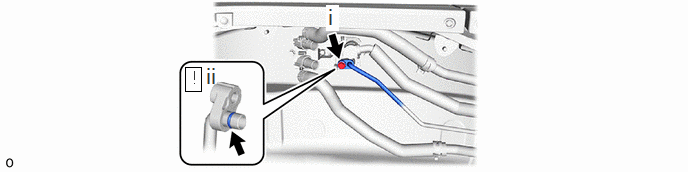

  32. DISCONNECT NO. 2 LIQUID TUBE
    1. GTY1070526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the No. 2 liquid tube.
      2. Remove the O-ring from the No. 2 liquid tube.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

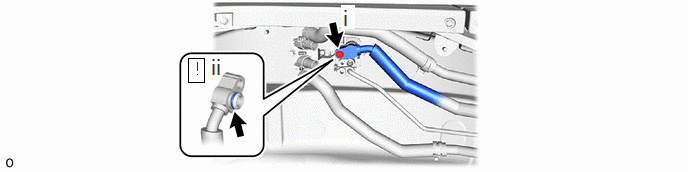

  33. DISCONNECT NO. 2 SUCTION TUBE
    1. GTY1071236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the No. 2 suction tube.
      2. Remove the O-ring from the No. 2 suction tube.
        NOTE:

        Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

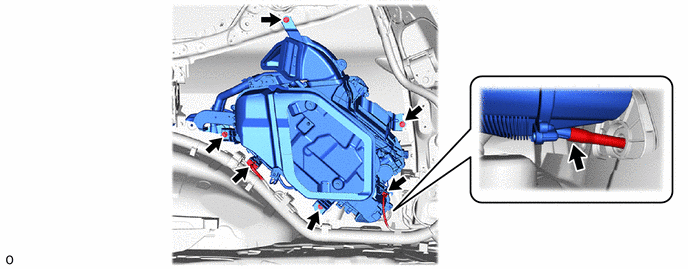

  34. REMOVE AIR CONDITIONING BLOWER ASSEMBLY

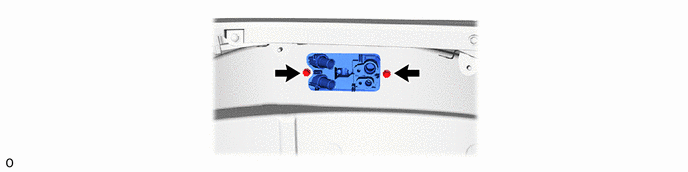

    1. GTY1071434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1071435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR BUMPER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the No. 4 cooler unit Drain hose is necessary.

  36. REMOVE NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR

    HINT:

    Perform this procedure only when replacement of the No. 4 cooler unit Drain hose is necessary.

    Refer to PROCEDURE - Step 31

  37. REMOVE NO. 4 COOLER UNIT DRAIN HOSE

    HINT:

    Perform this procedure only when replacement of the No. 4 cooler unit Drain hose is necessary.

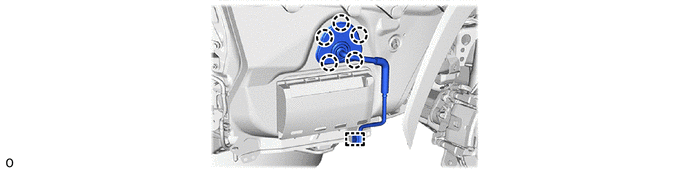

    1. GTY1071433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR NO. 2 SEAT ASSEMBLY LH (for 7-Passenger)

    Refer to REMOVAL [12/2021 - ]

  39. REMOVE REAR NO. 1 SEAT ASSEMBLY RH (except 4-Passenger)

    Refer to REMOVAL [12/2021 - ]

  40. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
  41. REMOVE OUTER LAP BELT ANCHOR COVER

    Refer to PROCEDURE - Step 15

  42. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 16

  43. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR) (for 7-Passenger)

    Refer to PROCEDURE - Step 17

  44. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 24

  45. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (except 4-Passenger)
    Refer to PROCEDURE - Step 38
  46. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 39

  47. REMOVE QUARTER TRIM PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 40

  48. REMOVE REAR NO. 1 SEAT PROTECTOR (except 4-Passenger)

    Refer to PROCEDURE - Step 6

  49. REMOVE REAR NO. 2 SEAT PROTECTOR (except 4-Passenger)

    Refer to PROCEDURE - Step 7

  50. REMOVE REAR NO. 3 SEAT PROTECTOR (except 4-Passenger)
    1. Use the same procedure as for the rear No. 1 seat protector.
  51. REMOVE REAR NO. 4 SEAT PROTECTOR (except 4-Passenger)
    1. Use the same procedure as for the rear No. 1 seat protector.
  52. REMOVE REAR NO. 8 AIR DUCT (for 4-Passenger)

    Refer to PROCEDURE - Step 19

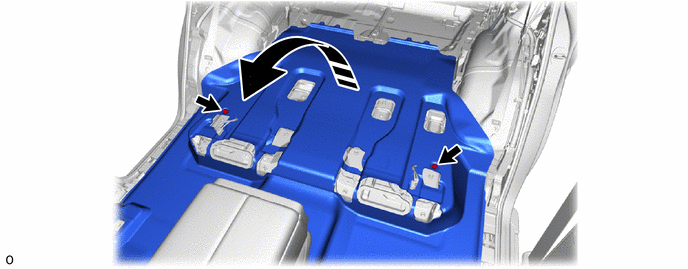

  53. REMOVE FRONT FLOOR CARPET ASSEMBLY
    1. except 4-Passenger
      GTY1069366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. for 4-Passenger

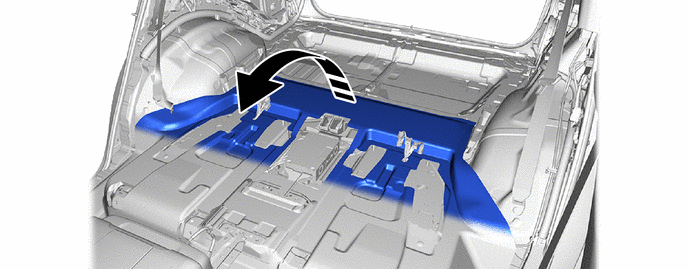

      GTY1070714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

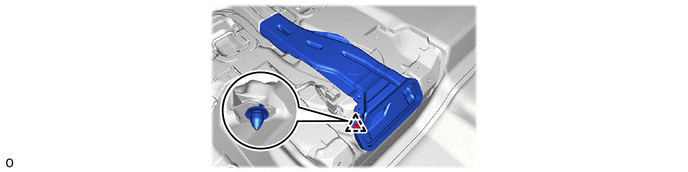

  54. REMOVE REAR NO. 4 SIDE AIR DUCT (except 4-Passenger)
    1. GTY1070956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

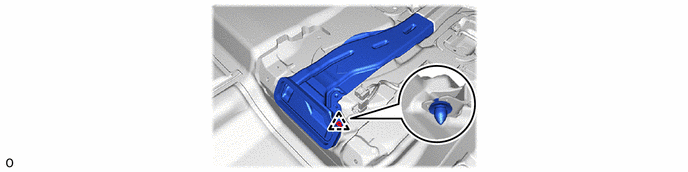

  55. REMOVE REAR NO. 6 SIDE AIR DUCT (except 4-Passenger)
    1. GTY1071429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE REAR NO. 7 AIR DUCT
    1. except 4-Passenger

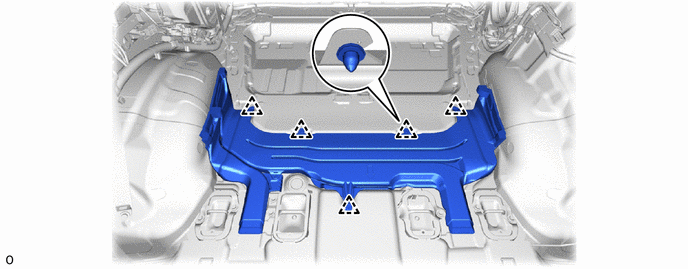

      GTY1069076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

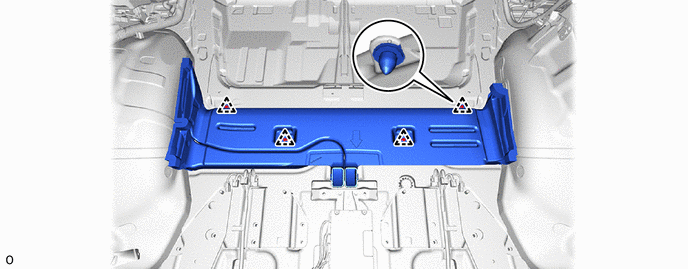

    2. for 4-Passenger
      GTY1070969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  58. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH (except 5-Passenger)
    HINT:
    Use the same procedure described for the LH side.
    Refer to PROCEDURE - Step 3
  59. REMOVE NO. 1 ROOF SIDE INNER GARNISH SPACER RH (for 5-Passenger)

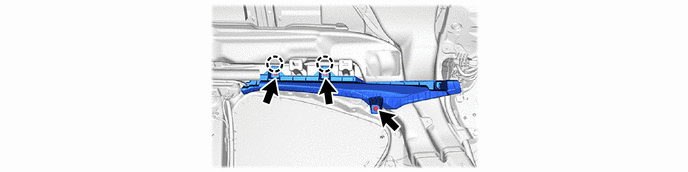

    1. GTY1070962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

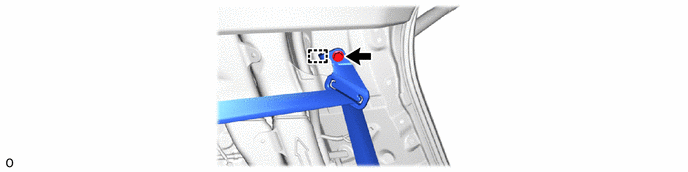

  60. REMOVE REAR NO. 1 SEAT BELT ASSEMBLY OUTER RH (SHOULDER ANCHOR) (for 4-Passenger)
    1. GTY1071681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. REMOVE REAR NO. 2 ROOF AIR DUCT

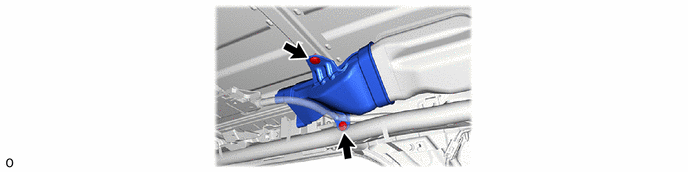

    1. GTY1070964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

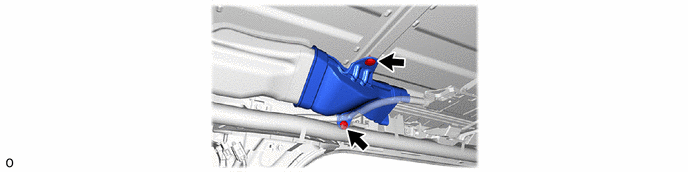

  62. REMOVE REAR NO. 4 ROOF AIR DUCT
    1. GTY1070950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

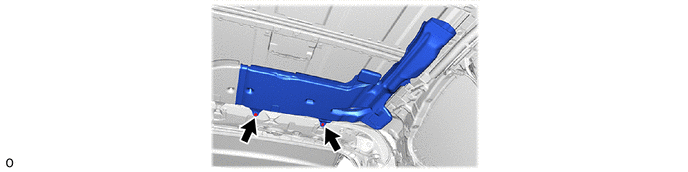

  63. REMOVE REAR NO. 3 ROOF AIR DUCT
    1. GTY1070951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

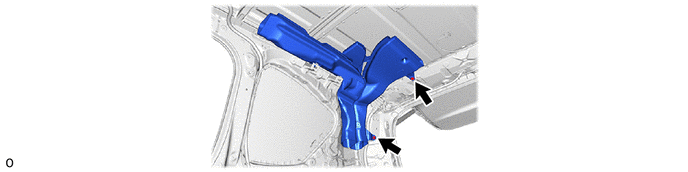

  64. REMOVE REAR NO. 1 ROOF AIR DUCT
    1. GTY1070947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
