  1. REMOVE FRONT TONNEAU COVER HINGE COVER

    Refer to PROCEDURE - Step 3

  2. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. REMOVE REAR SEAT CONSOLE TABLE PLATE ASSEMBLY

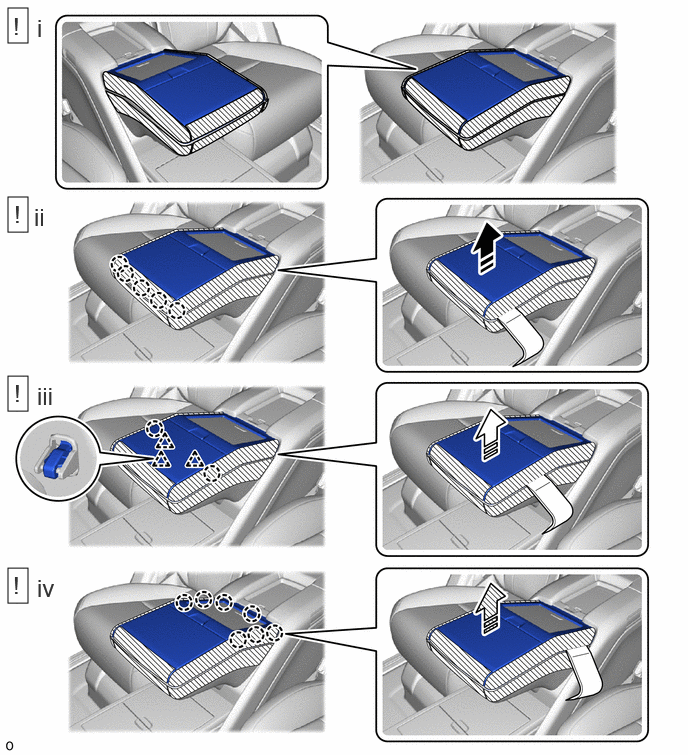

    1. GTY1056693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -
      1. Apply the protective tape as shown in the illustration.
      2. Using moulding remove D, detach the claw as shown in the illustration.
      3. Using moulding remove D, detach the claw and clip as shown in the illustration.
      4. Using moulding remove D, detach the claw and remove the rear seat console table plate assembly as shown in the illustration.
  4. REMOVE REAR SEAT CONSOLE FRONT TABLE PLATE FRAME

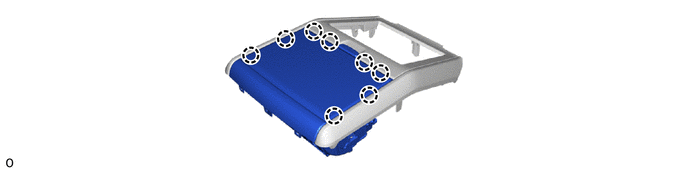

    1. GTY1056482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CONSOLE BOX INSERT
    1. GTY1056483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SEAT CONSOLE TABLE ASSEMBLY

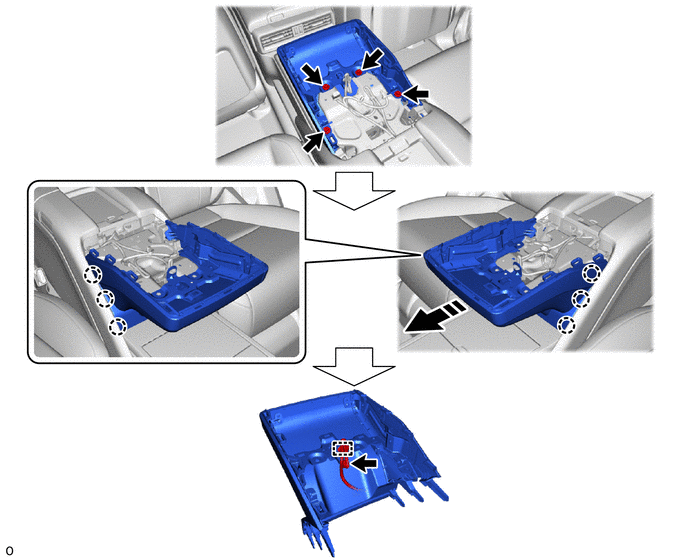

    1. GTY1055819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  7. REMOVE COOLER CONTROL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. REMOVE REAR SEAT CONSOLE BOX COVER LH

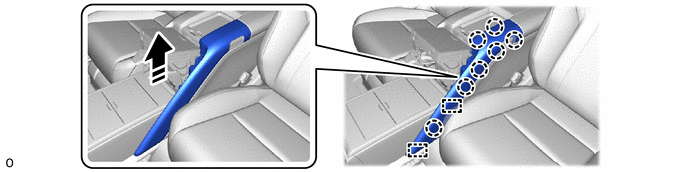

    1. GTY1056577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  9. REMOVE REAR SEAT CONSOLE BOX COVER RH
    1. Use the same procedure described for the LH side.
  10. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

    Refer to PROCEDURE - Step 5

  11. REMOVE REAR SEAT CONSOLE BOX FRONT PANEL

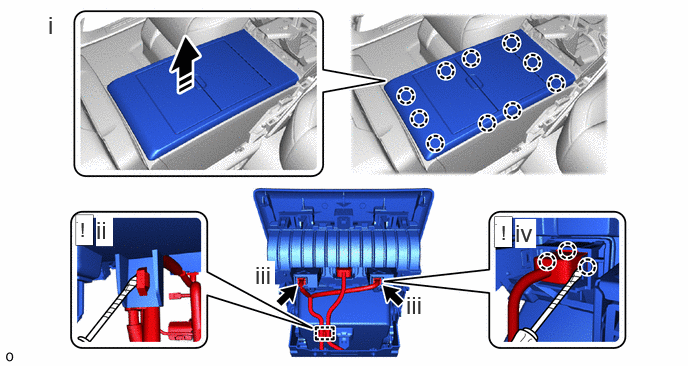

    1. GTY1055713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Detach the claw and remove the rear seat console box front panel as shown in the illustration.
      2. Using a thin-bladed screwdriver, detach the clamp.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      3. Disconnect the 2 connector.
      4. Using a thin-bladed screwdriver, detach the claw and remove the connector cover.
  12. REMOVE REAR NO. 1 AIR DUCT

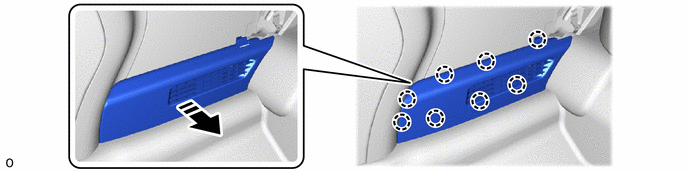

    1. GTY1056257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  13. REMOVE REAR NO. 2 AIR DUCT
    1. Use the same procedure described for the rear No. 1 air duct.
  14. REMOVE REAR SEAT CONSOLE BOX REAR PANEL

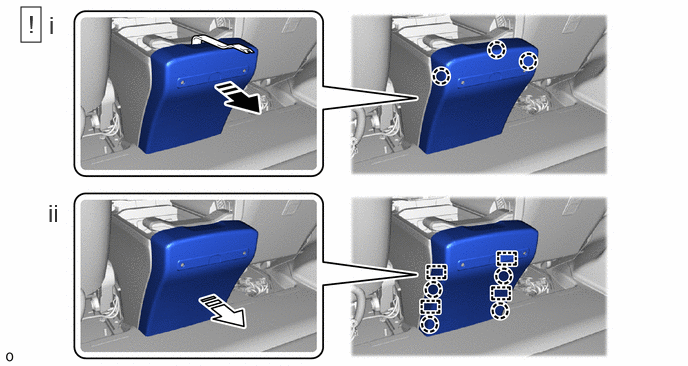

    1. GTY1055732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Using moulding remove B, detach the claw as shown in the illustration.
      2. Detach the claw and guide and remove the rear seat console box rear panel as shown in the illustration.
  15. REMOVE REAR SEAT CONSOLE ARMREST SUB-ASSEMBLY

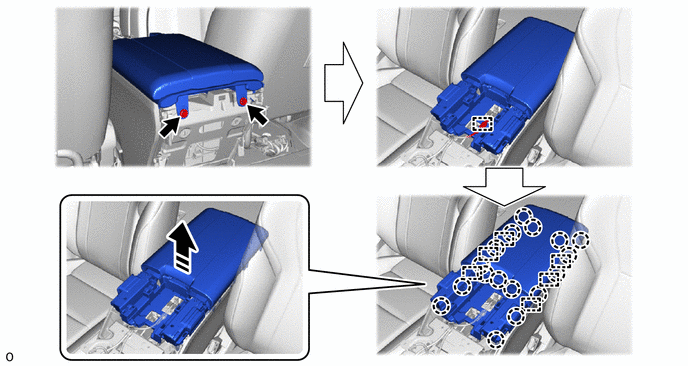

    1. GTY1056152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  16. REMOVE CONSOLE BOX CARPET

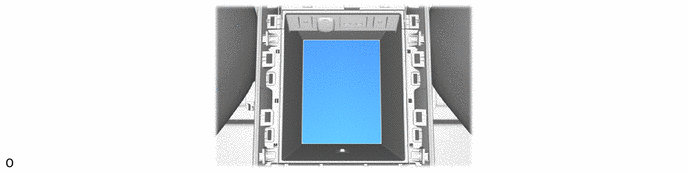

    1. GTY1056464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR CONSOLE BOX COVER

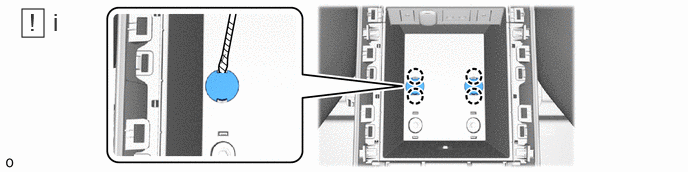

    1. GTY1056729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw and remove the rear console box cover.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  18. REMOVE REAR SEAT CONSOLE BOX ASSEMBLY

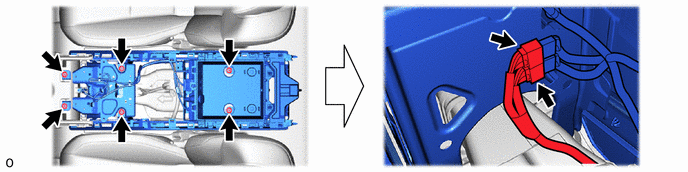

    1. GTY1056470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR NO. 8 AIR DUCT

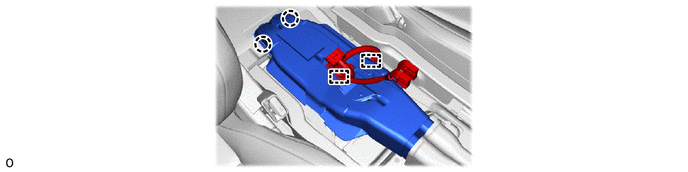

    1. GTY1056471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR SEAT CONSOLE BOX LOWER PANEL

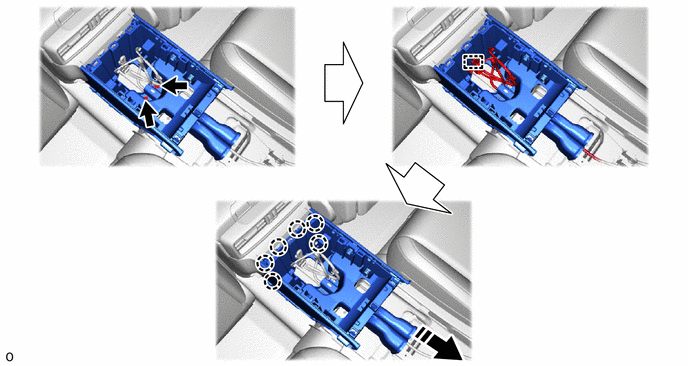

    1. GTY1056879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
