Removal [12/2021 - ]: Procedure
- PRECAUTION WARNING:
Be sure to read precaution thoroughly before servicing.
Refer to PRECAUTION [12/2021 - ]
NOTE:After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
- DRAIN WINDSHIELD WASHER FLUID
Refer to REMOVAL [12/2021 - ]
- REMOVE FRONT TONNEAU COVER HINGE COVER (for 4-Passenger)

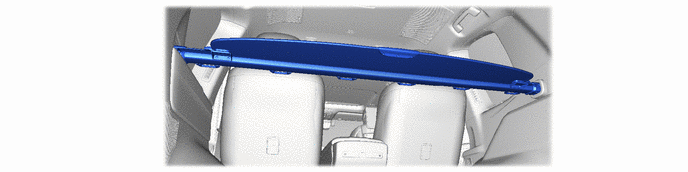

- REMOVE TONNEAU COVER ASSEMBLY
- REMOVE FRONT SEAT ASSEMBLY LH
Refer to REMOVAL [12/2021 - ]
- REMOVE FRONT SEAT ASSEMBLY RH
- w/o Folding Headrest:
Use the same procedure described for the LH side.
- w/ Folding Headrest:
Refer to REMOVAL [12/2021 - ]
- w/o Folding Headrest:
- REMOVE REAR NO. 1 SEAT ASSEMBLY RH
- for 40/20/40 Split Seat Type RH Side:
Refer to REMOVAL [12/2021 - ]
- for VIP Captain Seat:
Use the same procedure described for the LH side.
Refer to REMOVAL [12/2021 - ]
- for 40/20/40 Split Seat Type RH Side:
- REMOVE REAR NO. 1 SEAT ASSEMBLY LH
- for 40/20/40 Split Seat Type LH Side:
Refer to REMOVAL [12/2021 - ]
- for VIP Captain Seat:
Refer to REMOVAL [12/2021 - ]
- for 40/20/40 Split Seat Type LH Side:
- REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/ Rear No. 2 Seat)
Refer to REMOVAL [12/2021 - ]
- REMOVE REAR NO. 2 SEAT ASSEMBLY RH (w/ Rear No. 2 Seat)
- Use the same procedure described for the LH side.
- REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)

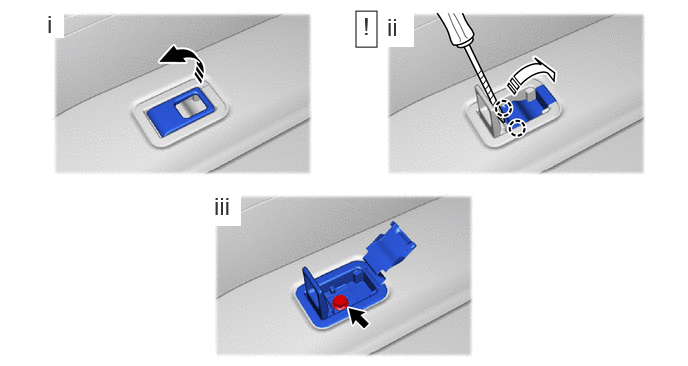

Remove in this Direction (1) Remove in this Direction (2) - Lift up the rope hook as shown in the illustration.
- Using a thin-bladed screwdriver, lift up the rope hook case as shown in the illustration.
HINT:
Tape the thin-bladed screwdriver tip before use.
- Remove the bolt and rope hook assembly.
HINT:
Use the same procedure for the other side.

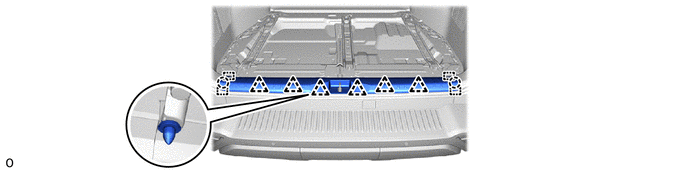

- REMOVE REAR DECK TRIM COVER (w/o Rear No. 2 Seat)

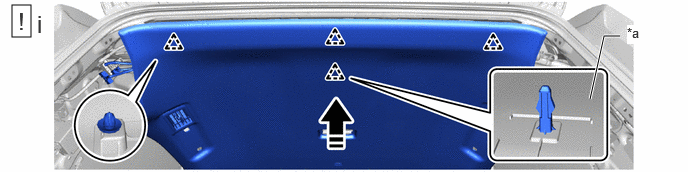

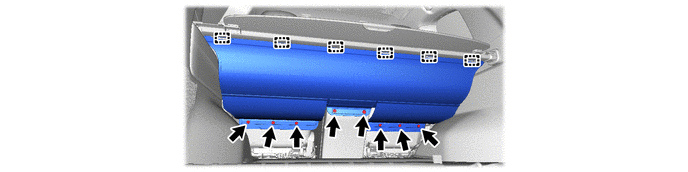

Remove in this Direction (1) Remove in this Direction (2) Remove in this Direction (3) - - - Open the deck board assembly as shown in the illustration.
- Using moulding remover B, detach the claw as shown in the illustration.
- Detach the guide and remove the rear deck trim cover as shown in the illustration.

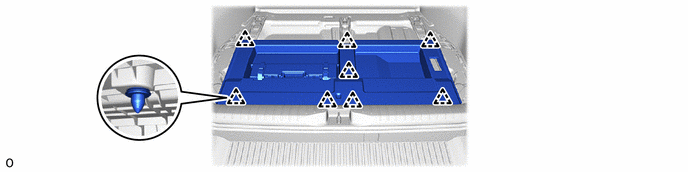

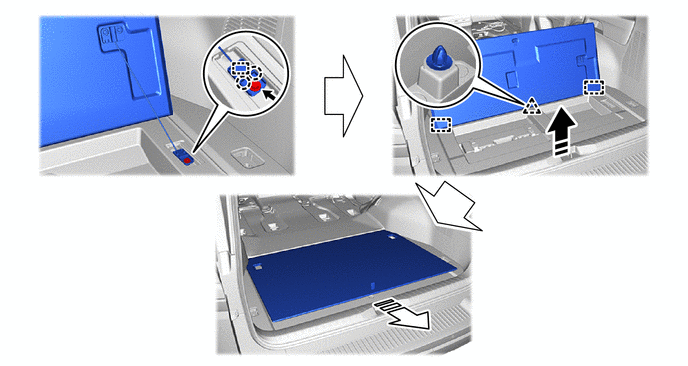

- REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

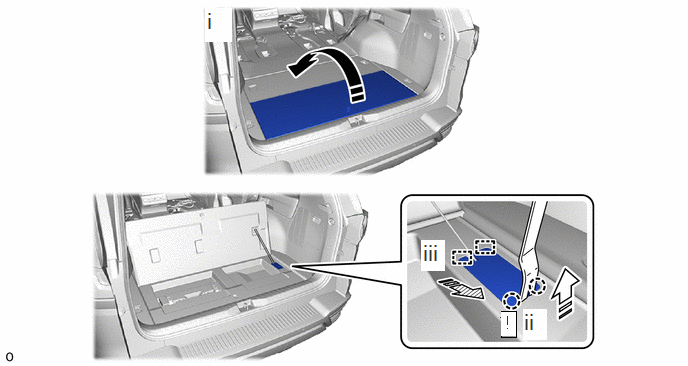

- REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)
- REMOVE REAR FLOOR BOARD REAR RH (w/o Rear No. 2 Seat)
- Use the same procedure described for the LH side.
- REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

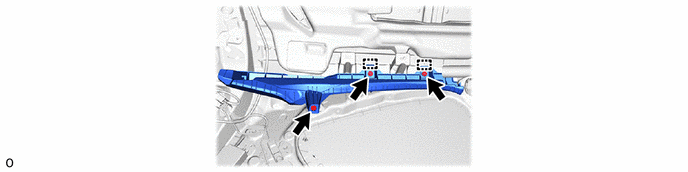

- REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)

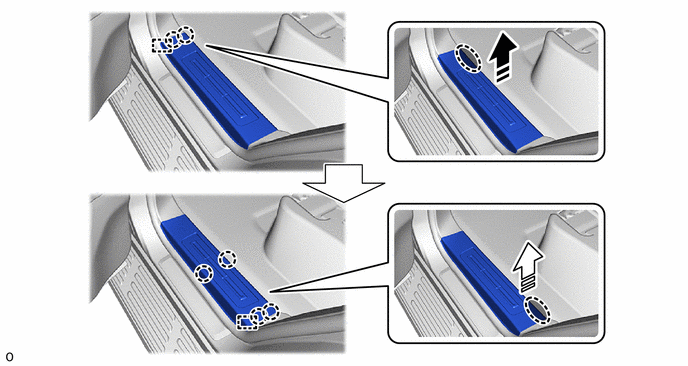

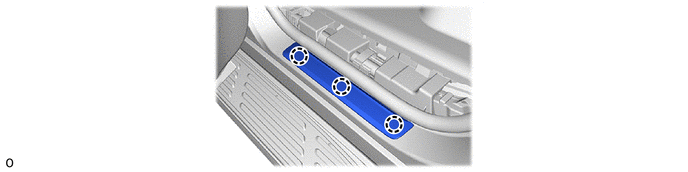

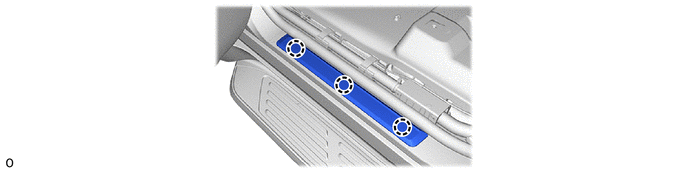

- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 8
- REMOVE FRONT DOOR SCUFF PLATE RH
- Use the same procedure described for the LH side.

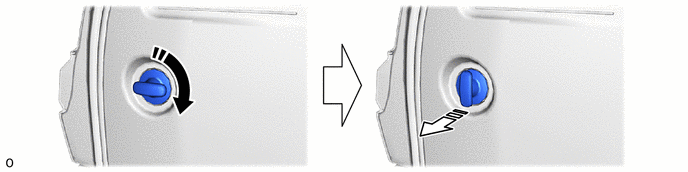

- REMOVE ASSIST GRIP PLUG

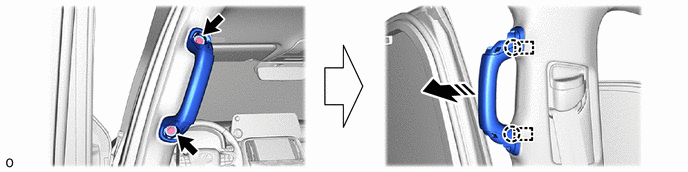

Refer to PROCEDURE - Step 26 - REMOVE FRONT ASSIST GRIP ASSEMBLY
Refer to PROCEDURE - Step 27
- REMOVE FRONT PILLAR GARNISH ASSEMBLY LH
Refer to PROCEDURE - Step 28 - REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
- Use the same procedure described for the LH side.
- REMOVE REAR DOOR SCUFF PLATE LH
- REMOVE REAR DOOR SCUFF PLATE RH
- Use the same procedure described for the LH side.

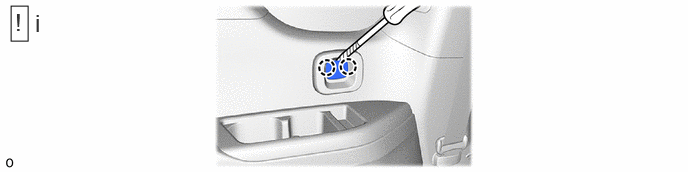

- REMOVE ASSIST GRIP PLUG A
- REMOVE ASSIST GRIP PLUG B
- Use the same procedure described for the assist grip plug A.
- REMOVE REAR ASSIST GRIP ASSEMBLY

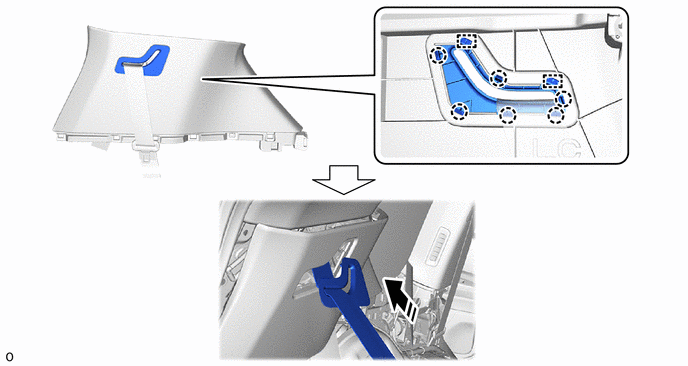

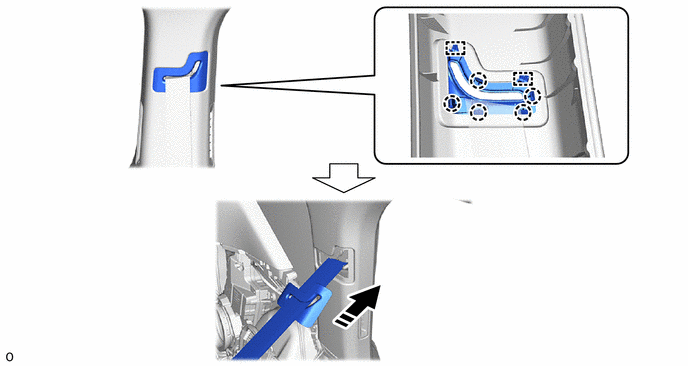

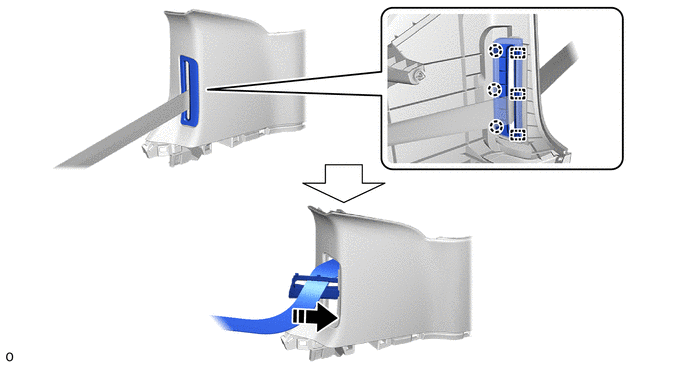

- REMOVE CENTER PILLAR LOWER GARNISH LH
- REMOVE CENTER PILLAR LOWER GARNISH RH
- Use the same procedure described for the LH side.

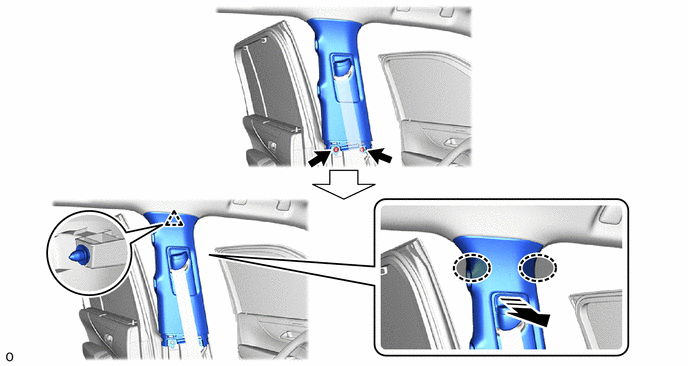

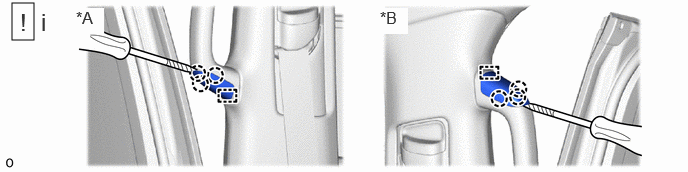

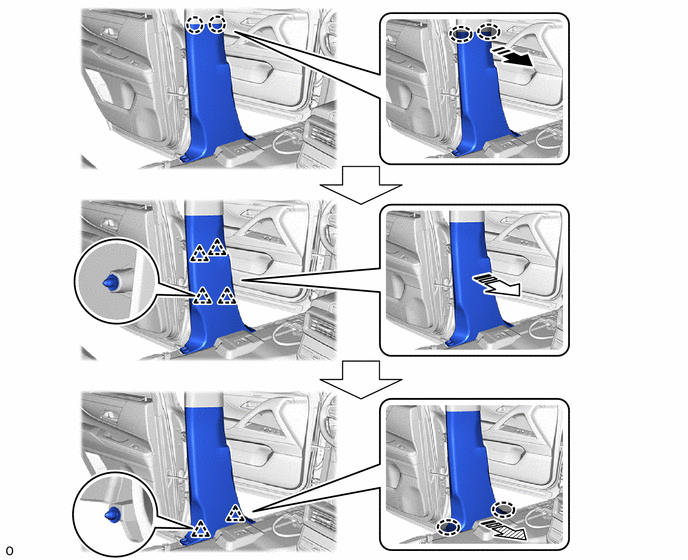

- REMOVE CENTER PILLAR GARNISH LH
- REMOVE CENTER PILLAR GARNISH RH
- Use the same procedure described for the LH side.
- REMOVE OUTER LAP BELT ANCHOR COVER
Refer to PROCEDURE - Step 15
- REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)
Refer to PROCEDURE - Step 16
- REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR) (except 4-Passenger)
- Use the same procedure described for the LH side.
- REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR) (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 17
- REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR) (w/ Rear No. 2 Seat)
- Use the same procedure described for the LH side.

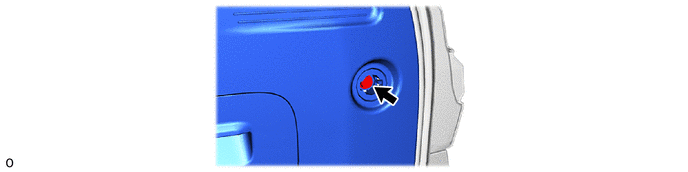

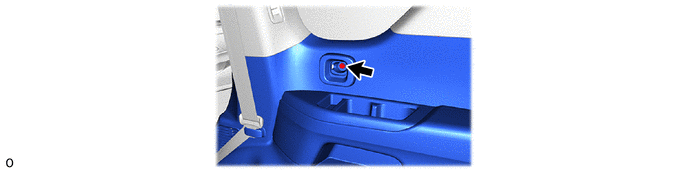

- REMOVE NO. 1 TONNEAU COVER HOLDER CAP (except 4-Passenger, w/ Tonneau Cover)

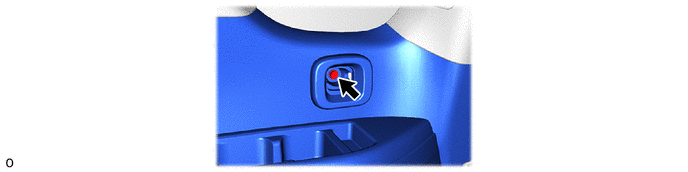

- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

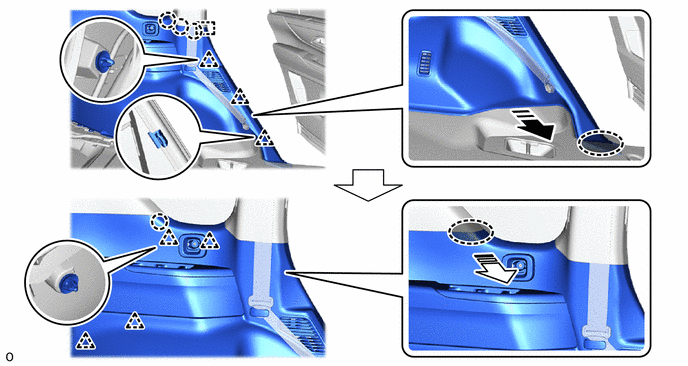

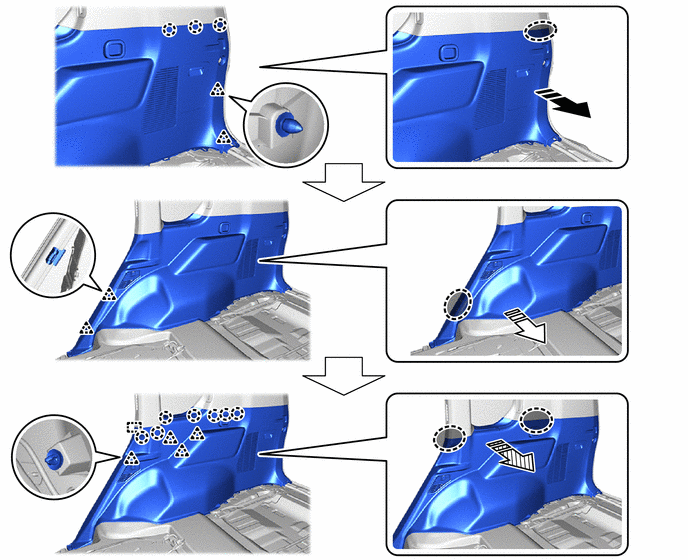

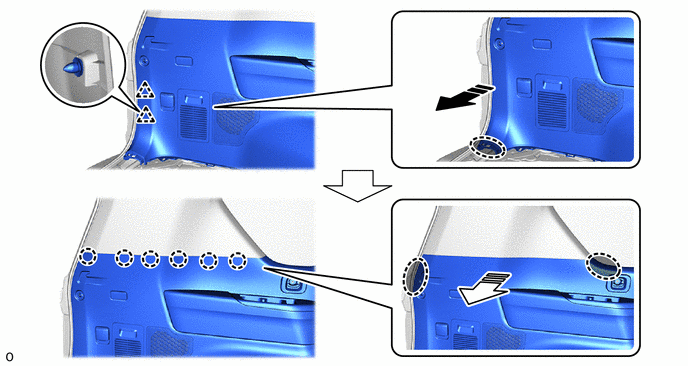

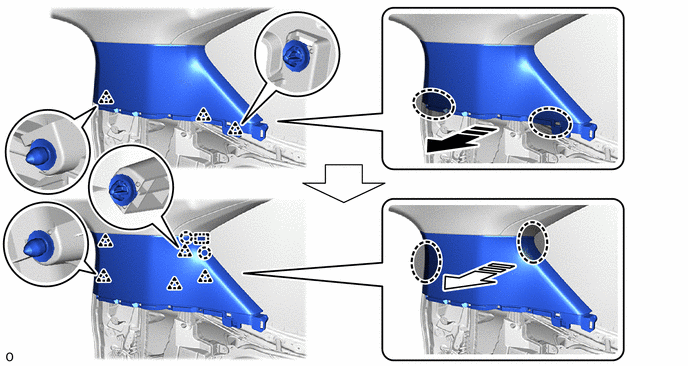

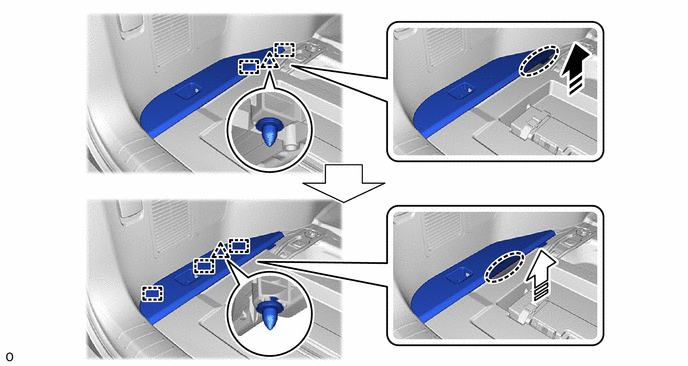

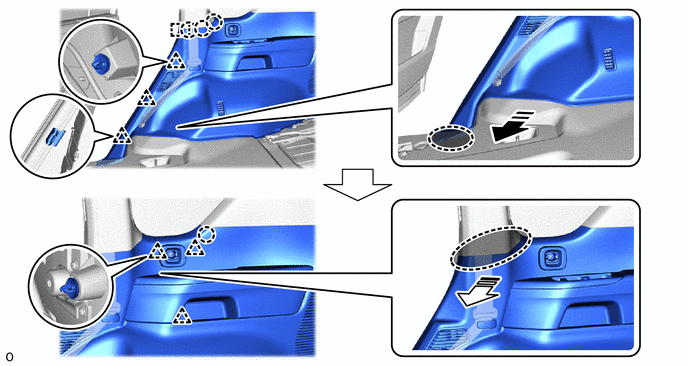

- REMOVE QUARTER TRIM PANEL ASSEMBLY LH
- REMOVE QUARTER TRIM PANEL ASSEMBLY RH
- except 4-Passenger, w/ Tonneau Cover:
- except 4-Passenger:

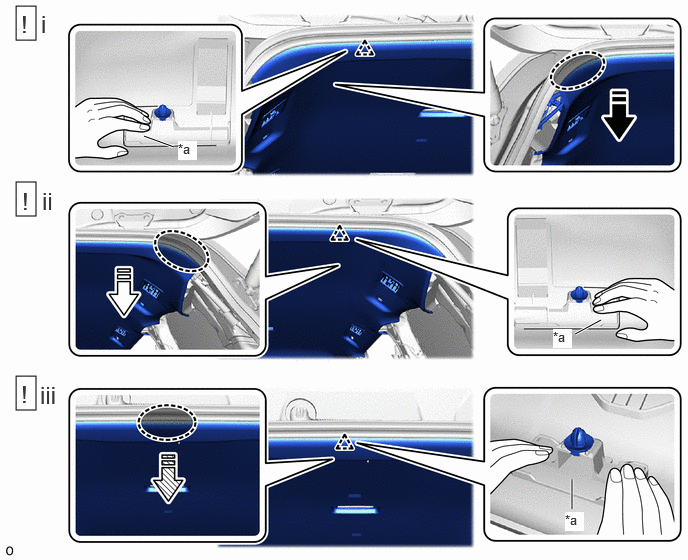

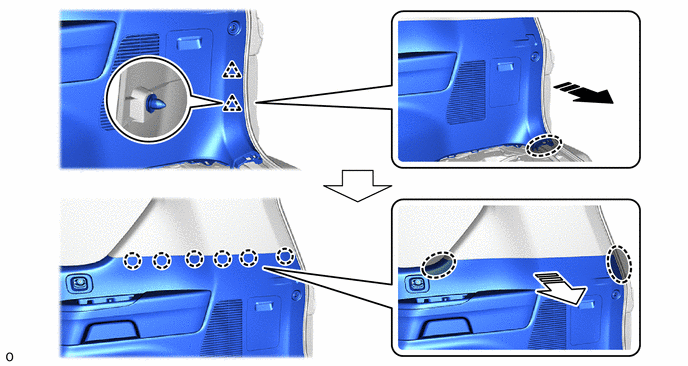

Place Hands Here Remove in this Direction (1) Remove in this Direction (2) - - - except 4-Passenger:
Place Hands Here Remove in this Direction (1) Remove in this Direction (2) - - - w/ Quater Sunshade:
Place Hands Here Remove in this Direction (1) Remove in this Direction (2) - -
- except 4-Passenger, w/ Tonneau Cover:

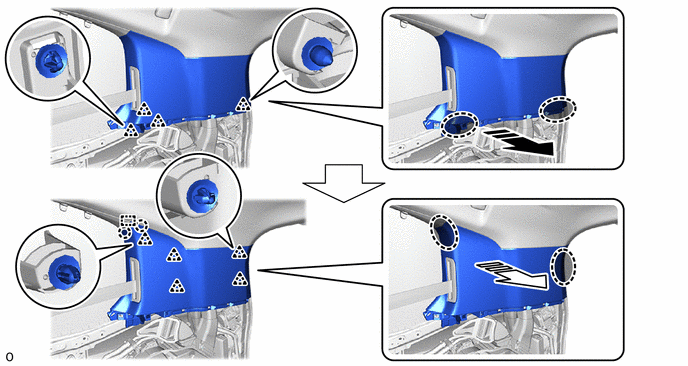

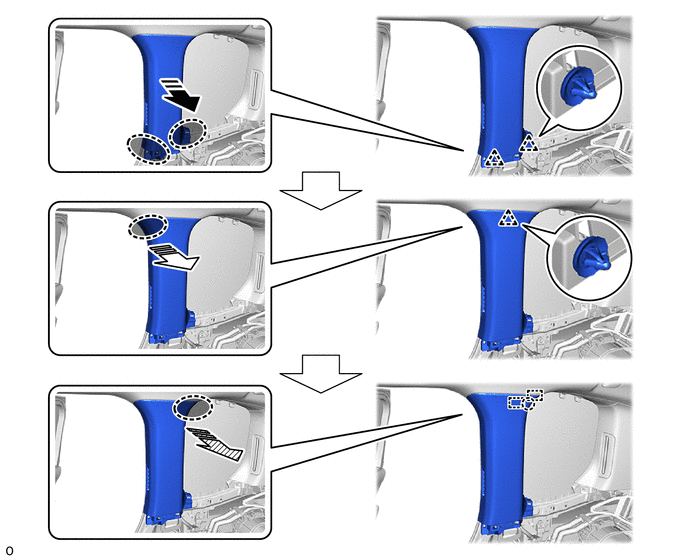

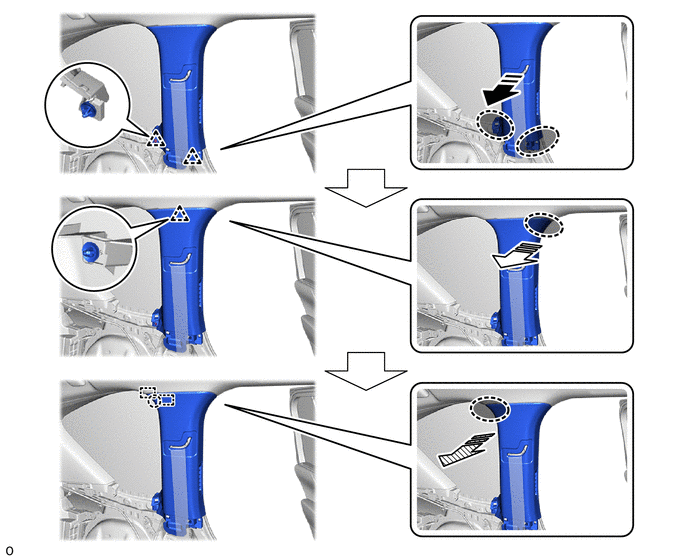

- REMOVE QUARTER PILLAR GARNISH LH
- REMOVE QUARTER PILLAR GARNISH RH

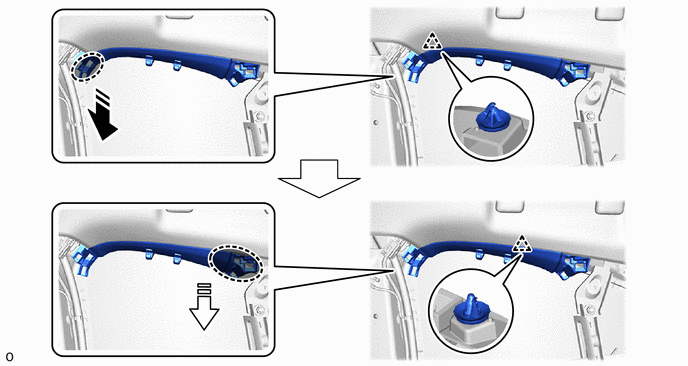

- REMOVE INNER ROOF SIDE GARNISH LH
HINT:
The illustrations are representative examples, and details may differ.
- REMOVE INNER ROOF SIDE GARNISH RH
HINT:
The illustrations are representative examples, and details may differ.
- except 4-Passenger:
Use the same procedure described for the LH side.
- for 4-Passenger:
Place Hands Here Remove in this Direction (1) Remove in this Direction (2) - - - for 4-Passenger:
Remove in this Direction - - - for 4-Passenger:

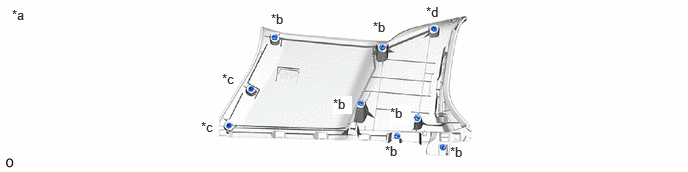

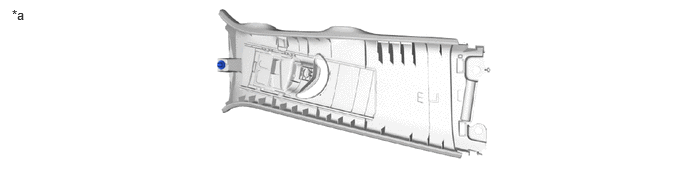

*a When reusing the inner roof side garnish RH *b Clip A *c Clip B *d Clip C
- except 4-Passenger:

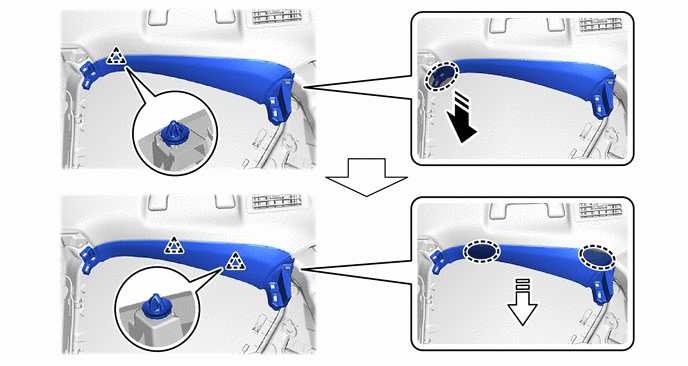

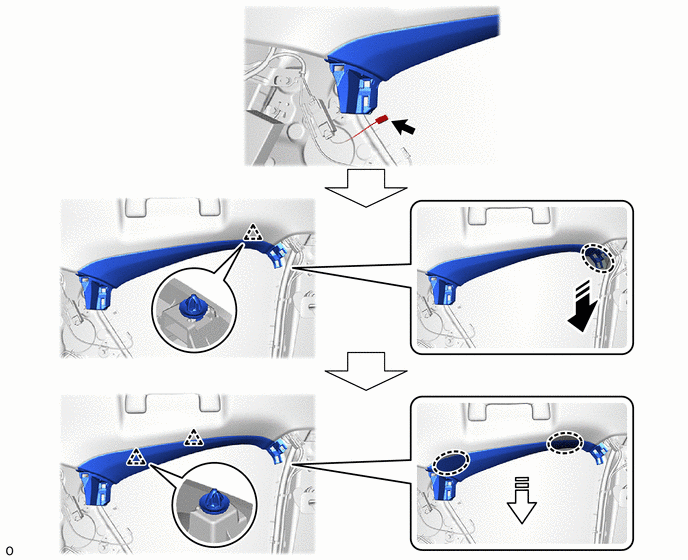

- REMOVE NO. 1 ROOF SIDE RAIL GARNISH LH
- REMOVE NO. 1 ROOF SIDE RAIL GARNISH RH
- except 4-Passenger:
Place Hands Here Remove in this Direction (1) Remove in this Direction (2) - - - except 4-Passenger:
*a When reusing the No. 1 roof side rail garnish RH - - - for 4-Passenger:
Place Hands Here Remove in this Direction (1) Remove in this Direction (2) - - - for 4-Passenger:
*a When reusing the No. 1 roof side rail garnish RH - -
- except 4-Passenger:

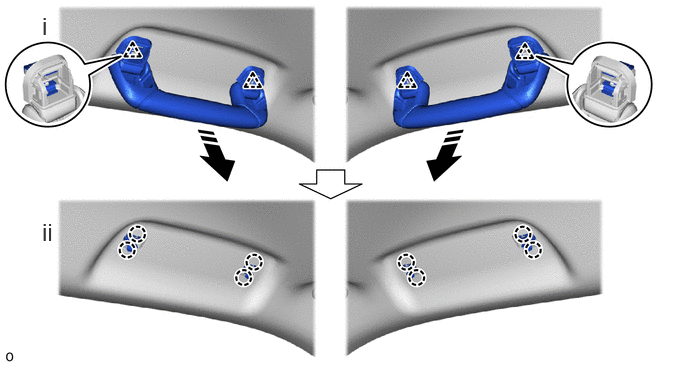

- REMOVE ASSIST GRIP ASSEMBLY

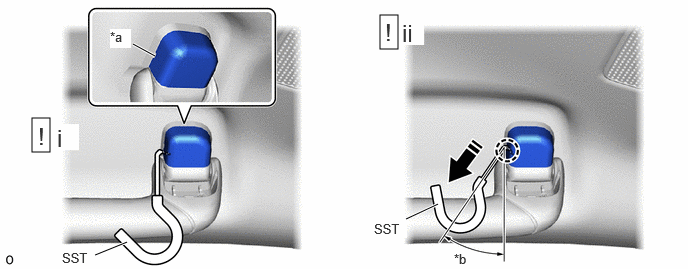

*a Cutout *b 30 to 45° Remove in this Direction - - - Insert SST into the cutout of the assist grip cover as shown in the illustration.
- SST: 09813-00010
NOTE:To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.
- Pull SST as shown in the illustration to detach the claw.NOTE:
To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.
HINT:
- Use the same procedure for the claw on the other side of the assist grip cover.
- Use the same procedure for the LH side and RH side.
- Insert SST into the cutout of the assist grip cover as shown in the illustration.
Remove in this Direction - - - Detach the clip and remove the assist grip assembly as shown in the illustration.

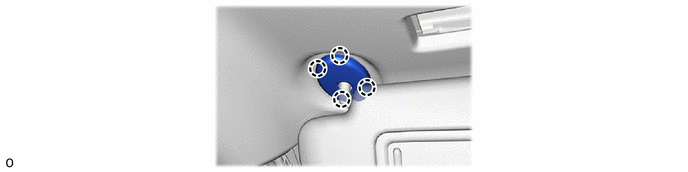

- Detach the claw and remove the 4 clips.
- REMOVE NO. 2 ASSIST GRIP ASSEMBLY LH
- Use the same procedure described for the assist grip assembly.
- REMOVE NO. 2 ASSIST GRIP ASSEMBLY RH
- Use the same procedure described for the assist grip assembly.

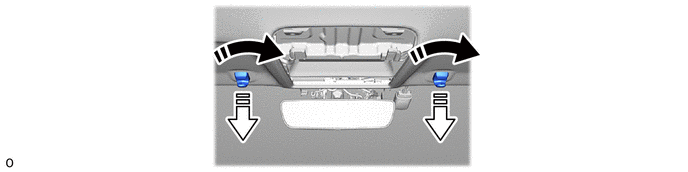

- REMOVE MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE VANITY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE SPOT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE NO. 2 ROOM LIGHT ASSEMBLY

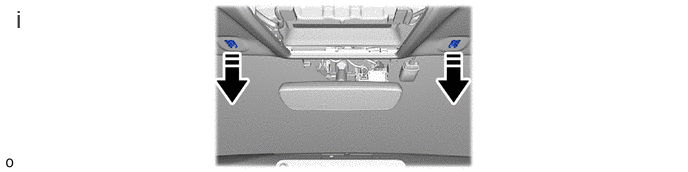

Refer to PROCEDURE - Step 2 - REMOVE RAIN SENSOR COVER
Refer to PROCEDURE - Step 1 - REMOVE NO. 2 FORWARD RECOGNITION COVER
Refer to PROCEDURE - Step 1 - REMOVE NO. 1 FORWARD RECOGNITION COVER
Refer to PROCEDURE - Step 2 - REMOVE VISOR BRACKET COVER

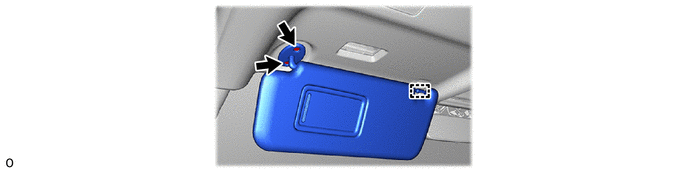

- REMOVE VISOR ASSEMBLY LH
- REMOVE VISOR ASSEMBLY RH
- Use the same procedure described for the LH side.
- REMOVE VISOR HOLDER
- REMOVE ROOF HEADLINING ASSEMBLY

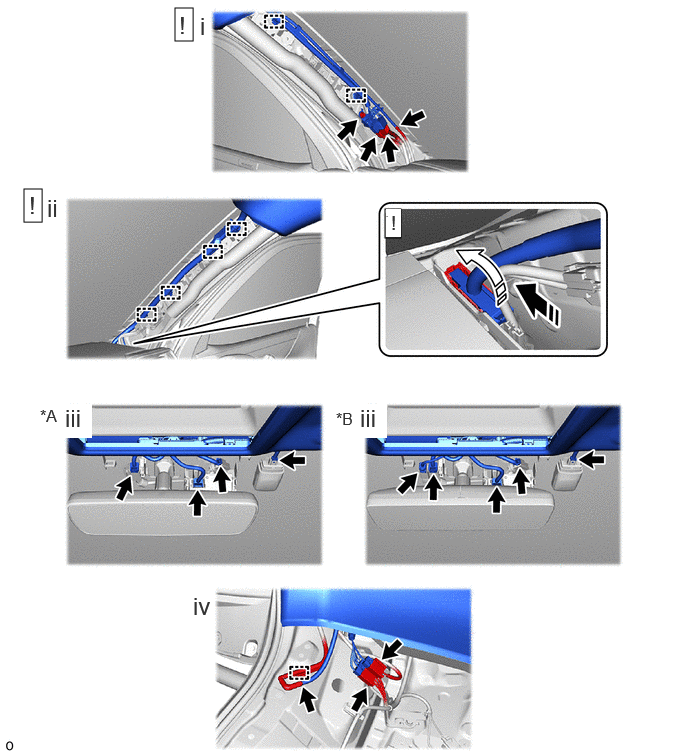

*A w/ EC Mirror *B w/ Digital Inner Mirror Push the Connector Lock Pull Out the Lock Lever - for Front Pillar LH Side:
1. Remove the protective cover installed to the front pillar LH.
2. Remove the bolt.

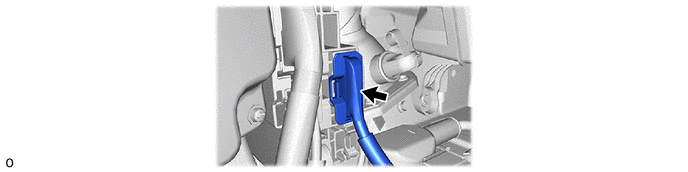

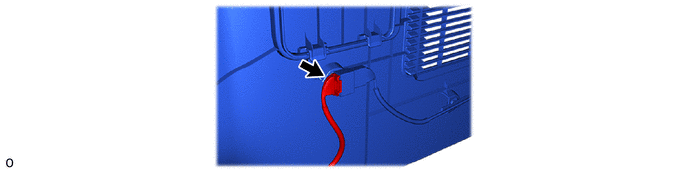

3. Disconnect the connector.
4. Disconnect the washer hose.
5. Detach the clamp.
6. Install the protective cover to the front pillar LH.
- for Front Pillar RH Side:
1. Remove the protective cover installed to the front pillar RH.
2. Pull out the connector with its connector lock pushed to disconnect the connector.
3. Detach the clamp.
4. Install the protective cover to the front pillar RH.
- for Windshield Glass Side:
1. Disconnect each connector.
- for Rear Pillar RH Side:
1. Disconnect each connector.
2. Detach the clamp.
3. Disconnect the washer hose.
- for Front Pillar LH Side:
- for Moon Roof:
- Disconnect the connector.

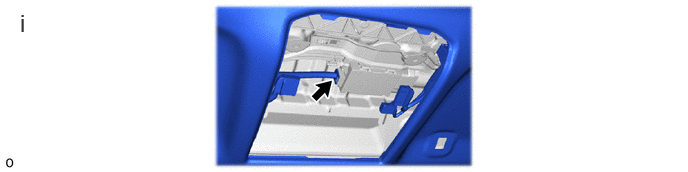

Remove in this Direction - - - Remove the 2 visor holder bases.
*a Clip Pedestal - - Insert Hands Here Remove in this Direction (1) Remove in this Direction (2) Remove in this Direction (3) - Insert your hand at the position shown in the illustration and pull the clip pedestal in the removal direction (1) indicated by the arrow to detach the clip.
- Insert your hand at the position shown in the illustration and pull the clip pedestal in the removal direction (2) indicated by the arrow to detach the clip.
- Insert your hand at the position shown in the illustration and pull the clip pedestal in the removal direction (3) indicated by the arrow to detach the clip.NOTE:
Do not damage the roof headlining assembly.
*a Clip Pedestal - - Insert Hands Here Remove in this Direction - Insert your hand at the position shown in the illustration and pull the clip pedestal in the removal direction indicated by the arrow to detach the clip.NOTE:
Do not damage the roof headlining assembly.
- Insert your hand at the position shown in the illustration and pull the clip pedestal in the removal direction indicated by the arrow to detach the clip.
- for Normal Roof:

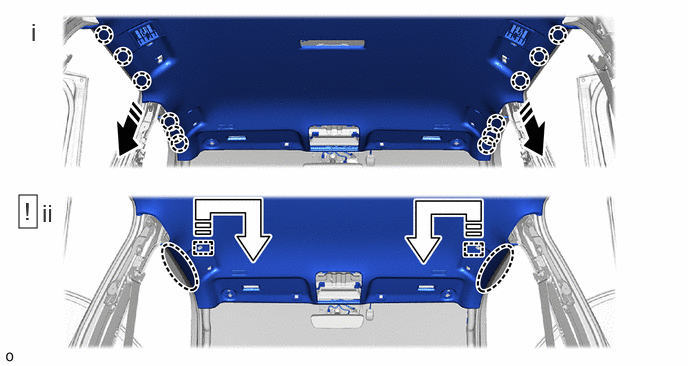

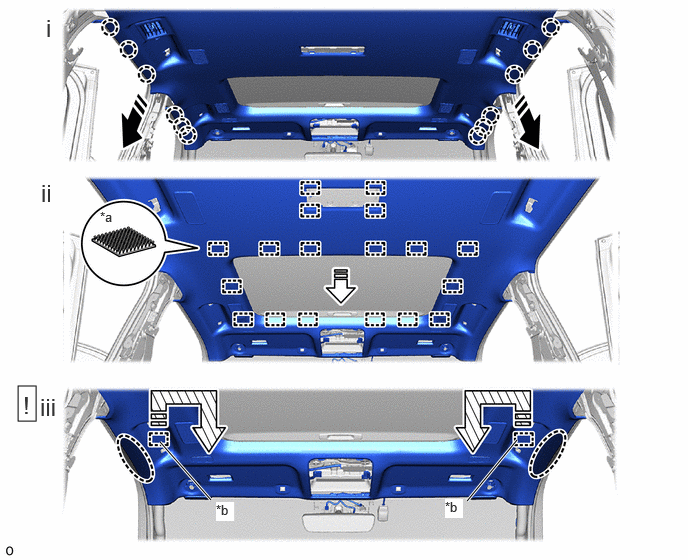

Place Hands Here Remove in this Direction (1) Remove in this Direction (2) - - - Pull in the removal direction (1) as shown in the illustration and detach the claw.
- Insert your hand at the position shown in the illustration, detach the hook toward the inside of the vehicle.
- for Moon Roof:
*a Fastener *b Hook Place Hands Here Remove in this Direction (1) Remove in this Direction (2) Remove in this Direction (3) - Pull in the removal direction (1) as shown in the illustration and detach the claw.
- Pull in the removal direction (2) as shown in the illustration and detach the fastener.
- Insert your hand at the position shown in the illustration, detach the hook toward the inside of the vehicle.

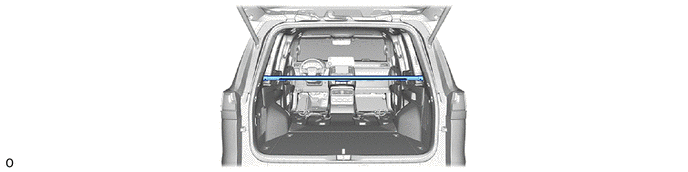

Remove in this Direction - - - Remove the roof headlining assembly from the vehicle through the back door as shown in the illustration.NOTE:
- Check that the corners of the roof headlining assembly are free of bending, twisting and other deformation and that none of the mounted parts are falling off.
- Do not damage the roof headlining assembly and body interior.
- The headlining assembly must be carried out of the vehicle by multiple people to prevent deformation of the roof headlining assembly.

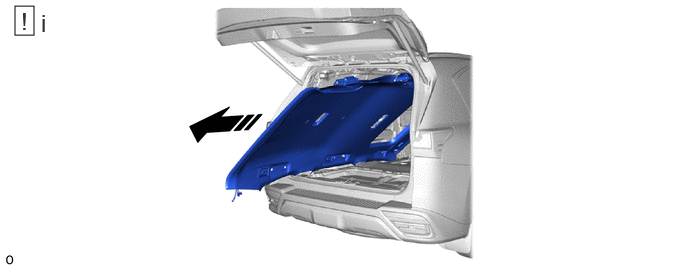

- Remove the roof headlining assembly from the vehicle through the back door as shown in the illustration.
- REMOVE INNER NO. 1 ROOF SIDE GARNISH SPACER LH (for 5-Passenger)
HINT:
Perform this procedure only when replacing the inner No. 1 roof side garnish spacer LH.
- REMOVE INNER NO. 1 ROOF SIDE GARNISH SPACER RH (for 5-Passnger)
HINT:
Perform this procedure only when replacing the inner No. 1 roof side garnish spacer RH.
- Use the same procedure described for the LH side.
- REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
HINT:
Perform this procedure only when replacing the front door scuff plate outside LH.
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Perform this procedure only when replacing the front door scuff plate RH.
- Use the same procedure described for the front door scuff plate outside LH.
- REMOVE REAR DOOR SCUFF PLATE OUTSIDE LH
HINT:
Perform this procedure only when replacing the rear door scuff plate outside LH.
- REMOVE REAR DOOR SCUFF PLATE OUTSIDE RH
HINT:
Perform this procedure only when replacing the rear door scuff plate outside RH.
- Use the same procedure described for the LH side.
