Removal [12/2021 - ]: Procedure

  1. REMOVE DOOR PULL HANDLE
    Refer to PROCEDURE - Step 3
  2. REMOVE BACK DOOR TRIM BASE
    Refer to PROCEDURE - Step 4
  3. REMOVE BACK DOOR LOCK COVER
    Refer to PROCEDURE - Step 5
  4. REMOVE BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)

    Refer to PROCEDURE - Step 6

  5. REMOVE BACK DOOR CENTER GARNISH WITH NO. 2 BACK DOOR SERVICE HOLE COVER (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 7

  6. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 9

  7. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure described for the LH side.
  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 12

  9. REMOVE REAR NO. 3 SPEAKER ASSEMBLY WITH BRACKET (w/ Back Door Speaker)
    Refer to PROCEDURE - Step 8
  10. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 3
  11. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  12. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

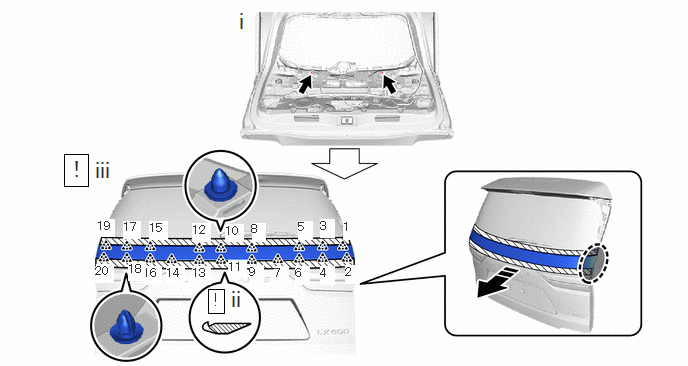

    1. Fig 1: Back Door Outside Garnish Sub-Assembly Detachment Sequence
      GTY1054491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Remove the 2 bolts.
      2. Put protective tape around the back door outside garnish sub-assembly.
      3. Place your hand at the positions shown in the illustration and detach the clip in the order shown in the illustration and remove the back door outside garnish sub-assembly as shown in the illustration.
  13. REMOVE REAR LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 2
  14. REMOVE LOWER BACK DOOR OUTSIDE GARNISH

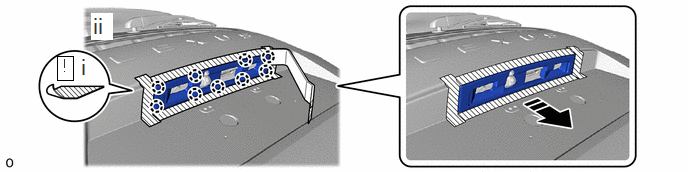

    1. GTY1054096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Put protective tape around the lower back door outside garnish.
      2. Using moulding remover B, detach the claw and remove the lower back door outside garnish as shown in the illustration.
  15. REMOVE LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

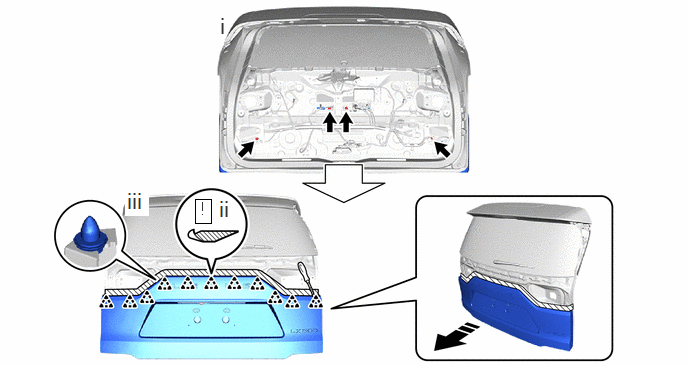

    1. GTY1055421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 4 bolts.
      2. Put protective tape around the lower back door outside garnish sub-assembly.
      3. Using a clip remover with its tip wrapped with protective tape, detach the clip as shown in the illustration.

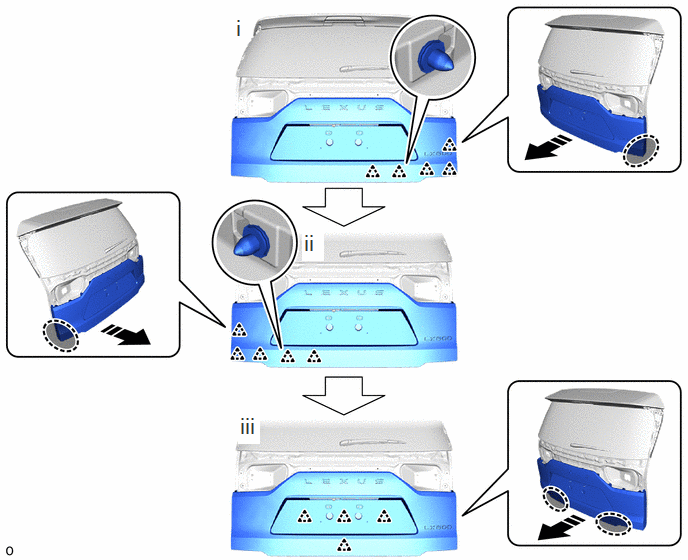

    2. GTY1054041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Place your hand at the positions shown in the illustration and detach the clip as shown in the illustration.
      2. Place your hand at the positions shown in the illustration and detach the clip as shown in the illustration.
      3. Place your hand at the positions shown in the illustration and detach the clip and remove the lower back door outside garnish sub-assembly as shown in the illustration.
