Disassembly [09/2020 - ]: Procedure

  1. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE HEADLIGHT WASHER COVER LH (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 1

  3. REMOVE HEADLIGHT WASHER COVER RH (w/ Headlight Cleaner System)

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 4

  5. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE NO. 2 WASHER BRACKET (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 6

  7. REMOVE NO. 1 WASHER BRACKET (w/ Headlight Cleaner System)

    HINT:

    Use the same procedure as for the No. 2 washer bracket.

  8. REMOVE HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)
    1. Disengage the 7 clamps to remove the headlight cleaner hose.
      GTY966514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 2

  10. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 3

  11. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 4

  12. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 2

  13. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Parking Support Brake System)
    1. Disengage the 12 clamps to remove the No. 4 engine room wire.
      GTY967016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CONNECTOR BRACKET (w/o Parking Support Brake System)
    1. Disengage the clamp to remove the connector bracket.
      GTY967032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Remove the 2 screws.
      GTY967013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws to remove the front bumper extension mounting bracket.
      GTY967019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT BUMPER SIDE BRACKET LH
    1. Remove the 4 screws.
      GTY966511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the front bumper side bracket LH.
      GTY967940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT BUMPER SIDE BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE NO. 2 COOL AIR INTAKE DUCT
    1. Remove the screw.
      GTY967067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the No. 2 cool air intake duct.
      GTY966520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 1 COOL AIR INTAKE DUCT

    HINT:

    Use the same procedure as for the No. 2 cool air intake duct.

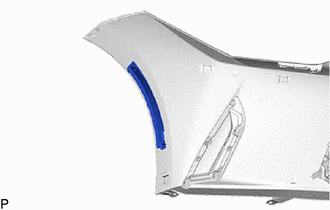

  20. REMOVE FRONT BUMPER REINFORCEMENT EXTENSION LH
    1. Remove the front bumper reinforcement extension LH.
      GTY967072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT BUMPER REINFORCEMENT EXTENSION RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE LOWER RADIATOR GRILLE LH
    1. Remove the screw.
      GTY967048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws to remove the lower radiator grille LH.
      GTY967047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE LOWER RADIATOR GRILLE RH

    HINT:

    Use the same procedure as for the LH side.

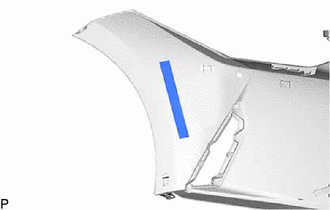

  24. REMOVE NO. 1 MOULDING TAPE
    1. Remove the No. 1 moulding tape.
      GTY967057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

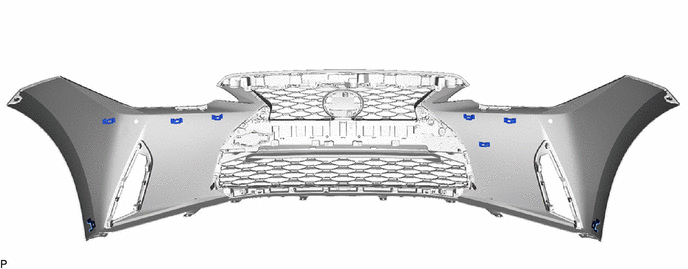

  25. REMOVE ULTRASONIC SENSOR CLIP
    1. Remove each ultrasonic sensor clip.
      GTY966518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

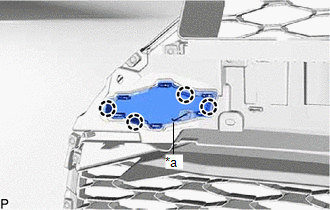

  26. REMOVE FRONT BUMPER HOLE COVER LH
    1. Disengage the 4 claws.
      GTY967318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
    2. Disengage the hook to remove the front bumper hole cover LH.
  27. REMOVE RADIATOR GRILLE PROTECTOR
    1. Disengage the 14 clips to remove the radiator grille protector.
      GTY966528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE UPPER RADIATOR GRILLE
    1. Remove the 7 screws.
      GTY967097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws.
      GTY967102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 guides to remove the upper radiator grille.
      GTY968059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    1. Remove the screw.
      GTY967083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and guide to remove the radiator grille (or front panel) emblem.
      GTY966524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE RADIATOR GRILLE SUB-ASSEMBLY
    1. Remove the 17 screws.
      GTY968060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 11 claws to remove the radiator grille sub-assembly.
      GTY967085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 13

  32. REMOVE RADIATOR GRILLE SIDE MOULDING LH
    1. Remove the 3 screws.
      GTY966532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 2 guides to remove the radiator grille side moulding LH.
      GTY967123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE RADIATOR GRILLE SIDE MOULDING RH

    HINT:

    Use the same procedure as for the LH side.

  34. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. Disengage the 2 guides to remove the front bumper energy absorber.
      GTY966531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE FRONT BUMPER REINFORCEMENT
    1. Remove the 14 bolts and front bumper reinforcement.
      GTY967521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE FRONT BUMPER SIDE RETAINER LH
    1. Remove the bolt.
      GTY967520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

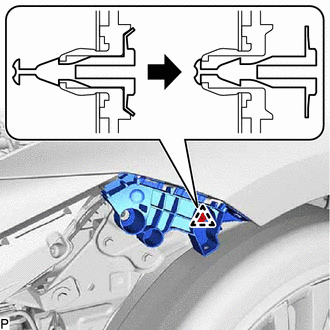

    2. Disengage the clip as shown in the illustration to remove the front bumper side retainer LH.
      GTY967528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.
