Removal [09/2020 - ]: Procedure

for Standard: Refer to REMOVAL [09/2020 - ]

for Sport Package: Refer to REMOVAL [09/2020 - ]

See step  1

HINT:

Use the same procedure as for the LH side.

1. Disengage the claw as shown in the illustration to disconnect the headlight cleaner hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

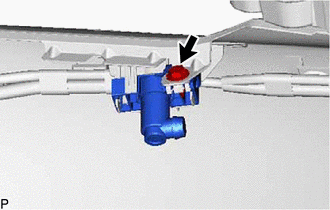

2. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

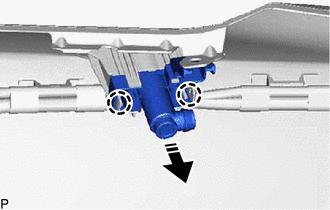

3. Disengage the 2 claws as shown in the illustration to remove the headlight washer actuator sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

HINT:

Use the same procedure as for the LH side.

HINT:

• Perform this procedure only when replacement of the No. 2 washer bracket is necessary.
• When removing the No. 2 washer bracket, heat the front bumper assembly and No. 2 washer bracket using a heat light.

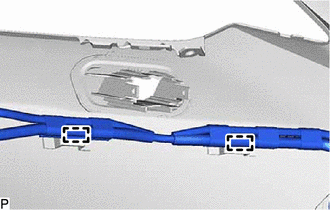

1. Disengage the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Heat the front bumper assembly and No. 2 washer bracket using a heat light at the specified temperature for 3 to 5 minutes.

   Heating Temperature

   Item	Temperature
   Front Bumper Assembly	20 to 30°C (68 to 86 °F)
   No. 2 Washer Bracket

   WARNING:

   • Do not touch the heat light and heated parts.
   • Touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Heated Part
   *b	Heat Light

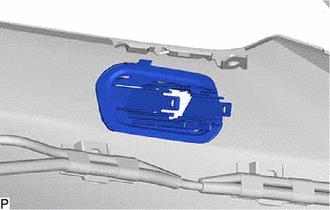

3. Remove the No. 2 washer bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the No. 2 washer bracket.
