Removal [09/2020 - ]: Procedure

  1. REMOVE HEADLIGHT WASHER COVER LH

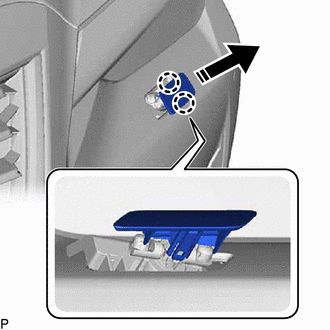

    1. Pull out the headlight washer actuator sub-assembly LH as shown in the illustration.
      GTY966717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 2 claws to remove the headlight washer cover LH.
  2. REMOVE HEADLIGHT WASHER COVER RH

    HINT:

    Use the same procedure as for the LH side.
