Removal [11/2017 - ]: Procedure
- REMOVE FRONT SEAT ASSEMBLY LH
Refer to REMOVAL [09/2014 - ]
- REMOVE FRONT SEAT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT DOOR SCUFF PLATE LH
- REMOVE FRONT DOOR OPENING TRIM COVER LH
- REMOVE FRONT PILLAR GARNISH LH
- Apply protective tape around the front pillar garnish LH as shown in the illustration.
*a Front Pillar Garnish Clip (A) *b Front Pillar Garnish Clip (B) Protective Tape - Pull the upper part of the front pillar garnish LH toward the inside of the cabin and disengage the front pillar garnish LH from the base of the 2 front pillar garnish clips.
HINT:
Let the front pillar garnish LH hang from the 2 front pillar garnish clips.
- While pushing the tabs on the 2 front pillar garnish clips as shown in the illustration, disengage the 2 front pillar garnish clips.NOTE:
- A front pillar garnish clip is reusable if it is not damaged.
- Do not apply excessive force using a tool.
- Disengage the 3 guides to remove the front pillar garnish LH as shown in the illustration.
- Protect the curtain shield airbag assembly LH.
*1 Curtain Shield Airbag Assembly LH *a Protective Cover *b Adhesive Tape - Cover the curtain shield airbag assembly LH with a piece of cloth or nylon and secure the edges of the cover with tape as shown in the illustration.NOTE:
Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish LH is removed.
- Cover the curtain shield airbag assembly LH with a piece of cloth or nylon and secure the edges of the cover with tape as shown in the illustration.
- Apply protective tape around the front pillar garnish LH as shown in the illustration.
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 2
- REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)
Refer to PROCEDURE - Step 6
- DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 7
- DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 6
- REMOVE REAR SIDE SEATBACK ASSEMBLY LH
Refer to PROCEDURE - Step 4
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
- Remove the bolt and disconnect the belt guide of the rear seat 3 point type outer belt assembly LH.
- Remove the 2 clips.
*A w/o Rear No. 2 Speaker Assembly *B w/ Rear No. 2 Speaker Assembly - Disengage the 4 clips (A).
- Disengage the 7 claws, 3 clips (B) and guide to disconnect the front quarter trim panel assembly LH.
HINT:
Disengage the claws, clips and guide from the front side of the front quarter trim panel assembly LH.
- Disengage the clamp.
- Disconnect the connector to remove the front quarter trim panel assembly LH.
- Remove the bolt and disconnect the belt guide of the rear seat 3 point type outer belt assembly LH.
- REMOVE CENTER PILLAR GARNISH ASSEMBLY LH
- Remove the 2 screws.
- Disengage the 2 claws (A).
- Disengage the claw (B) and clip to disconnect the center pillar garnish assembly LH.
- Disengage the 4 claws and 2 guides to disconnect the belt guide of the front seat outer belt assembly LH.
- Pass the floor anchor of the front seat outer belt assembly LH through the center pillar garnish assembly LH to remove it.
- Remove the 2 screws.
- REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH
- REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH
- REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)
HINT:
Use the same procedure as for the LH side.
- DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR SIDE SEATBACK ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE CENTER PILLAR GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to REMOVAL [11/2017 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2020] , or refer to REMOVAL [09/2020 - 01/2023] , or refer to REMOVAL [01/2023 - ]
- REMOVE RAIN SENSOR COVER (w/ Rain Sensor)
Refer to PROCEDURE - Step 1
- REMOVE RAIN SENSOR (w/ Rain Sensor)
Refer to PROCEDURE - Step 2
- REMOVE NO. 2 FORWARD RECOGNITION COVER
Refer to PROCEDURE - Step 1 [11/2017 - 01/2023] , or refer to PROCEDURE - Step 1 [01/2023 - ]
- REMOVE NO. 1 FORWARD RECOGNITION COVER
Refer to PROCEDURE - Step 2 [11/2017 - 01/2023] , or refer to PROCEDURE - Step 2 [01/2023 - ]
- REMOVE MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 ROOM LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE ASSIST GRIP SUB-ASSEMBLY (for LH Side)

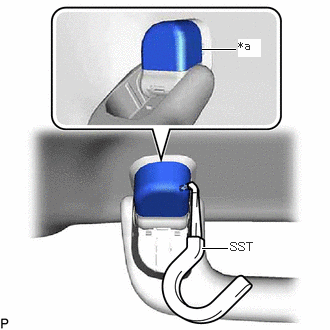

- Insert SST into the cutout of the assist grip cover as shown in the illustration.
*a Cutout - SST: 09813-00010
NOTE:To prevent the assist grip sub-assembly from being damaged, make sure to insert SST straight into the cutout.

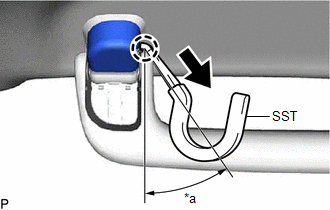

- Pull SST as shown in the illustration to disengage the claw.NOTE:
To prevent the assist grip sub-assembly from being damaged, make sure to only pull SST as shown in the illustration.
HINT:
Use the same procedure for the claw on the other side of the assist grip cover.
*a 30 to 45° Pull in this Direction - Remove the assist grip cover.
HINT:
Use the same procedure for the LH side and RH side.
- Disengage the 2 clips to remove the assist grip.
- Remove the 2 clips from the vehicle body.
- Insert SST into the cutout of the assist grip cover as shown in the illustration.
- REMOVE VISOR BRACKET COVER (for LH Side)
- REMOVE VISOR ASSEMBLY LH
- REMOVE VISOR HOLDER (for LH Side)
- REMOVE VISOR BRACKET COVER (for RH Side)
HINT:
Use the same procedure as for the LH side.
- REMOVE ASSIST GRIP SUB-ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.
- REMOVE VISOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE VISOR HOLDER (for RH Side)
HINT:
Use the same procedure as for the LH side.
- REMOVE ROOF HEADLINING ASSEMBLY
- for Windshield Glass Side:
- Disconnect each connector.
- for Front Pillar LH Side:
- for Roof Side (w/o Sliding Roof):
- for Roof Side (w/ Sliding Roof):
- Disconnect the connector from the sliding roof drive gear sub-assembly.
*a Fastener *b Guide - Remove the 2 screws from the 2 coat hooks.
- Disengage the 6 claws and 8 fasteners.
- Slide the roof headlining assembly to disengage the 2 clips and 2 guides as shown in the illustration.
HINT:
Leave the 2 clips installed to the vehicle body.
- Disconnect the connector from the sliding roof drive gear sub-assembly.
- Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.NOTE:
Do not damage the roof headlining assembly or vehicle interior.
- Remove the 2 clips from the vehicle body as shown in the illustration.
- Remove the grommet from the vehicle body.
HINT:
Use the same procedure for the RH side and LH side.
- for Windshield Glass Side:
