Removal [11/2017 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

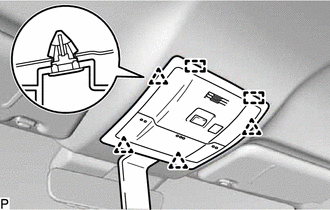

    1. Using a moulding remover, disengage the 4 clips and 2 guides.
      GTY524783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector to remove the map light assembly.
  2. REMOVE NO. 1 ROOF CONSOLE BOX COVER

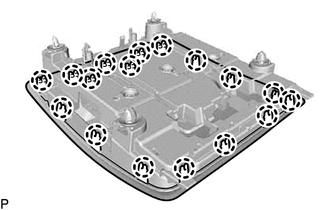

    1. Disengage the 17 claws to remove the No. 1 roof console box cover from the map light sub-assembly.
