Disassembly [12/2017 - ]: Procedure

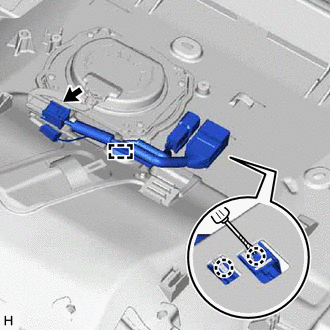

- REMOVE SEAT CUSHION CHECK VALVE WITH HOSE LH (w/ Refresh Seat)

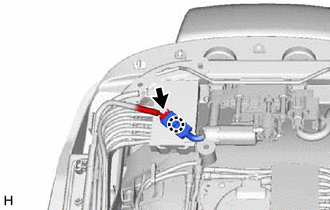

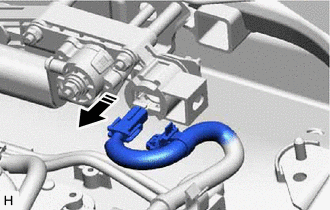

- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the joint.
*a Tube Clamp *b Clamp Joint Connector Screw Protective Tape - Detach the tube clamp and remove the tube.
- Remove the tube from the clamp.
- Disconnect the connector.

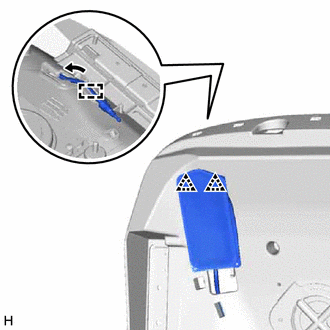

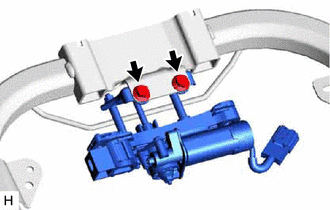

- Remove the 3 screws and seat cushion check valve with hose LH.
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the joint.
- REMOVE SEAT CUSHION CHECK VALVE WITH HOSE RH (w/ Refresh Seat)
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the joint.
*a Tube Clamp *b Clamp Joint Connector Screw Protective Tape - Detach the tube clamp and remove the tube.
- Remove the tube from the clamp.
- Disconnect the connector.
- Remove the 3 screws and seat cushion check valve with hose RH.
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the joint.
- REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD LH
- Disconnect the 2 connectors.

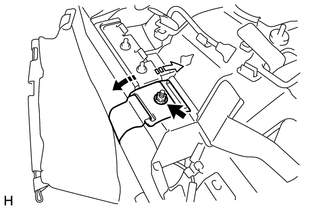

- Detach the wire harness clamp.

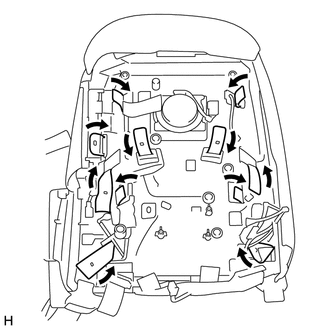

- Detach the hook.
- w/ Refresh Seat:

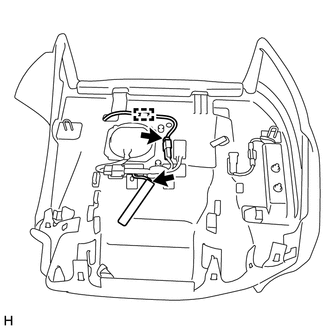

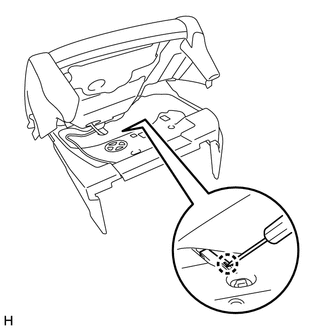

- Using a thin-bladed screwdriver wrapped with protective tape, detach the claw and disconnect the connector of the occupant detection sensor.

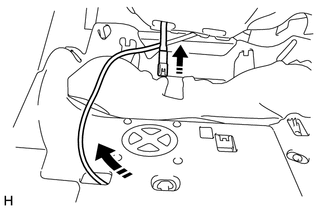

Protective Tape - Pull out the connector of the occupant detection sensor and wire harness from the hole of the rear seat cushion panel LH and remove the separate type rear seat cushion cover with pad LH.
Remove in this Direction
- Disconnect the 2 connectors.
- REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD RH
HINT:
Use the same procedure described for the LH side.

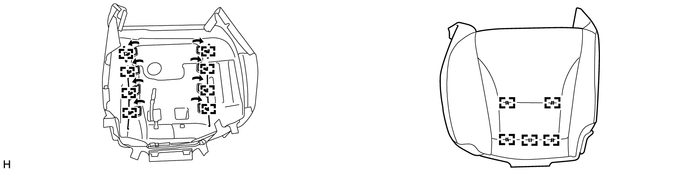

- REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER LH
- REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER RH
HINT:
Use the same procedure described for the LH side.
- REMOVE SEAT COVER WIRE
- REMOVE REAR SEAT CUSHION AIRBAG ASSEMBLY LH
Refer to PROCEDURE - Step 5 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 5 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 5 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 5 [10/2023 - ]
- REMOVE REAR SEAT CUSHION AIRBAG ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
- REMOVE REAR NO. 2 SEAT WIRE LH
- REMOVE REAR NO. 2 SEAT WIRE RH
HINT:
Use the same procedure described for the LH side.
- REMOVE REAR CENTER SEAT CUSHION COVER SUB-ASSEMBLY

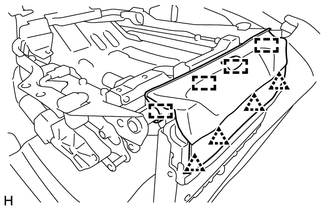

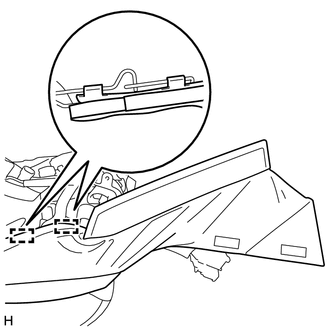

- Detach the hook and remove the rear center seat cushion cover sub-assembly.

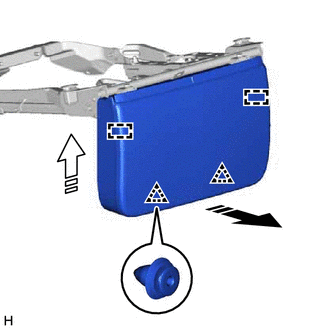

- REMOVE REAR CENTER SEAT CUSHION PAD

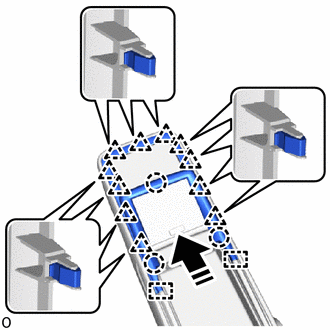

- Remove the rear center seat cushion pad from the center seat cushion frame sub-assembly.
- REMOVE REAR SEAT INNER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 12 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 12 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 12 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 12 [10/2023 - ]
- REMOVE REAR SEAT INNER BELT ASSEMBLY RH
Refer to PROCEDURE - Step 13 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 13 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 13 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]
- REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH
Refer to PROCEDURE - Step 7 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]
- REMOVE REAR NO. 2 SEAT WIRE LH
HINT:
Use the same procedure for the LH and RH sides.
- REMOVE REAR SEAT LEG-REST ASSEMBLY
HINT:
Use the same procedure for the LH and RH sides.

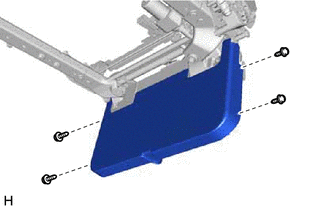

- REMOVE REAR SEAT LEG-REST COVER
HINT:
Use the same procedure for the LH and RH sides.
- REMOVE REAR SEAT LEG-REST COVER RH (w/ Ottoman)
- REMOVE REAR SEAT LEG-REST COVER (w/ Ottoman)
- REMOVE REAR NO. 2 SEAT WIRE RH (w/ Ottoman)

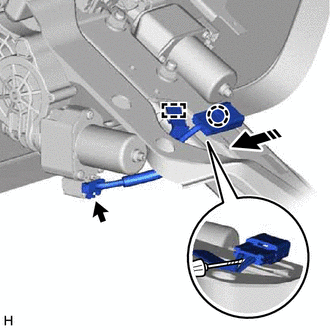

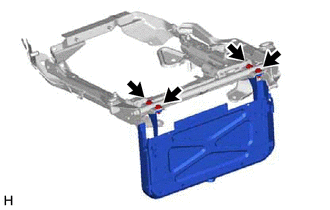

- REMOVE REAR SEAT LEG-REST ARM SUB-ASSEMBLY LH

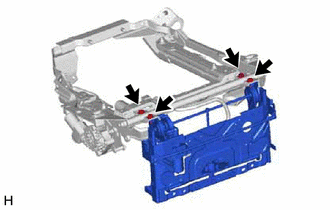

- REMOVE REAR SEAT LEG-REST ARM SUB-ASSEMBLY RH
- REMOVE NO. 1 SEATBACK CHECK VALVE WITH HOSE LH (w/ Refresh Seat)

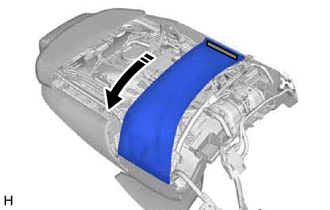

- Detach the fastening tape and fold back the separate type rear seatback cover LH.
Fastening Tape - Disconnect the connector.
- Detach the claw and connect the connector.
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the joint.

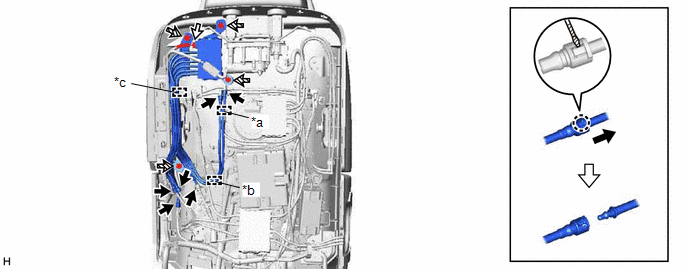

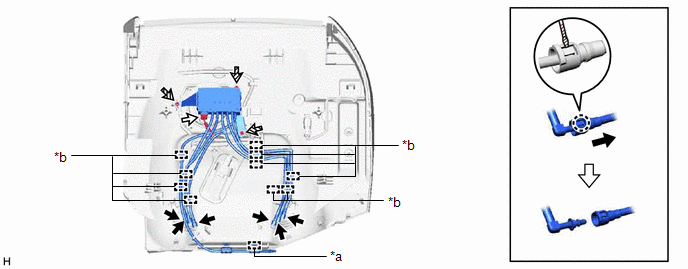

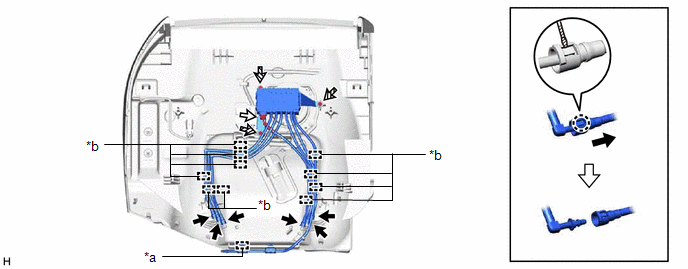

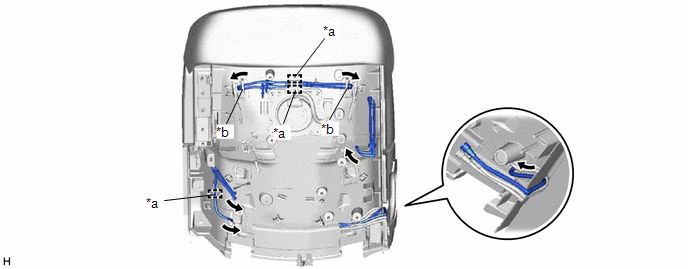

*a Clamp *b Hook *c Tube Clamp - - Joint Connector Clip Protective Tape - Remove the tube from the clamp.
- Remove the tube from the hook.
- Disconnect the connector.
- Remove the 4 clips.
- Detach the tube clamp and remove the No. 1 seatback check valve with hose LH.
- Detach the fastening tape and fold back the separate type rear seatback cover LH.
- REMOVE NO. 1 SEATBACK CHECK VALVE WITH HOSE RH (w/ Refresh Seat)
HINT:
Use the same procedure described for the LH side.

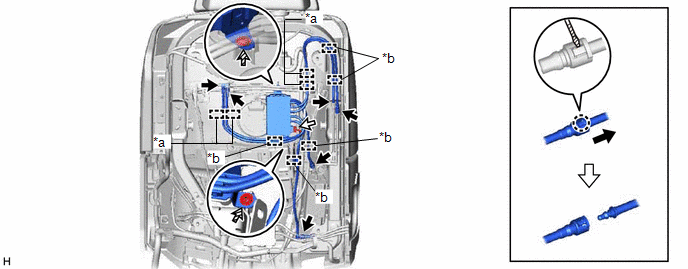

- REMOVE NO. 2 SEATBACK CHECK VALVE WITH HOSE LH (w/ Refresh Seat)
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claws and disconnect the joint.

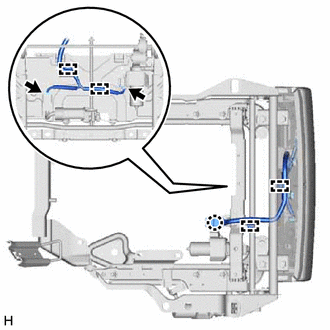

*a Clamp *b Tube Clamp Joint Connector Clip Protective Tape - Remove the tube from the clamps.
- Detach the tube clamps and remove the tube.
- Disconnect the connector.
- Remove the 2 screws and No. 2 seatback check valve with hose LH.
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claws and disconnect the joint.
- REMOVE NO. 2 SEATBACK CHECK VALVE WITH HOSE RH (w/ Refresh Seat)
HINT:
Use the same procedure described for the LH side.

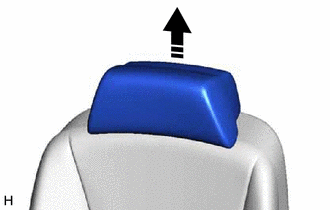

- REMOVE REAR SEAT HEADREST ASSEMBLY LH
- REMOVE REAR SEAT HEADREST ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

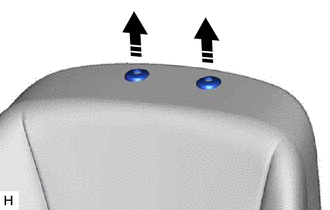

- REMOVE REAR SEAT HEADREST SUPPORT
HINT:
Use the same procedure for the LH and RH sides.

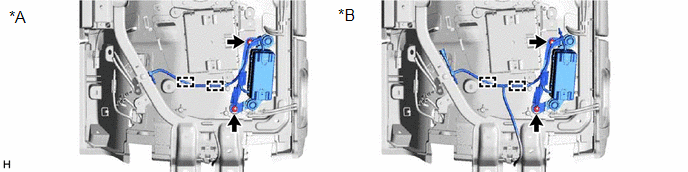

- REMOVE SEATBACK CHECK VALVE WITH BRACKET LH

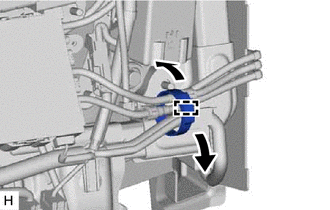

- Detach the claw and remove the clamp.
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the joint.

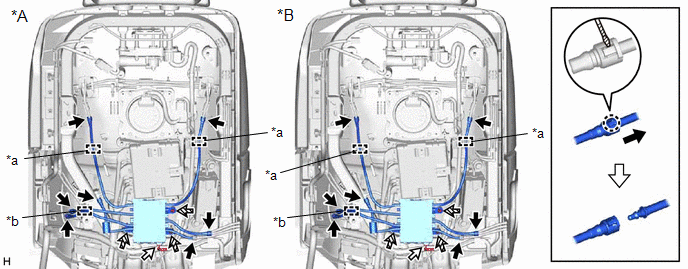

*A w/o Refresh Seat *B w/ Refresh Seat *a Clamp *b Tube Clamp Joint Connector Screw - - - Remove the tube from the clamp.
- Detach the tube clamp and remove the tube.
- Disconnect the connector.
- Remove the 3 screws and seatback check valve with bracket LH.
- Detach the claw and remove the clamp.
- REMOVE SEATBACK CHECK VALVE WITH BRACKET RH
HINT:
Use the same procedure described for the LH side.

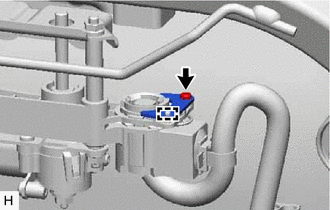

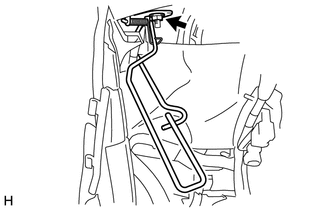

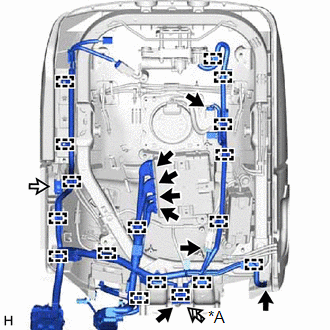

- REMOVE REAR SEAT WIRE LH
- Detach the hook.
Remove the nut and wire frame.
- w/o Refresh Seat:
*A w/ Refresh Seat Rear Seat Airbag Assembly LH Connector - Disconnect the 8 connectors.
- w/ Refresh Seat:
- Disconnect the 9 connectors.
- Disconnect the connector of the rear seat airbag assembly LH.

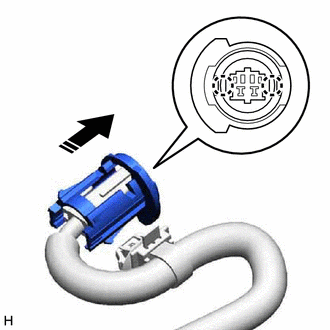

- Push down the white housing lock and slide the yellow CPA.
*a Housing Lock *b CPA NOTE:- Do not pull while holding the wire harness.
- Do not try to release the lock while holding down the top of the CPA (A in the illustration), as this prevents the lock from being released.
- Slide the yellow CPA while pushing down the white housing lock again, and disconnect the connector.
- Push down the white housing lock and slide the yellow CPA.
- Detach the wire harness clamp.
- Detach the hook.
- Remove the screw.
- Detach the guide and remove the plate.

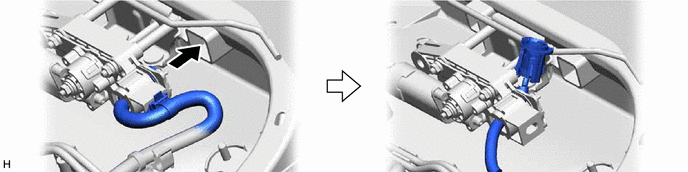

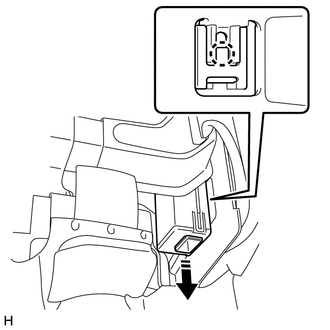

- Pull out the connector holder from the rear No. 2 seat headrest adjuster.
- Detach the claw and remove the connector holder.
Remove in this Direction - Pull out the connector from the No. 2 rear seat headrest adjuster and remove the rear seat wire LH.
Remove in this Direction
- Detach the hook.
- REMOVE REAR SEAT WIRE RH
HINT:
Use the same procedure described for the LH side.
- REMOVE LUMBER SUPPORT PUMP SUB-ASSEMBLY LH
- REMOVE LUMBER SUPPORT PUMP SUB-ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

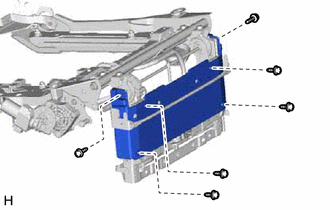

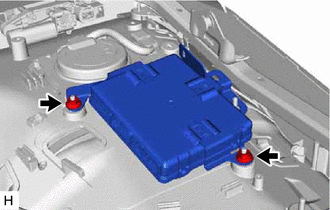

- REMOVE POSITION CONTROL ECU ASSEMBLY LH
- REMOVE POSITION CONTROL ECU ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

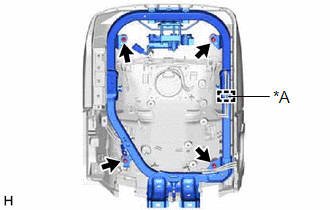

- REMOVE REAR SEATBACK MAIN FRAME SUB-ASSEMBLY LH
- REMOVE REAR SEATBACK MAIN FRAME SUB-ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
- REMOVE REAR NO. 2 SEAT HEADREST ADJUSTER SUB-ASSEMBLY
- REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY
HINT:
Use the same procedure described for the rear No. 2 seat headrest adjuster sub-assembly.
- REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY LH
- REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

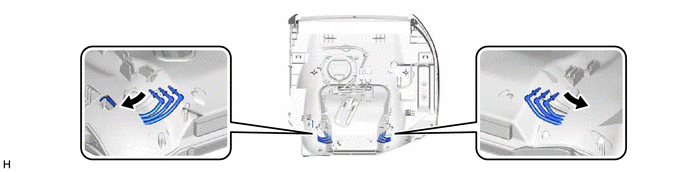

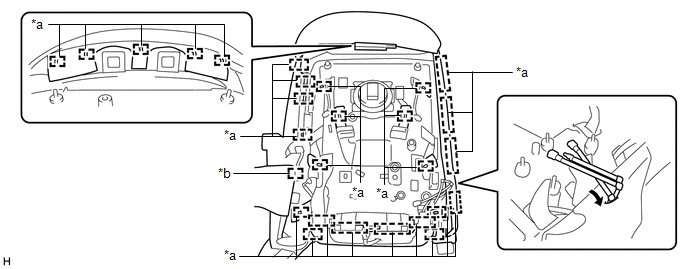

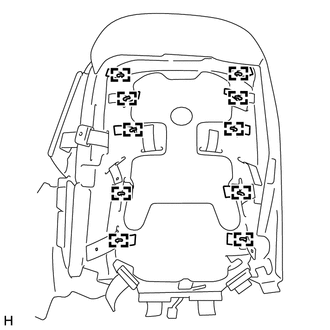

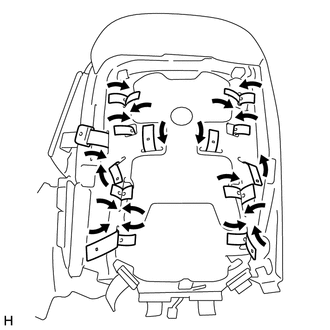

- REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD LH
- Detach the hook.

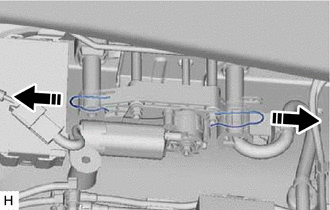

*a Hook *b Wire Harness Clamp - Pull out the tube from the separate type rear seatback cover LH.
- Detach the wire harness clamp.
- Remove the nut and the 2 brackets of the separate type rear seatback cover LH.

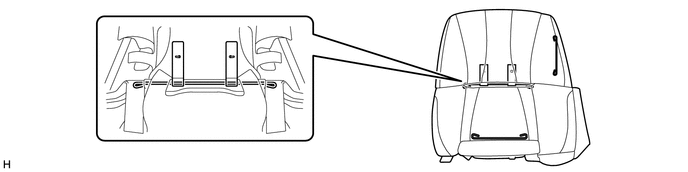

Remove in this Direction (1) Remove in this Direction (2) - Pull out the strap and bracket of the separate type rear seatback cover LH from the hole of the rear seat sub panel sub-assembly LH.
- w/ Refresh Seat:

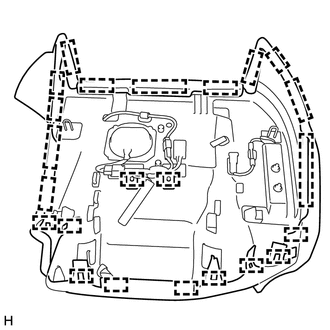

- Remove the separate type rear seatback cover with pad LH from the rear seat sub panel sub-assembly LH.
- Detach the hook.
- REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH
HINT:
Use the same procedure described for the LH side.
- REMOVE SEPARATE TYPE REAR SEATBACK COVER LH
- REMOVE SEPARATE TYPE REAR SEATBACK COVER RH
HINT:
Use the same procedure described for the LH side.
- REMOVE SEAT COVER WIRE
- REMOVE REAR SEAT AIRBAG ASSEMBLY LH
Refer to PROCEDURE - Step 5 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 5 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 5 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 5 [10/2023 - ]
- REMOVE REAR SEAT AIRBAG ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

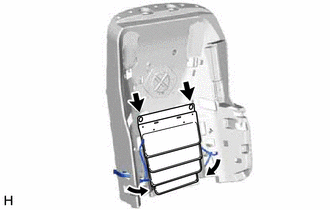

- REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
- REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

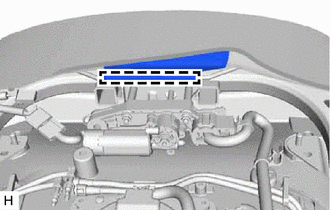

- REMOVE REAR SEATBACK SUPPORT LH
- REMOVE REAR SEATBACK SUPPORT RH
HINT:
Use the same procedure described for the LH side.
- REMOVE REAR CENTER NO. 2 SEAT ARMREST PANEL SUB-ASSEMBLY

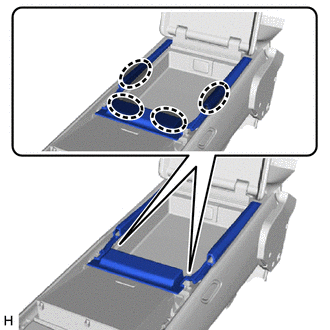

- REMOVE REAR CENTER NO. 2 SEAT ARMREST PANEL
- REMOVE REAR POWER SEAT SWITH WITH BRACKET
- REMOVE REAR CENTER SEAT ARMREST BRACKET LH
- REMOVE REAR CENTER SEAT ARMREST BRACKET RH
- REMOVE REAR CENTER SEAT ARMREST COVER
- REMOVE REAR POWER SEAT SWITCH

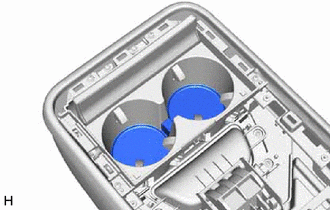

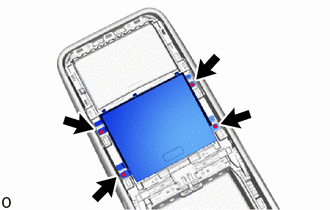

- REMOVE REAR CENTER SEAT CUP HOLDER TRAY

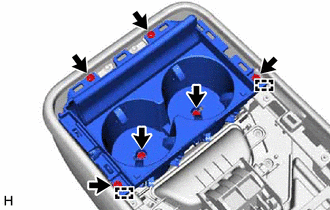

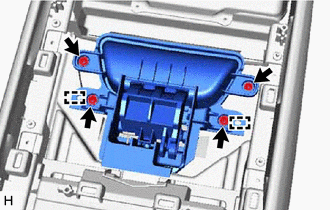

- REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY

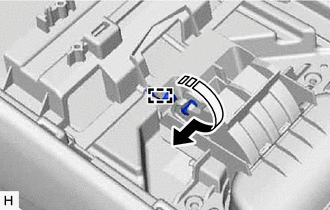

- REMOVE CENTER ARMREST LOCK SUB-ASSEMBLY
- REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY

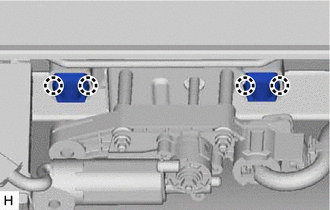

- Using a clip remover, remove the 2 console compartment door hinge shafts.
- Slide the rear center seat armrest door sub-assembly in the removal direction (1) shown in the illustration and detach the hinge.
Remove in this Direction (1) Remove in this Direction (2) - Remove the rear center seat armrest door sub-assembly in the removal direction (2) shown in the illustration.
- Using a clip remover, remove the 2 console compartment door hinge shafts.

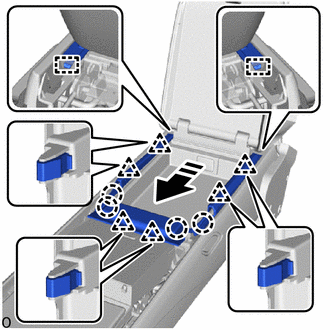

- REMOVE REAR CENTER NO. 2 SEAT ARMREST BOX
- Apply protective tape to the rear center No. 2 seat armrest box to prevent damage.
Incline in this Direction Remove in this Direction Protective tape - Insert a thin-bladed screwdriver with its tip wrapped with protective tape and push the HDMI cable cover toward the front of the vehicle.
- Detach the claw and disconnect the wire harness from the HDMI cable cover.
- Disconnect the 3 connectors.

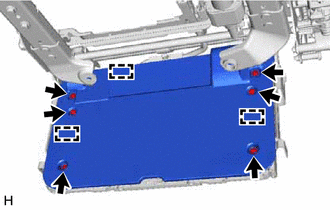

- Remove the 6 screws.
- Tilt the rear center No. 2 seat armrest box in the direction indicated by the arrow shown in the illustration.
Remove in this Direction - Remove the rear center No. 2 seat armrest box as shown in the illustration.
Remove in this Direction
- Apply protective tape to the rear center No. 2 seat armrest box to prevent damage.
- REMOVE HEADPHONE TERMINAL (w/ Rear Seat Entertainment System)
- for LH Side:
Refer to PROCEDURE - Step 21 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 21 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 21 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 21 [10/2023 - ]
- for RH Side:
Refer to PROCEDURE - Step 20 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 20 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 21 [10/2023 - ]
- for LH Side:
- REMOVE USB CHARGER SOCKET
Refer to PROCEDURE - Step 22 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 22 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 22 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]
- REMOVE CENTER ARMREST LOCK SUB-ASSEMBLY

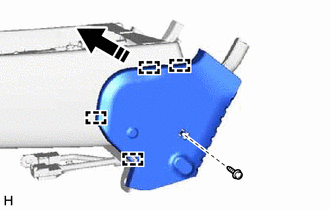

- REMOVE CENTER ARMREST HINGE COVER LH
- REMOVE CENTER ARMREST HINGE COVER
HINT:
Use the same procedure described for the center armrest hinge cover LH.
