Removal [12/2017 - 09/2018]: Procedure

  1. PRECAUTION
    WARNING:
    • Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
      GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [12/2017 - 10/2020]

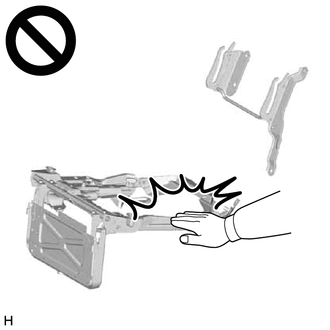

    • Wear protective gloves. Sharp areas on the parts may injure your hands.
      GTY796630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • There is risk of injury.
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [12/2017 - 10/2020]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal.

      Refer to PROCEDURE - Step 3

      WARNING:
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

        Refer to PRECAUTION [12/2017 - 10/2020]

      • If an SRS part is accidentally deployed, it may cause a serious injury.
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [12/2017 - 09/2018]

  4. REMOVE REAR SEAT CUSHION ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR SEAT CUSHION ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 7

  7. REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH

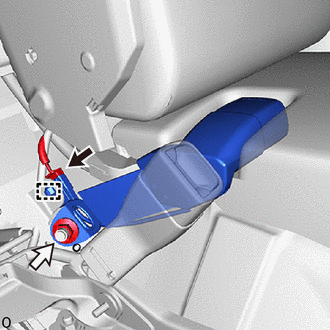

    1. Disconnect the connector and detach the clamp.
      GTY831179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Nut
    2. Remove the nut and rear center seat lap type belt assembly RH.
  8. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  10. REMOVE REAR NO. 2 SEAT ADJUSTER ASSEMBLY

    Refer to PROCEDURE - Step 11

  11. REMOVE REAR NO. 1 SEAT ADJUSTER ASSEMBLY

    Refer to PROCEDURE - Step 12

  12. REMOVE REAR SEAT INNER BELT ASSEMBLY LH

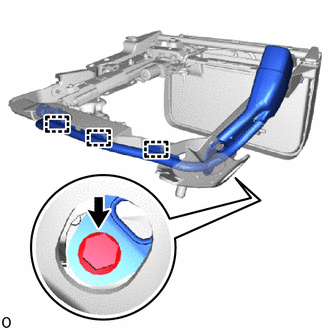

    1. Detach the wire harness clamp.
      GTY816681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and rear seat inner belt assembly LH.
  13. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

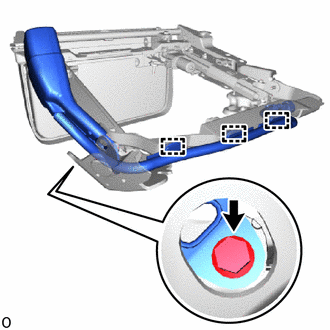

    1. Detach the wire harness clamp.
      GTY816676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and rear seat inner belt assembly RH.
