Installation [07/2020 - 05/2023]: Procedure

  1. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
    1. Check that the engine switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      • If the airbag deploys for any reason, it may cause a serious accident.

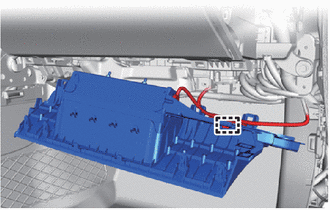

    3. Attach the clamp.
      GTY963302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the airbag connector.
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector:

      Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [07/2020 - 05/2023]

    5. Attach the claw to install the lower No. 2 instrument panel airbag assembly.
      GTY819613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

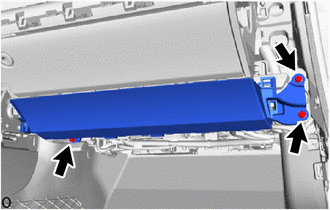

    6. Install the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      GTY787122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  3. INSTALL BOX PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  4. INSTALL UPPER CONSOLE BOX

    Refer to PROCEDURE - Step 6

  5. INSTALL SHIFTING HOLE COVER ASSEMBLY

    Refer to PROCEDURE - Step 9

  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. INSTALL RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 5

  8. INSTALL CONSOLE PLATE

    Refer to PROCEDURE - Step 6

  9. INSTALL NO. 2 GLOVE COMPARTMENT PANEL

    Refer to PROCEDURE - Step 17 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 17 [10/2022 - 05/2023]

  10. INSTALL NO. 1 GLOVE COMPARTMENT PANEL

    Refer to PROCEDURE - Step 29 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 29 [10/2022 - 05/2023]

  11. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 05/2023]

  12. INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER RH

    Refer to PROCEDURE - Step 32 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 32 [10/2022 - 05/2023]

  13. INSTALL FRONT DOOR OPENING TRIM COVER RH

    Refer to PROCEDURE - Step 33 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - 05/2023]

  14. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 35 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - 05/2023]

  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [07/2020 - 05/2023]

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [07/2020 - 05/2023]

  16. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [07/2020 - ]

  17. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [07/2020 - ]
