Installation [07/2020 - 05/2023]: Procedure

  1. INSTALL REAR UPPER CONSOLE PANEL
    1. Attach the guide and claw to install the rear upper console panel.
      GTY963235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 screws.
      GTY964324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SLIDING ROOF SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL RADIO SETTING PARTS SET
    1. Install the radio setting parts set with the 4 screws.
      GTY787735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REMOTE OPERATION CONTROLLER ASSEMBLY
    1. Install the remote operation controller assembly with the 4 screws.
      GTY964328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RADIO REMOTE TUNING SWITCH ASSEMBLY

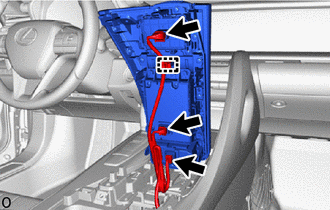

    1. Attach the clamp.
      GTY964326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 3 connectors.

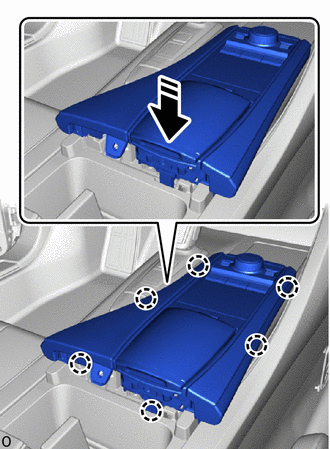

    3. Attach the claw to install the radio remote tuning switch assembly in the direction of the arrow shown in the illustration.
      GTY964046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

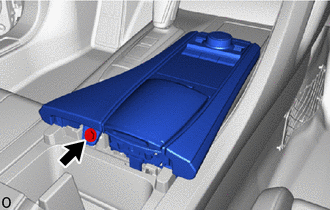

    4. Install the screw.
      GTY963998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CONSOLE PLATE

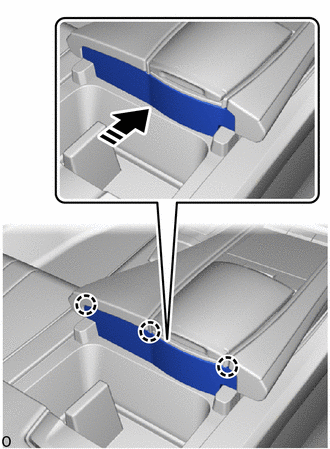

    1. Attach the claw and guide to install the console plate as shown in the illustration.
      GTY963489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
