Installation [07/2020 - ]: Procedure

  1. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Install the shift lever knob sub-assembly.

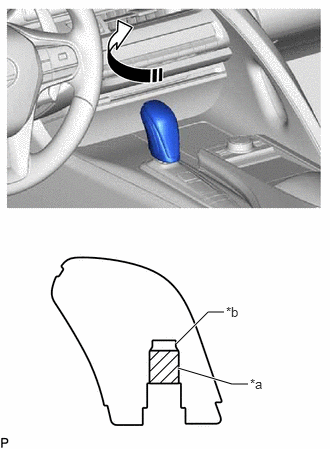

      GTY778748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Threaded Portion
      *b Non-threaded Portion
      Turn
      1. Turn the shift knob sub-assembly until rotation becomes difficult.
        NOTE:

        When rotation becomes difficult, the shift lever assembly (shaft) has reached the non-threaded portion on the inside of the shift lever knob sub-assembly.

      2. From there, tighten by one turn.
      3. In addition, align shift lever knob sub-assembly to the front and rear direction of the vehicle.
