Installation [07/2020 - 05/2023]: Procedure
- INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
- Check that the engine switch is off.
- Check that the cable is disconnected from the negative (-) battery terminal.WARNING:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
- Connect the airbag connector.NOTE:
When connecting any airbag connector, take care not to damage the airbag wire harness.
HINT:
Refer to How to Connect or Disconnect Airbag Connector:
Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [07/2020 - 05/2023]

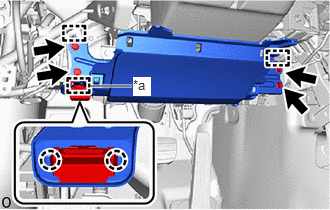

- Attach the claw to connect the DLC3.
*a Wire Harness Clamp - Attach the wire harness clamp.
- Attach the hook to temporarily install the lower No. 1 instrument panel airbag assembly.
- Install the 4 bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Check that there is no looseness in the lower No. 1 instrument panel airbag assembly.
- INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 25 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - 05/2023]
- INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 26 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - 05/2023]
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 30 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 05/2023]
- INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER LH
Refer to PROCEDURE - Step 31 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - 05/2023]
- INSTALL FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 33 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - 05/2023]
- INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 35 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - 05/2023]
- INSTALL BOX PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
- INSTALL UPPER CONSOLE BOX
Refer to PROCEDURE - Step 6
- INSTALL SHIFTING HOLE COVER ASSEMBLY
Refer to PROCEDURE - Step 9
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL RADIO REMOTE TUNING SWITCH ASSEMBLY
Refer to PROCEDURE - Step 5
- INSTALL CONSOLE PLATE
Refer to PROCEDURE - Step 6
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [07/2020 - 05/2023]
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [07/2020 - 05/2023]
- PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [07/2020 - ]
- CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [07/2020 - ]
