- REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP ASSEMBLY

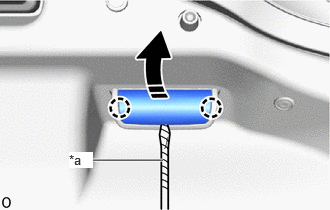

- Using a screwdriver, detach the claw of the cover in the direction indicated by the arrow in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Protective Tape |
 |
Open in this Direction |
HINT:
Tape the screwdriver tip before use.

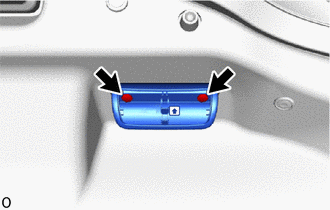

- Using a 5 mm hexagon socket wrench, remove the 2 screws and luggage compartment door assist grip assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE LUGGAGE COMPARTMENT DOOR COVER
- Using a clip remover, remove the 10 clips and luggage compartment door cover.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE SATELLITE RADIO ANTENNA ASSEMBLY (w/ Mayday System)
Refer to PROCEDURE - Step 3
- REMOVE NO. 2 AMPLIFIER ANTENNA ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE CENTER STOP LIGHT WIRE
Refer to PROCEDURE - Step 3
- REMOVE CENTER STOP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE SYMBOL EMBLEM
Refer to PROCEDURE - Step 1
- REMOVE REAR TELEVISION CAMERA ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE LUGGAGE COMPARTMENT DOOR HOUSING
HINT:
When removing the luggage compartment door housing, heat the luggage compartment door housing using a heat light.
Standard
| Item |
Temperature |
| Luggage Compartment Door Housing |
20 to 30°C (68 to 86°F) |
WARNING:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Heated Part |
| *b |
Heat Light |
- Detach the adhesional surface of the double-sided tape.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Double-sided Tape |
- Remove the luggage compartment door housing.
- Clean the luggage compartment door.
- REMOVE LUGGAGE DOOR LOCK PROTECTOR
See step 1
- REMOVE LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY
See step 2
- REMOVE NO. 1 DECK BOARD

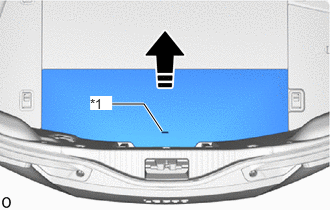

- Lift up the strap and remove the No. 1 deck board.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Strap |
|
Remove in this Direction |

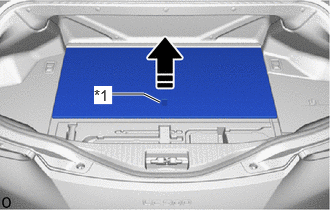

- REMOVE NO. 2 DECK BOARD
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Strap |
|
Remove in this Direction |
Lift up the strap and remove the No. 2 deck board.
- REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

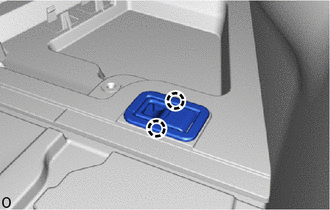

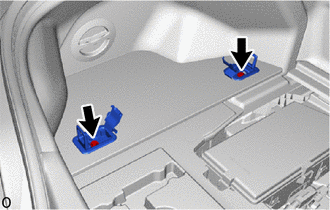

- Detach the claw and open the rope hook assembly cap.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

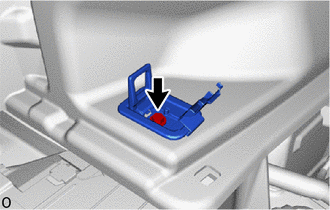

- Remove the 2 bolts and 2 rope hook assemblies.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

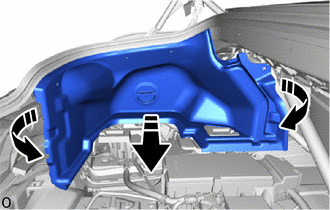

- Pull the entire luggage compartment trim cover LH to the rear while bending inward (in the direction of the arrow) to remove it.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Place hand here |
|
Remove in this Direction |

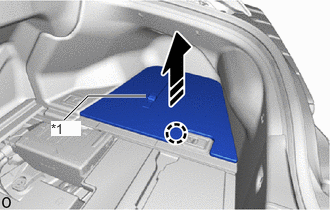

- REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Strap |
|
Remove in this Direction |

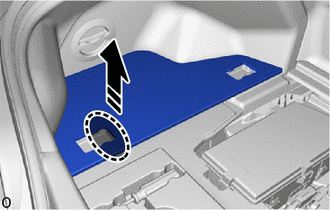

Detach the claw and lift up the strap, remove the luggage compartment trim cover RH.
- REMOVE SIDE TRIM BOX
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Detach the claw and open the rope hook assembly cap.
- Remove the bolt and rope hook assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the clip and remove the side trim box.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE REAR FLOOR FINISH PLATE
- Using a clip remover, remove the 3 clips.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

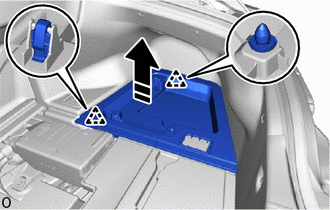

- Detach the clip and guide and remove the rear floor finish plate.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |

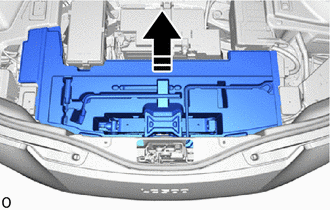

- REMOVE LUGGAGE COMPARTMENT TRIM BOX
- Remove the luggage compartment trim box as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Remove the 7 clips.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |

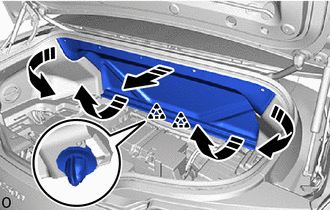

Detach the clip and remove the entire front luggage compartment trim cover while bending it inward (in the direction of the arrow).
- REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

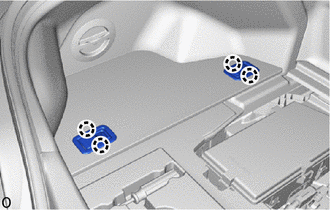

Remove the 4 clips.
- Remove the entire No. 2 luggage compartment trim cover while bending it inward (in the direction of the arrow).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

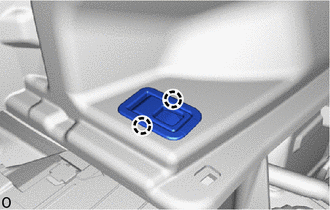

Detach the claw and open the rope hook assembly cap.

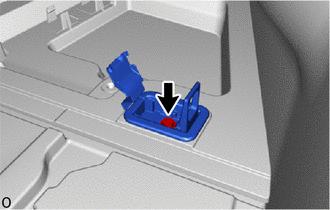

- Remove the bolt and rope hook assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

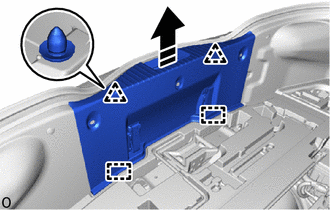

Remove the 4 clips and No. 1 luggage compartment trim cover.
- REMOVE NO. 4 LUGGAGE ROOM WIRE
- Detach the clamp.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the claw and remove the wire harness grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the connector and remove the No. 4 luggage room wire.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 5 ANTENNA CORD SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- INSTALL LUGGAGE COMPARTMENT DOOR PANEL CUSHION
- Detach the claw and remove the luggage compartment door panel cushion.
HINT:
Use the same procedure described for the otherside.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
