Removal [07/2020 - 05/2023]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP ASSEMBLY

    Refer to PROCEDURE - Step 1 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 05/2023]

  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 05/2023]

  3. REMOVE TELEVISION CAMERA ASSEMBLY

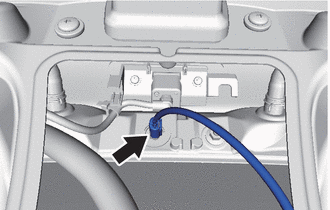

    1. Disconnect the connector.
      GTY952196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

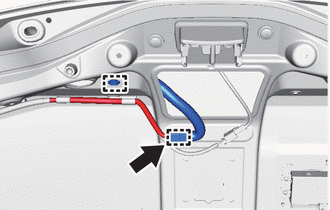

    2. Disconnect the connector.
      GTY952176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the wire harness clamp.
    4. Remove the 2 screws.
      GTY826596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Detach the clip and remove the rear television camera assembly.
