Removal [07/2020 - ]: Procedure

Refer to PROCEDURE - Step 1 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]

Refer to PROCEDURE - Step 2 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

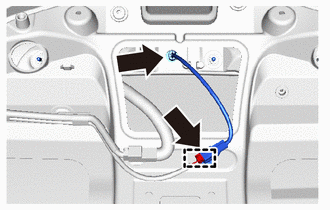

1. Using a clip remover, detach the connector clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Connector

2. Detach the 2 connectors and remove the center stop light wire.

1. Apply protective tape around the center stop light assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

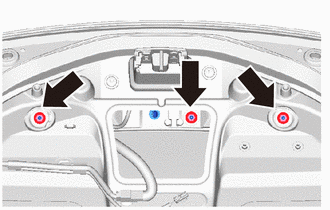

2. Remove the 3 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Detach the 2 pins of the center stop light assembly from the clip, remove the center stop light assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Pin

   -

   -

4. Remove the 3 collars.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the collars has been removed, replace it with a new one.

5. Remove the clips.
   NOTE:

   • Perform this step only when replacement of the clips are necessary
   • If the clips has been removed, replace it with a new one.

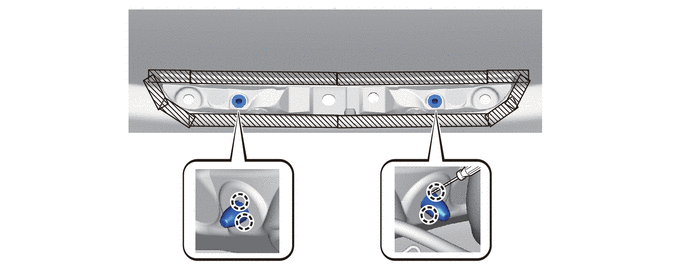

   1. Using a screw driver, detach the claw and remove the 2 clips.

      HINT:

      Tape the screwdriver tip before use.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Protective Tape

      -

      -
