Removal [07/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP ASSEMBLY

    Refer to PROCEDURE - Step 1 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]

  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  3. REMOVE SATELLITE RADIO ANTENNA ASSEMBLY

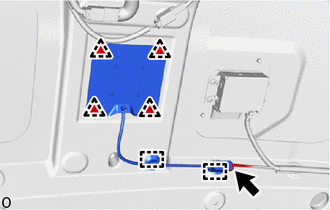

    1. Disconnect the connector and detach the clamp.
      GTY963312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and remove the satellite radio antenna assembly.
