Removal [07/2020 - ]: Procedure

  1. REMOVE CONSOLE PLATE

    Refer to PROCEDURE - Step 1 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]

  2. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  4. REMOVE SHIFTING HOLE COVER ASSEMBLY

    Refer to PROCEDURE - Step 4 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

  5. REMOVE UPPER CONSOLE BOX

    Refer to PROCEDURE - Step 7 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 7 [05/2023 - ]

  6. REMOVE BOX PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 15 [05/2023 - ]

  7. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 9 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 9 [05/2023 - ]

  8. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 11 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 11 [05/2023 - ]

  9. REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 13 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 13 [05/2023 - ]

  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 15 [05/2023 - ]

  11. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 23 [05/2023 - ]

  12. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 24 [05/2023 - ]

  13. REMOVE LIGHT CONTROL RHEOSTAT (TRIP SWITCH)

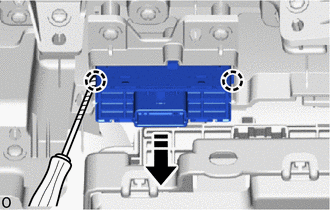

    1. GTY805020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Protective Tape

      Using a thin-bladed screwdriver, detach the claw and remove the light control rheostat (trip switch).

      HINT:

      Tape the thin-bladed screwdriver tip before use.
