Removal [07/2020 - 05/2023]: Procedure

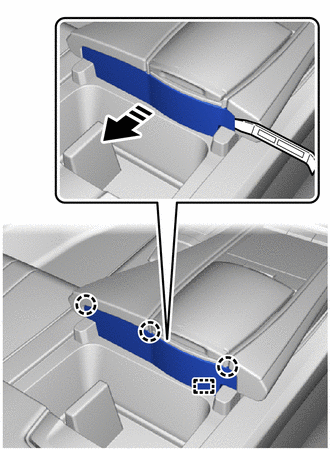

1. Using a clip remover A, detach the claw and guide and remove the console plate as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

1. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

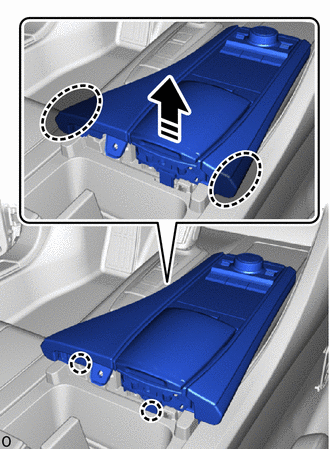

2. Hold the area shown in the illustration using both hands and detach the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hands Here
   	Remove in this Direction

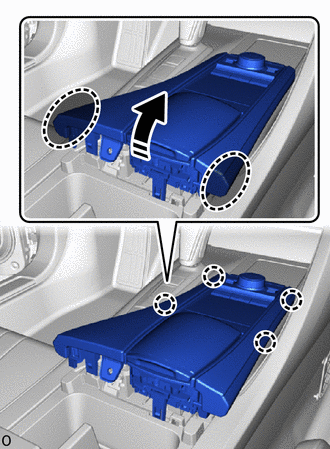

3. Hold the area shown in the illustration using both hands and detach the claw in the direction of the arrow shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hands Here
   	Remove in this Direction

4. Disconnect the 3 connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Detach the clamp and remove the radio remote tuning switch assembly.

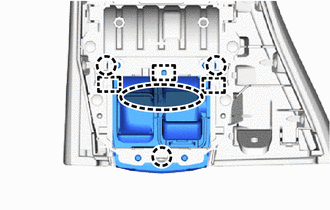

1. Remove the 4 screws and remote operation controller assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 screws and radio setting parts set.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2

1. Remove the 4 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. While pressing the area shown in the figure with your finger, detach the claw and guide and remove the rear upper console panel.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Press with finger here
