Removal [07/2020 - 05/2023]: Procedure
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 9 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 05/2023]
- REMOVE FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 11 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 05/2023]
- REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER LH
Refer to PROCEDURE - Step 13 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 05/2023]
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 15 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - 05/2023]
- REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
Refer to REMOVAL [07/2020 - ]
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE SHIFTING HOLE COVER ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE UPPER CONSOLE BOX
Refer to PROCEDURE - Step 7
- REMOVE NO. 1 GLOVE COMPARTMENT PANEL
Refer to PROCEDURE - Step 16 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 05/2023]
- REMOVE BOX PANEL SUB-ASSEMBLY
- Remove the 3 bolts and 2 screws.

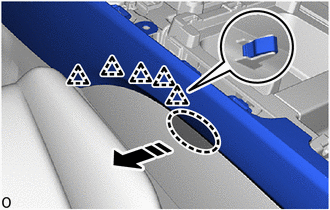

Bolt Screw - Hold the area shown in the illustration and detach the clip while pulling towards the exterior of the vehicle.

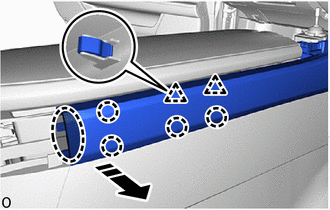

Place Hands Here Remove in this Direction - Hold the area shown in the illustration and detach the clip while pulling towards the exterior of the vehicle.

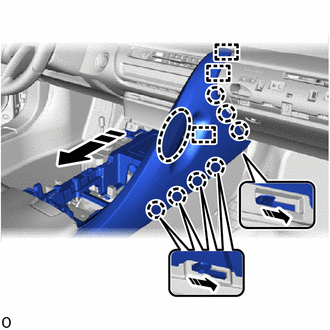

Place Hands Here Remove in this Direction - Hold the area shown in the illustration, detach the claw and remove the box panel sub-assembly.
Place Hands Here Remove in this Direction
- Remove the 3 bolts and 2 screws.
- REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

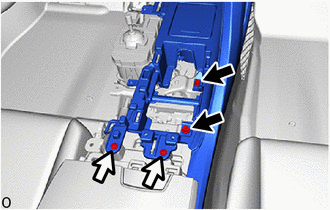

- Move the front seat (RH side) to the rearmost position and remove the 2 bolts and 2 screws.

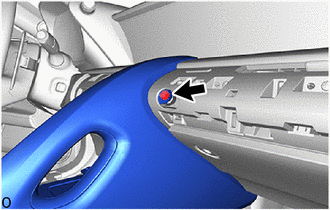

Bolt Screw - Remove the bolt.

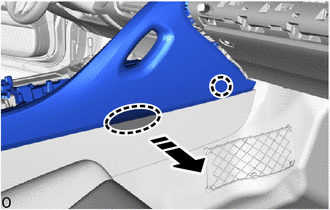

- Fold the front seatback (RH side) forward, hold the area shown in the illustration and detach the clip and claw while pulling towards the exterior of the vehicle.

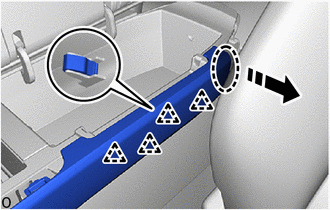

Place Hands Here Remove in this Direction - Hold the area shown in the illustration while pulling it towards, the rear of the vehicle, detach the claw and then pull out the guide from the instrument panel.

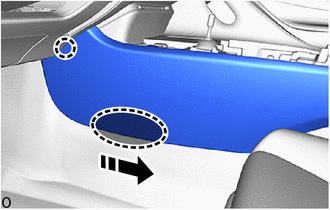

Place Hands Here Remove in this Direction - Return the front seatback (RH side) to the original position, hold the area shown in the illustration and detach the claw while pulling towards the exterior of the vehicle.

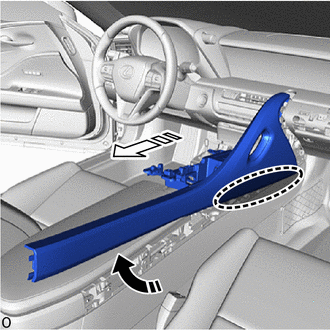

Place Hands Here Remove in this Direction - Pull diagonally to the upper rear of the vehicle as indicated by the arrows shown in the illustration to remove the upper console panel sub-assembly.NOTE:
A portion of the claw is inserted into mating hole. Therefore, hold the area shown in the illustration and remove it while lifting the claw towards the outside of the vehicle.
Place Hands Here Remove in this Direction (1) Remove in this Direction (2)
- Move the front seat (RH side) to the rearmost position and remove the 2 bolts and 2 screws.
- REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 18 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - 05/2023]
- REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 05/2023]
- REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 05/2023]
- REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

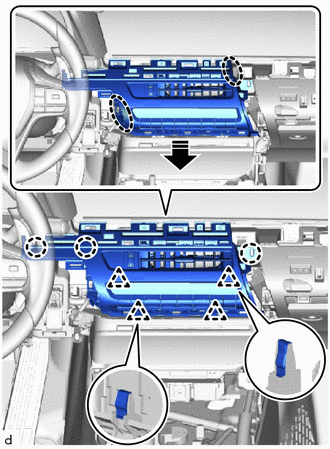

- Place your hand at the position shown in the illustration and pull the integration control and panel assembly towards the rear of the vehicle to detach the claw and clip and remove it.
Place Hands Here Remove in this Direction - Using a thin-bladed screwdriver, detach the clamp and disconnect the 3 connectors.
- Place your hand at the position shown in the illustration and pull the integration control and panel assembly towards the rear of the vehicle to detach the claw and clip and remove it.
