Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [05/2023 - ]

  3. REMOVE CONSOLE PLATE
    1. Using a moulding remover A, detech the claw and guide and remove the console plate as shown in the illustration.
      GTY1241689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY
    1. Remove the screw.
      GTY1242404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Hold the area shown in the illustration using both hands and detach the claw.
      GTY1241880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    3. Hold the area shown in the illustration using both hands and detach the claw in the direction of the arrow shown in the illustration.
      GTY1242104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    4. Disconnect the 4 connectors.
      GTY1243340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the clamp and remove the radio remote tuning switch assembly.
  5. REMOVE PATTERN SELECT SWITCH

    Refer to PROCEDURE - Step 3

  6. REMOVE REFRESHING SEAT SWITCH

    Refer to PROCEDURE - Step 3

  7. REMOVE SWITCH AND VOLUME SET
    1. Remove the 4 screws.
      GTY1243342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the switch and volume set.
  8. REMOVE SLIDING ROOF SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 3

  9. REMOVE REAR UPPER CONSOLE PANEL
    1. Remove the 4 screws.
      GTY964324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

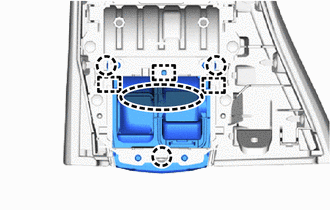

    2. While pressing the area shown in the figure with your finger, detach the claw and guide and remove the rear upper console panel.
      GTY1243458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Press with finger here
  10. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  11. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

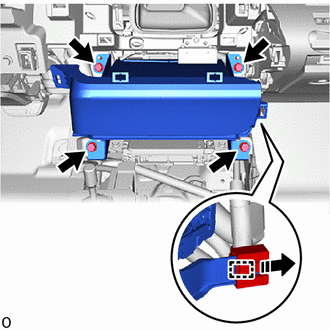

    1. Remove the 4 bolts.
      GTY1242146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Pull out the radio receiver assembly with bracket.
    3. Detach the clamp as indicated by the arrows in the shown in the illustration.
    4. Disconnect each connector and remove the radio receiver assembly with bracket.
  12. REMOVE LOWER INSTRUMENT COVER
    1. Remove the 2 screws.
      GTY1242436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and guide and remove the lower instrument cover.
  13. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 3 screws and No. 1 radio bracket.
      GTY1242433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 3 screws and No. 2 radio bracket.
      GTY1242933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIO RECEIVER ASSEMBLY
